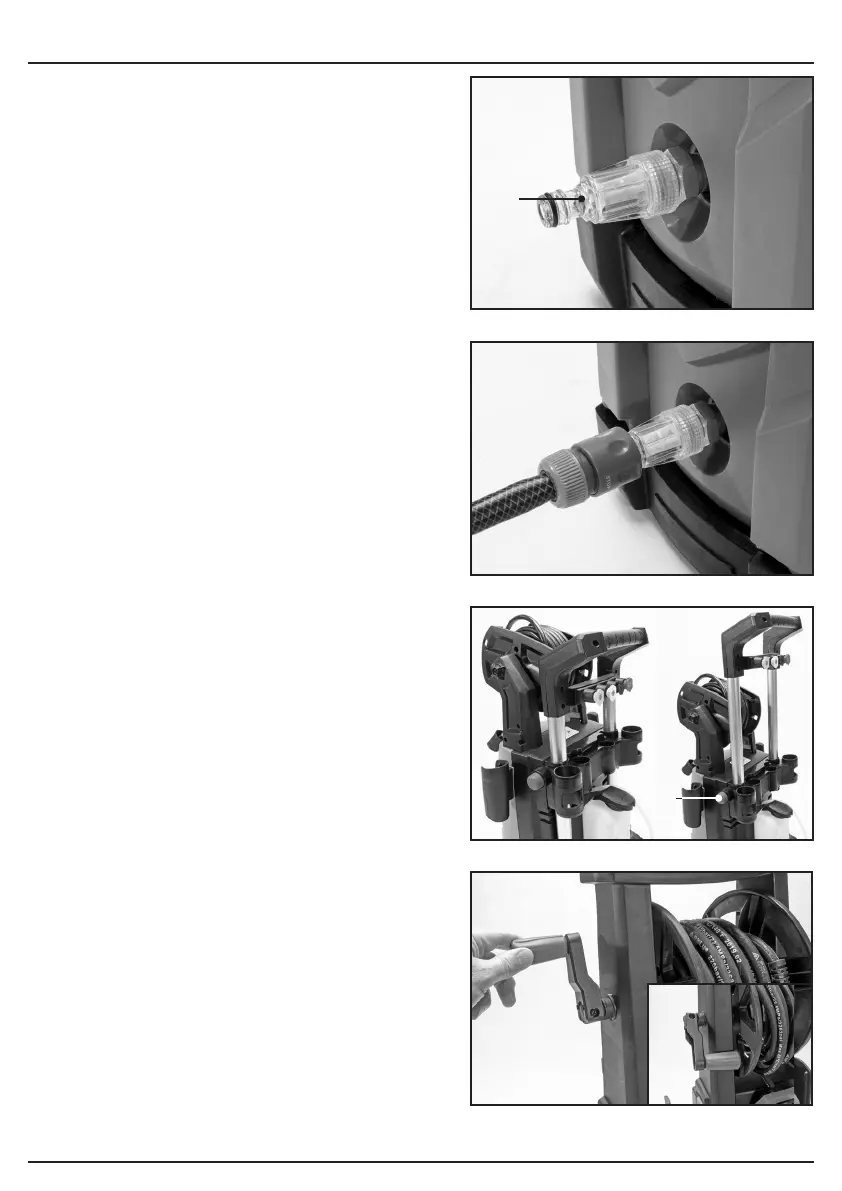

8. ASSEMBLY
8.6 ATTACHING THE WATER SUPPLY
- FIGS. 9 - 10
Screw the supplied water inlet adaptor (19) to the
water inlet taking care not to cross the threads.
To connect the pressure washer to the water
supply, a push fit hose connector will be required.
Ensure the connector is correctly fitted to the hose
and that a ‘click’ is heard when attaching to the
machine.
NOTE: Max. water temp: 50°C.
Always observe local bye-laws and regulations.
8.7 TELESCOPIC HANDLE
ADJUSTMENT (98678 ONLY) - FIG. 11
98678 has a telescopic handle, allowing for
adjustment in height. To adjust the height of the
handle press the button (20) at the side of the
pressure washer and move handle. Release button
once at required position.
8.8 HOSE REEL - FIG. 12
The hose reel handle on both machines can be
folded in for storage, and turned out when required
for use, as shown.
