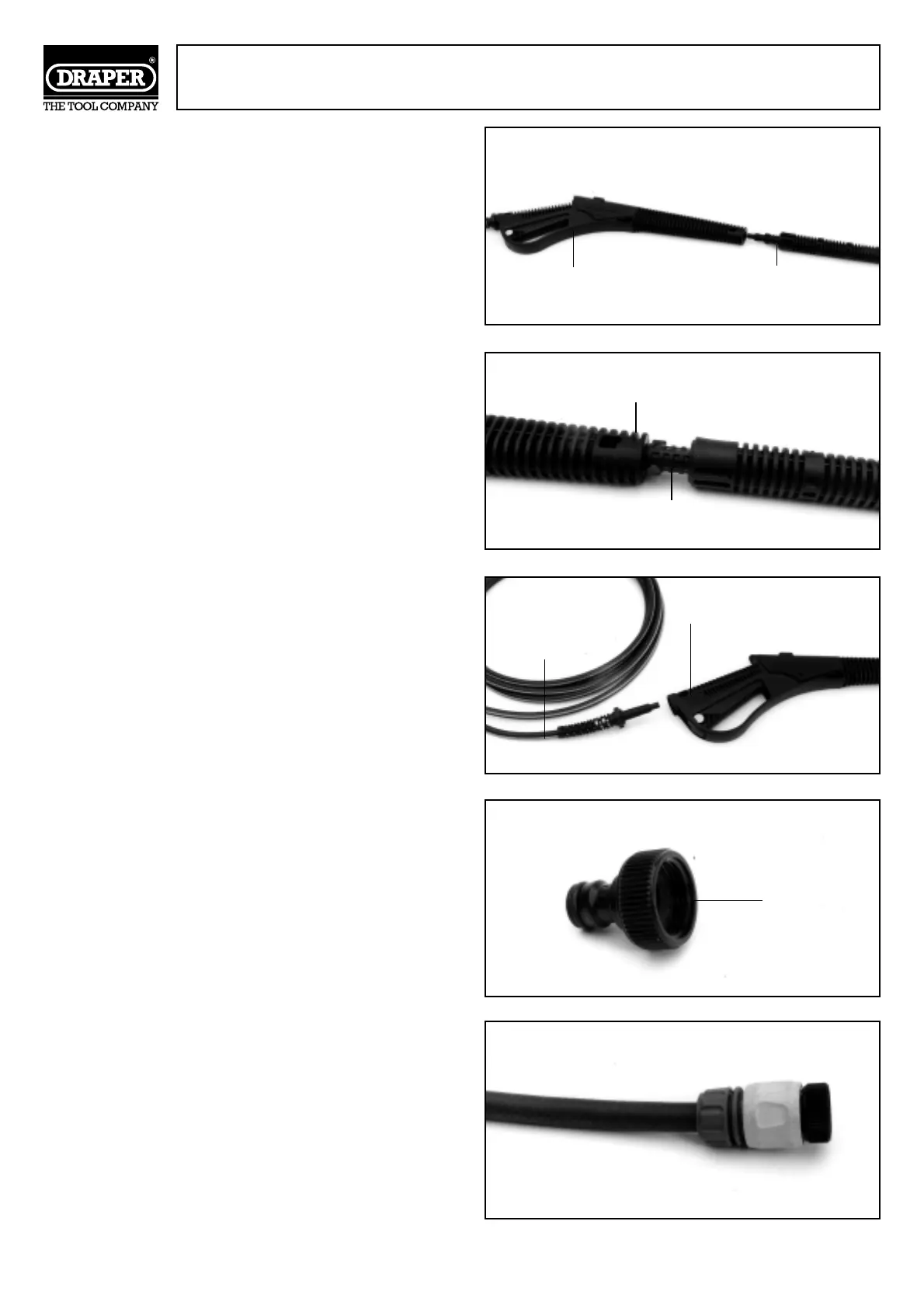

ASSEMBLY
- 8 -
1. Secure the lance nozzle assembly $Fig.2.
into the handle assembly %by locating the
male connector &on the lance into the female
connector 'in the handle and turning as
shown in Fig.3.
3. Now from the loose parts supplied with the
pressure washer locate the hose pipe connector
) Fig.5. The hose pipe should be fitted to
connector ) using a suitable female hose
coupling clip (not supplied). See Fig.6.
IMPORTANT - DO NOT LOSE THE RUBBER
SEALING WASHER WHICH IS SUPPLIED WITH
THE CONNECTOR.
2. Now repeat the operation and secure the high
pressure output hose ( to the handle
assembly %Fig.4.
Fig.2.
Fig.3.
Fig.4.
Fig.5.
Fig.6.
%
$
'
&
%
(
)
