CUTTING OPERATIONS

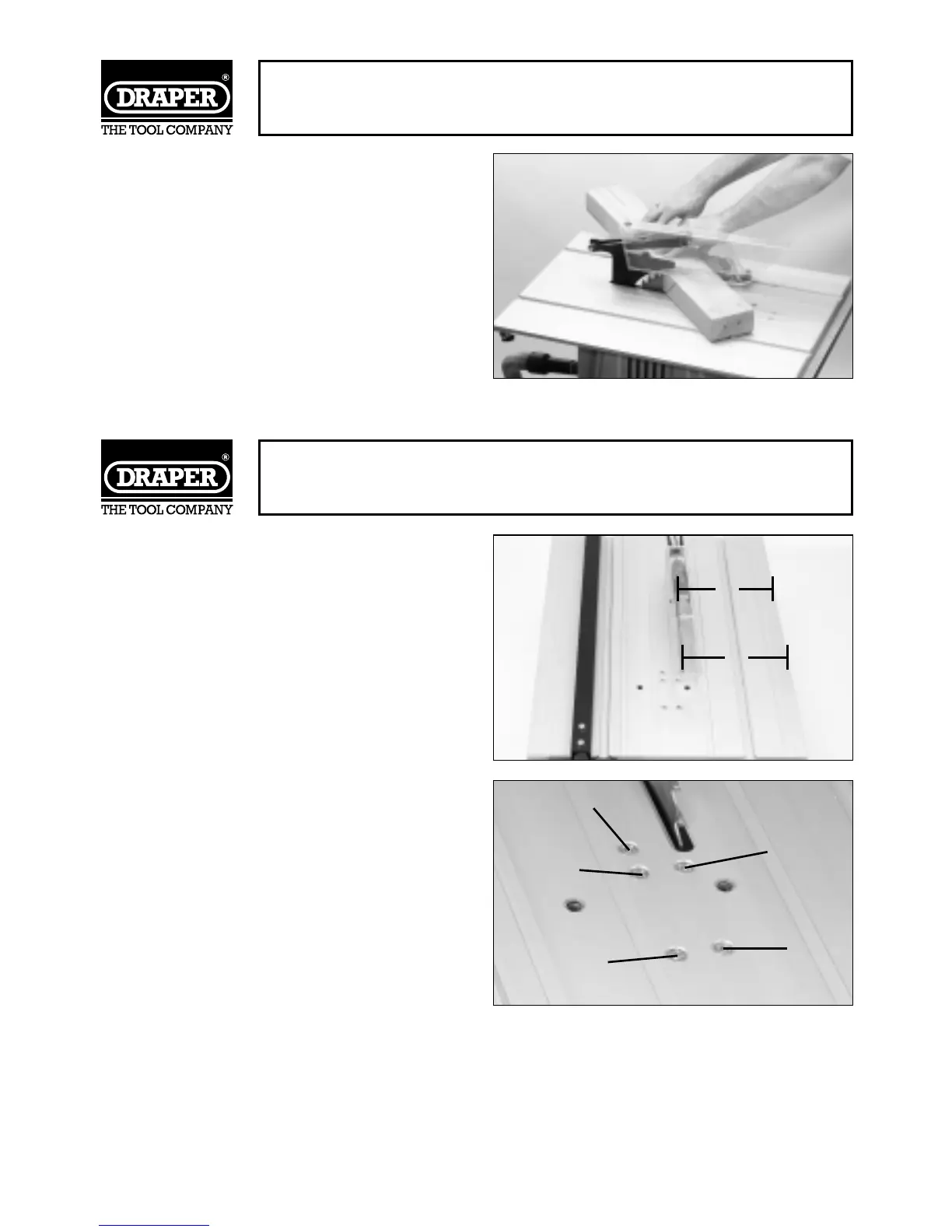

MITRE CUTTING (Fig.21):
This operation is the same as cross cutting except the mitre
is locking at any angle other than 90°.
COMPOUND MITRE CUTTING:
This is a combination of bevel cross cutting and mitre
cutting. It is very infrequently used. Follow the instructions
for both mitre cutting and bevel cross cutting.
Fig.21.
MAINTENANCE
CHECKING THE BLADE PARALLELISM
(Fig.22):
This check should be carried out before each use
and adjusted if necessary
Ensure the saw is switched off and the plug is
removed from the power supply. Using a steel
ruler (Draper Stock No.12614), measure the
distance✪✌ and the distance ✫✌. If the two
distances differ, the blade is not completely
parallel and requires adjusting.
ADJUSTING THE BLADE PARALLELISM
(Fig.23):
This can be quite a confined adjustment. If
difficulty is encountered, have a qualified Draper
repair agent carry out the work.
Loosen ✬✌, ✭✌, ✮✌, ✯✌ and ✰✌ screws and
nuts. Adjust the blade and remeasure once all the
fixings have been secured.
When complete and before carrying out any test
cuts, ensure all the fixings are tight.
Fig.22.
✪✌
Fig.23.
✭✌
✬✌
✮✌
✰✌
✯✌
✫✌
