Draper TABLE SAW - Getting to Know Your Table Saw

- 6 -
GETTING TO KNOW YOUR
TABLE SAW
1. Work Table 7. Dust Extraction Port
2. Blade 8. Rip Fence
3. Blade Guard 9. Mitre Guide
4. Anti-Kick Back Pawls 10. Saw Blade Adjustment
5. No-volt On/Off Switch 11. Adjustment Locking Knob
6. Overload Protection 12. BS Non-rewireable Plug & Cable
✕✌
✢✌
✖✌
✕✕✌
✜✌
✕✖✌
✘✌
✗✌
✙✌
✛✌
✚✌
✕✔✌

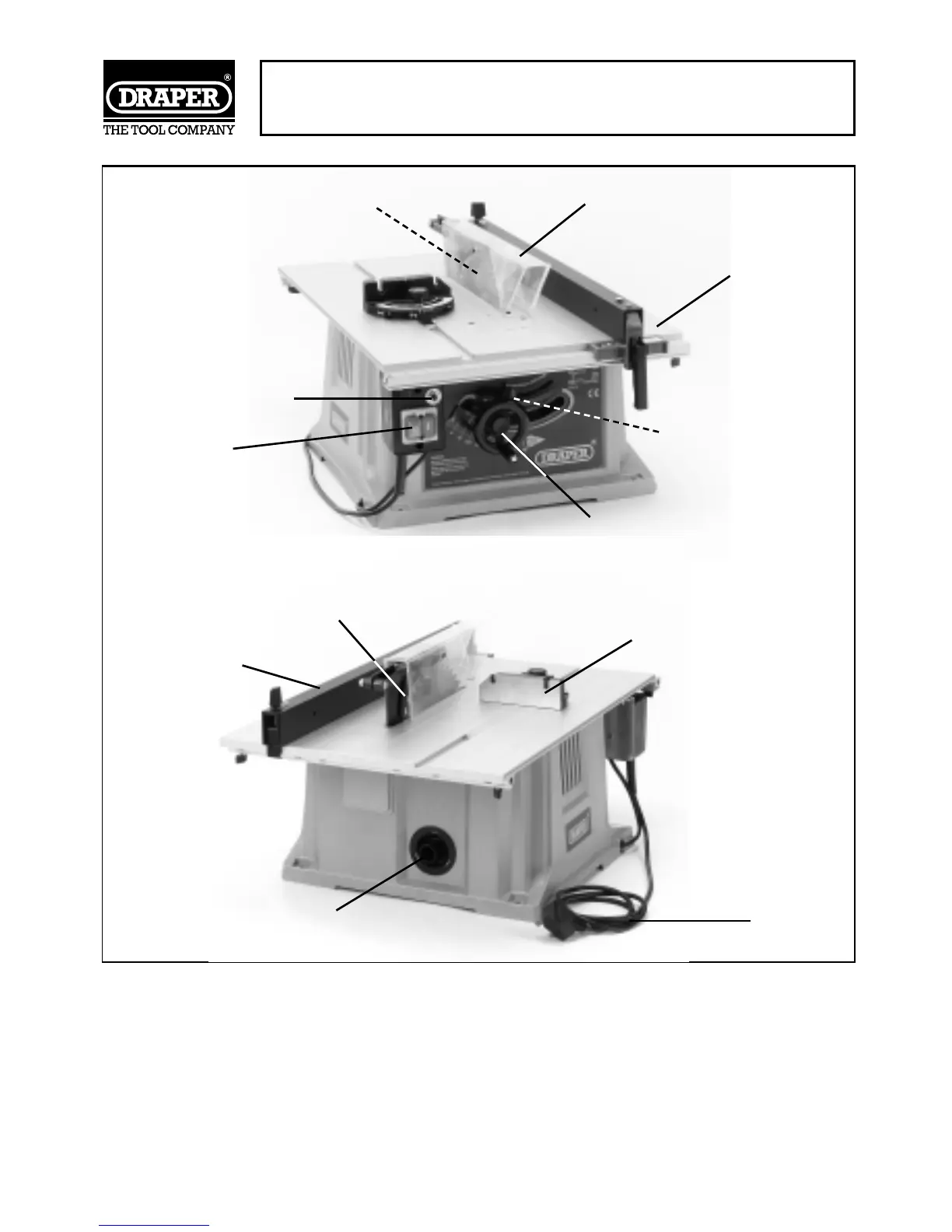

Fig.1 - FRONT VIEW
BACK VIEW
Fig.1.
