Draytek Vigor 2927 Series - Panel Explanation; 2.1 Vigor2927 L

2
2
2
.
.
P
P
a
a
n
n
e
e
l
l
E
E
x
x
p
p
l
l
a
a
n
n
a
a
t
t
i
i
o
o
n
n
2
2
.
.
1
1
V
V
i
i
g
g
o
o
r
r
2
2
9
9
2
2
7
7
L
L

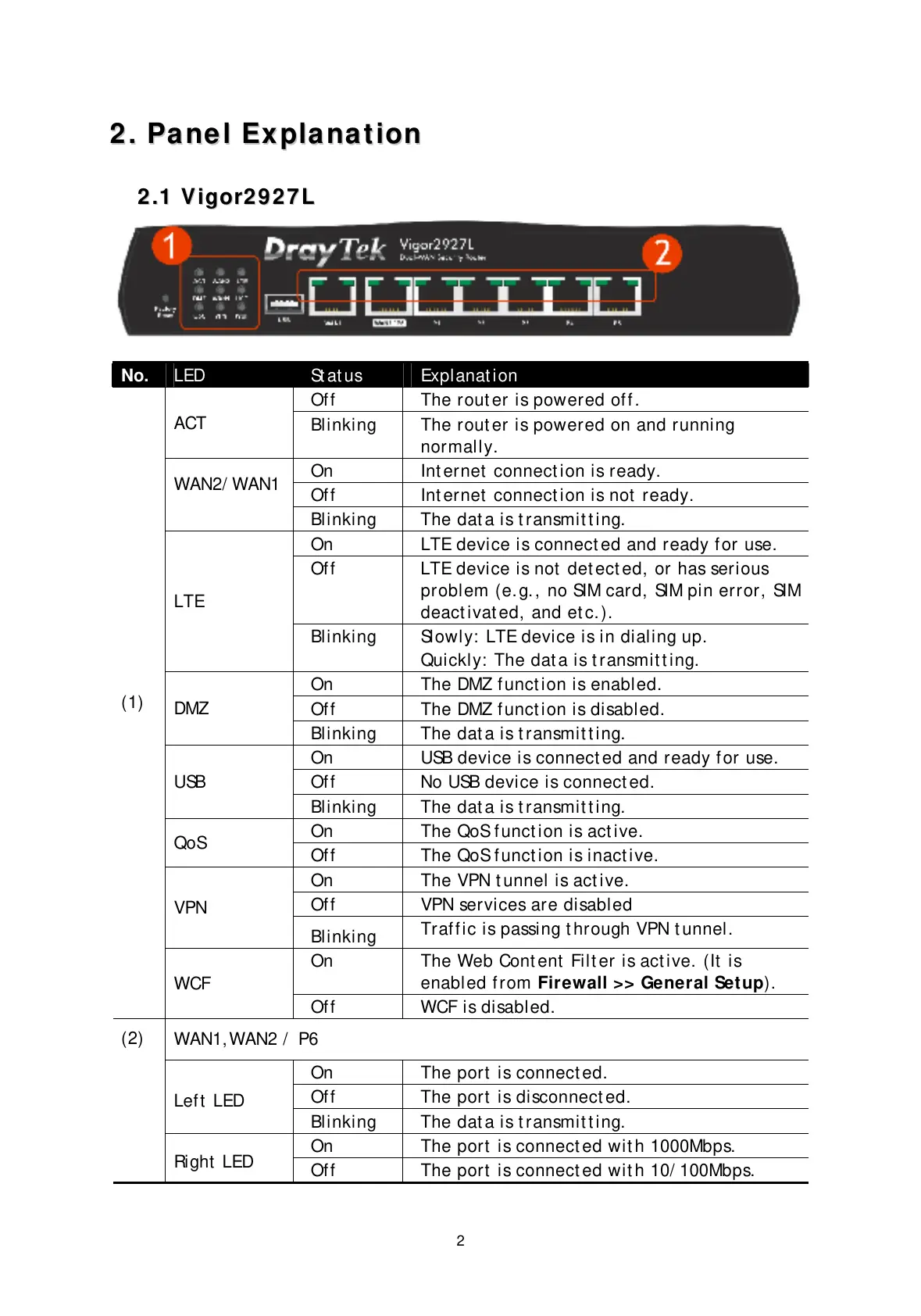

No. LED St at us Explanat ion
Off The rout er is powered off .
ACT
Blinking The rout er is powered on and running
normally.
On Int ernet connect ion is ready.
Off Int ernet connect ion is not ready.
WAN2/ WAN1
Blinking The dat a is t ransmit t ing.
On LTE device is connect ed and ready f or use.
Off LTE device is not det ect ed, or has serious
problem (e. g., no SIM card, SIM pin error, SIM
deact ivat ed, and et c.).
LTE
Blinking Slowly: LTE device is in dialing up.
Quickly: The dat a is t ransmit t ing.
On The DMZ f unct ion is enabled.
Off The DMZ f unct ion is disabled.
DMZ
Blinking The dat a is t ransmit t ing.
On USB device is connect ed and ready f or use.
Off No USB device is connect ed.
USB
Blinking The dat a is t ransmit t ing.
On The QoS f unct ion is act ive.
QoS
Off The QoS f unct ion is inact ive.
On The VPN t unnel is act ive.
Off VPN services are disabled
VPN
Blinking
Traf f ic is passing t hrough VPN t unnel.
On The Web Cont ent Filt er is act ive. (It is
enabled from Firewall >> General Setup).
(1)
WCF
Off WCF is disabled.
WAN1, WAN2 / P6
On The port is connect ed.
Off The port is disconnect ed.
Lef t LED
Blinking The dat a is t ransmit t ing.
On The port is connect ed wit h 1000Mbps.
(2)
Right LED
Off The port is connect ed wit h 10/ 100Mbps.
