Vigor2912 Series User’s Guide
147

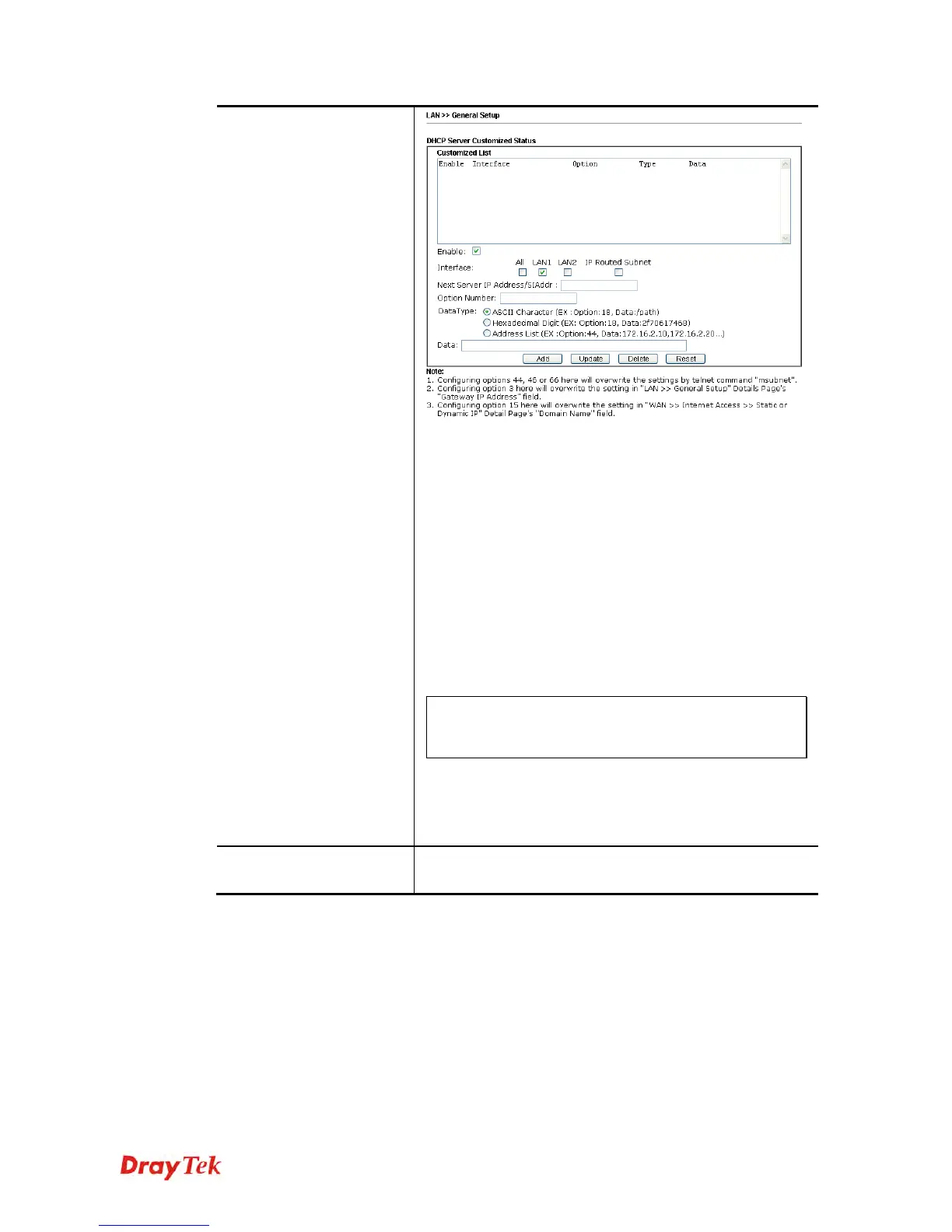

Enable – Check it to enable DHCP Option. Each DHCP
option is composed by an option number with data. For
example,
Option number:100
Data: abcd
When such function is enabled, the specified values for
DHCP option will be seen in DHCP reply packets.
Interface: Specify the WAN/LAN interface(s) that will be
overwritten by such function.
Next Server IP Address/SIAddr – Type the IP address of
PXE server which is helpful for downloading boot loader
via network.
Option Number – Type a number for such function.
Note: If you choose to configure option 61 here, the
detailed settings in WAN>>Interface Access will be
overwritten.
DataType – Choose the type (ASCII or Hex) for the data to
be stored.
Data – Type the content of the data to be processed by the
function of DHCP option.
Inter-LAN Routing
Check the box to link two different subnets (LAN1 and
LAN2).
After finished the above settings, click OK to save the settings.
