Vigor2912 Series User’s Guide
388
4
4
.
.
1
1
6
6
.
.
1
1
0
0
T
T
r
r
a
a
f
f
f
f
i
i
c
c
G
G
r
r
a
a
p
p
h
h

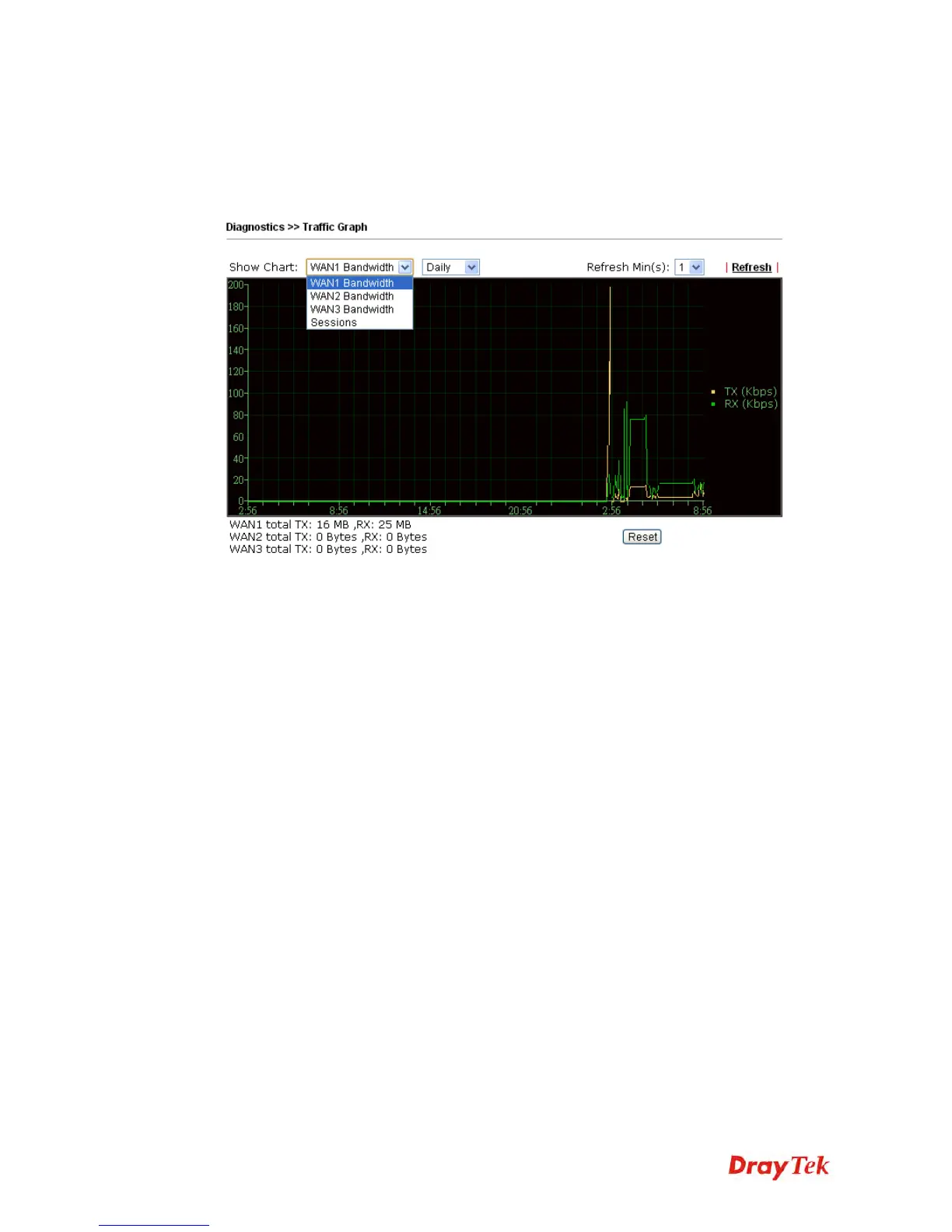

Click Diagnostics and click Traffic Graph to pen the web page. Choose
WAN1/WAN2/WAN3 Bandwidth, Sessions, daily or weekly for viewing different traffic
graph. Click Reset to zero the accumulated RX/TX (received and transmitted) data of WAN.
Click Refresh to renew the graph at any time.
The horizontal axis represents time. Yet the vertical axis has different meanings. For
WAN1/WAN2/WAN3 Bandwidth chart, the numbers displayed on vertical axis represent the
numbers of the transmitted and received packets in the past.
For Sessions chart, the numbers displayed on vertical axis represent the numbers of the NAT
sessions during the past.
