Vigor2912 Series User’s Guide
7
1
1
.
.
3
3
H
H
a
a
r
r
d
d
w
w
a
a
r
r
e
e
I
I
n
n
s
s
t
t
a
a
l
l
l
l
a
a
t
t
i
i
o
o
n
n

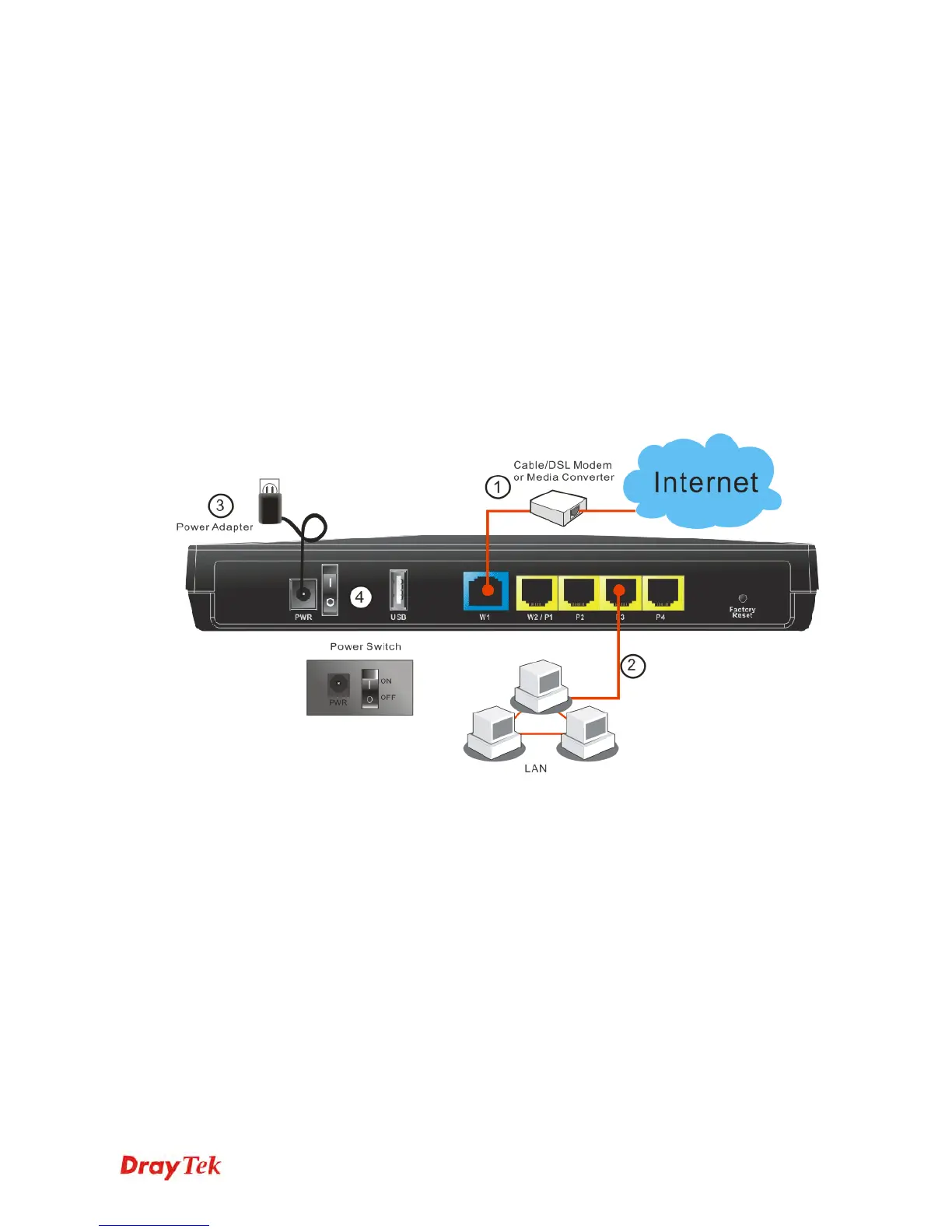

Before starting to configure the router, you have to connect your devices correctly.
1. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router
with Ethernet cable (RJ-45).
2. Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of the router and
the other end of the cable (RJ-45) into the Ethernet port on your computer.
3. Connect one end of the power adapter to the router’s power port on the rear panel, and
the other side into a wall outlet.
4. Power on the device by pressing down the power switch on the rear panel.
5. The system starts to initiate. After completing the system test, the ACT LED will light
up and start blinking.
(For the hardware connection, we take “n” model as an example.)

Draytek Vigor2912 Specifications

General

Brand	Draytek
Model	Vigor2912
Category	Wireless Router
Language	English
