15

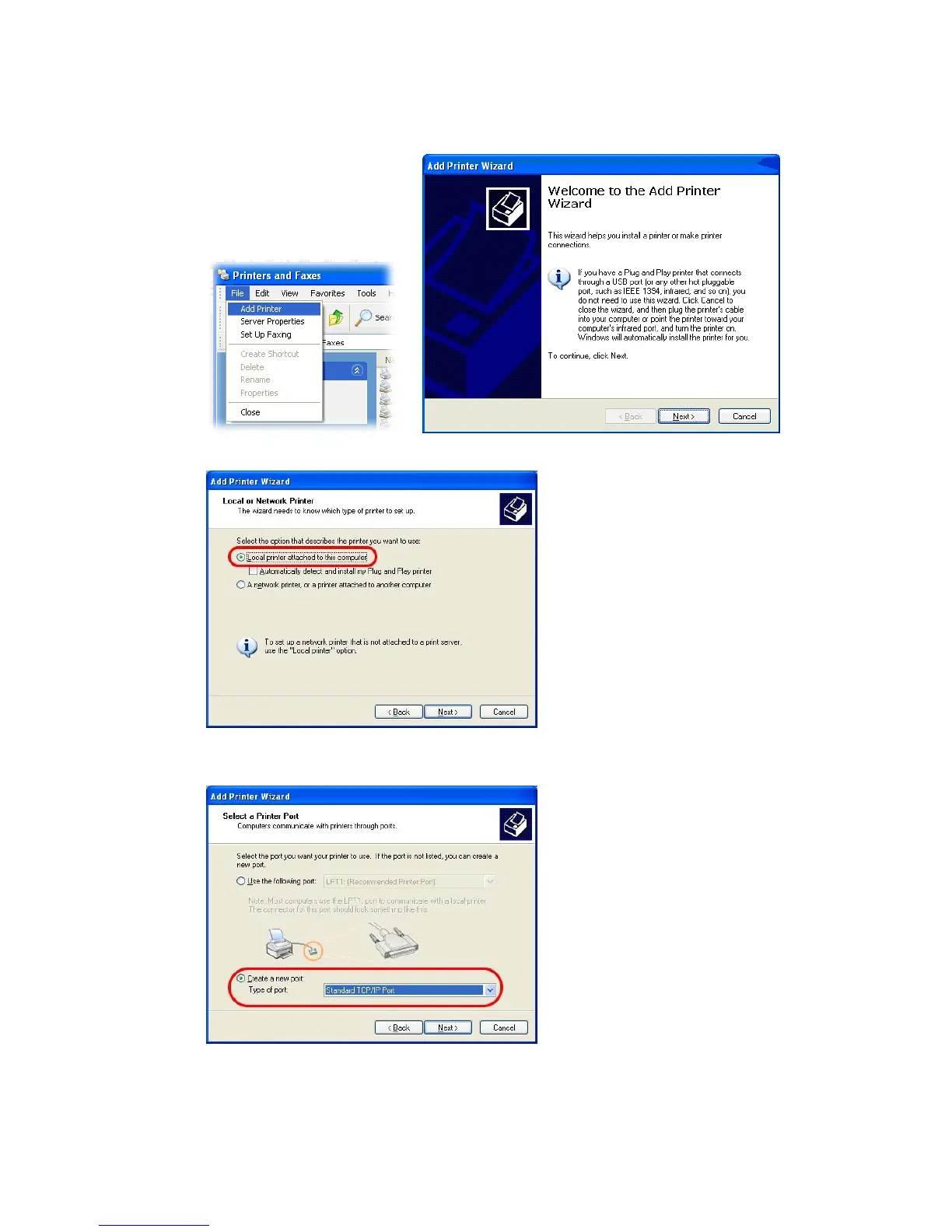

3. Open File->Add a New Computer. A welcome dialog will appear. Please click
Next.
4. Click Local printer attached to this computer and click Next.
5. In this dialog, choose Create a new port Type of port and use the drop down list to
select Standard TCP/IP Port. Click Next.
6. In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Printer
Name or IP Address and type IP_192.168.1.1 as the port name. Then, click Next.
