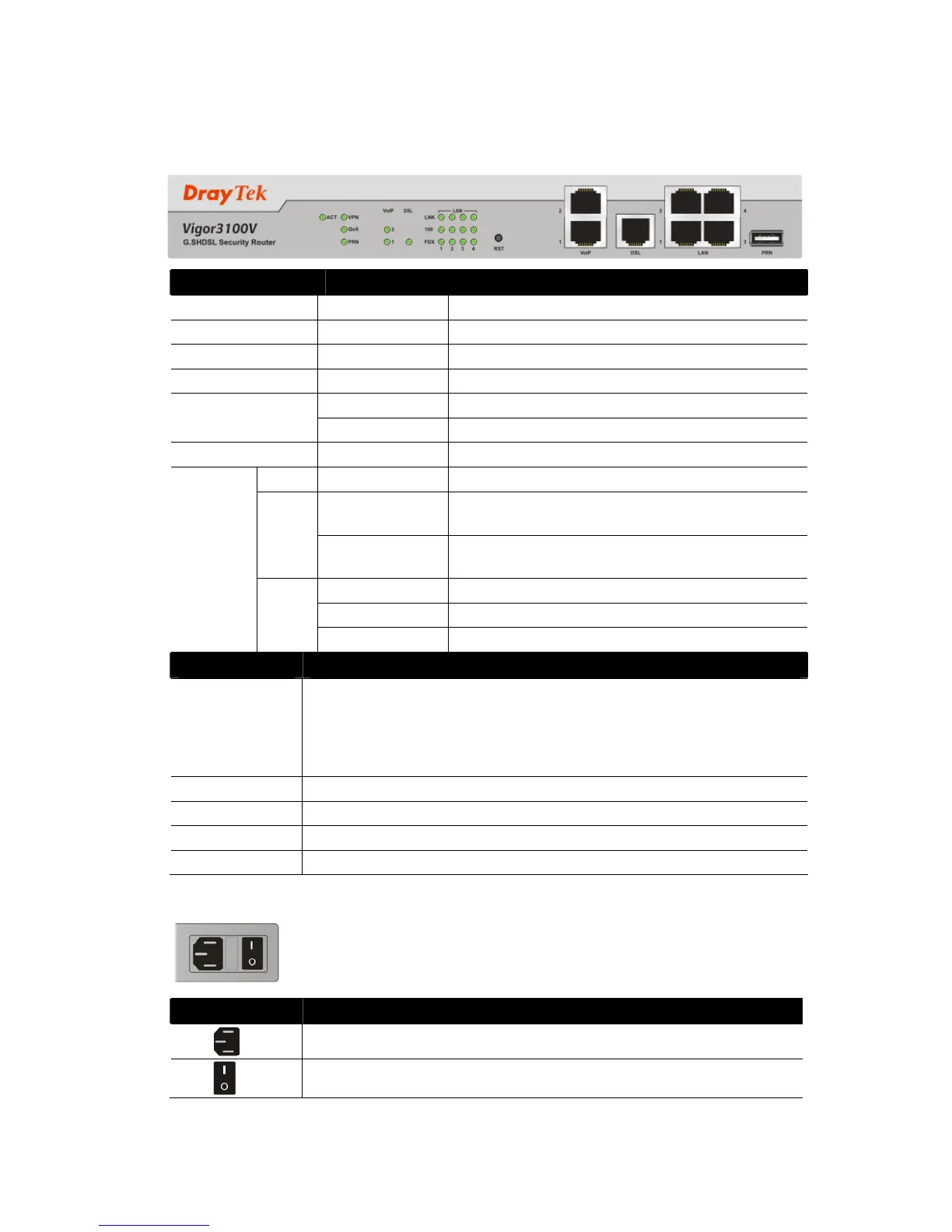

LED Status Explanation
ACT (Activity) Blinking The router is powered on and running properly.
VPN On The VPN tunnel is launched.
QoS On The QoS function is active.
PRN On The USB interface printer is ready.
On
The phone is off hook (the handset of phone is hanging).
VoIP (2,1)
Blinking
A phone call is incoming or on-line.
DSL On The G.SHDSL line is connected
LNK Blinking It means that Ethernet packets are transmitting.
On It means that a normal 100Mbps connection is
through its corresponding port.
100
Off It means that a normal 10Mbps connection is
through its corresponding port.
On It means a full duplex connection.
Off It means a half duplex connection.
LAN
(1, 2, 3, 4)
FDX
Blinking It means that a packet collision happens.
Interface Description
RST
(Factory Reset)
Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and keep
for more than 5 seconds. When you see the ACT LED begins to blink
rapidly than usual, release the button. Then the router will restart with the
factory default configuration.
VoIP
Connecters for telephone set and analog phone with VoIP communication.
DSL Connect the G.SHDSL line to access the Internet.
LAN (1,2,3,4) Connect to the local networked devices.
PRN Connect to the USB printer.
R
R
e
e
a
a
r
r
P
P
a
a
n
n
e
e
l
l
Interface Description
Connecter for a power cord with 100-240 VAC (inlet).
Power Switch. “1” is ON; “0” is OFF.
To Next Page
