Draytek VigorPro 5300 Quick Start Guide

VigorPro 5300 Series Quick Start Guide
4
1
1
.
.
1
1
.
.
2
2
F
F
o
o
r
r
V
V
i
i
g
g
o
o
r
r
P
P
r
r
o
o
5
5
3
3
0
0
0
0
n
n

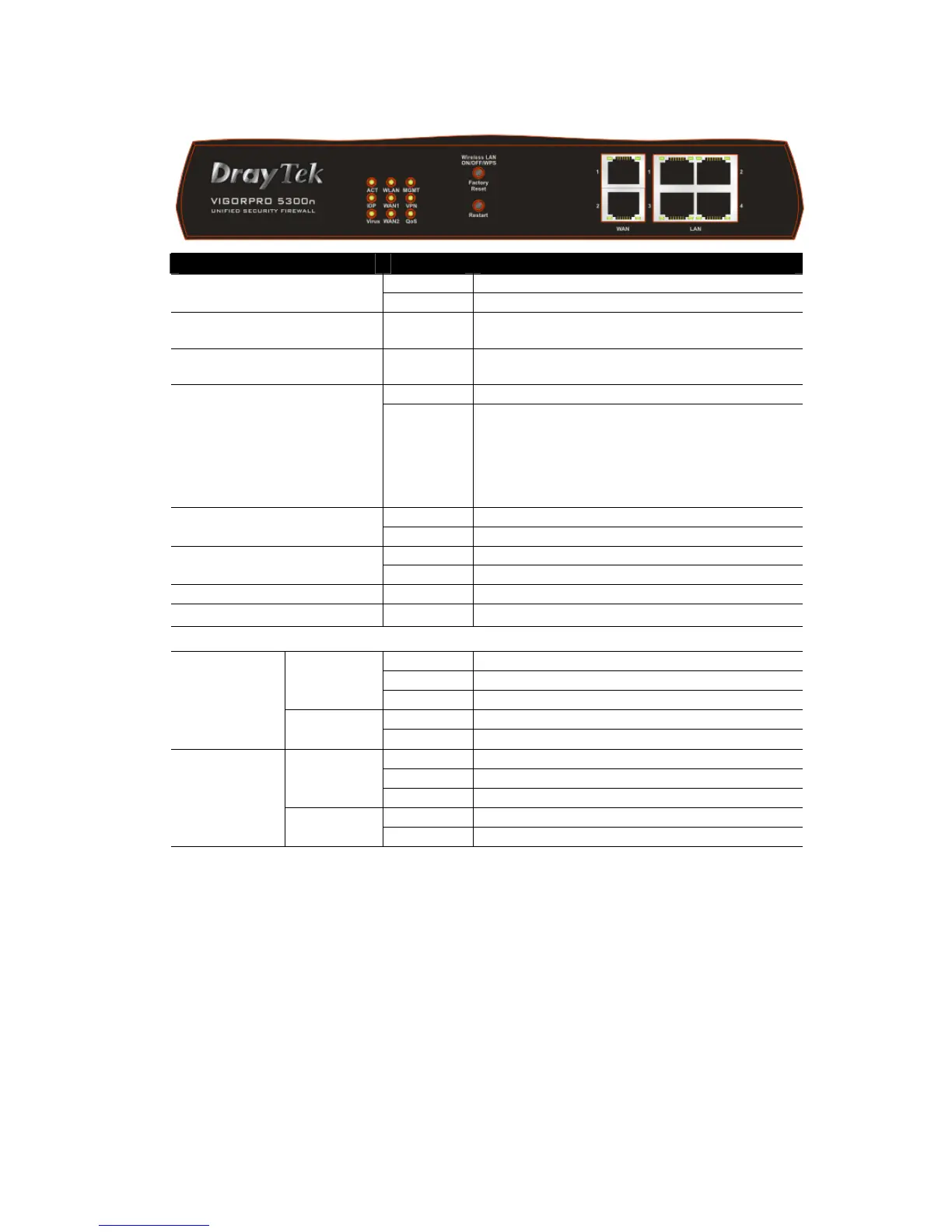

LED Status Explanation
Blinking The router is powered on and running normally. ACT (Activity)
Off The router is powered off.
IDP (Intrusion Detection and
Prevention)
On
(Yellow)
The anti-intrusion function is enabled.
Virus On
(Yellow)
The anti-virus function is enabled.
On
Wireless access point is ready.
WLAN
Blinking
It will blink slowly while wireless traffic goes
through.
If ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and it will
return to normal condition after two minutes. (You
need to setup WPS within 2 minutes.)
On The WAN1 or WAN2 connection is ready. WAN1/2
Blinking It will blink while transmitting data.
On The router is managed (handled) by Telnet. MGMT
Blinking
It will blink while being managed by IE browser.
VPN On The VPN tunnel is active.
QoS
On The QoS function is active.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 100Mbps.
WAN 1/2
Right LED
(Green)
Off The port is connected with 10Mbps.
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 100Mbps.
LAN 1/2/3/4
Right LED
(Green)
Off The port is connected with 10Mbps.
