Dražice OKC 250 NTR - Page 9

- 9 -

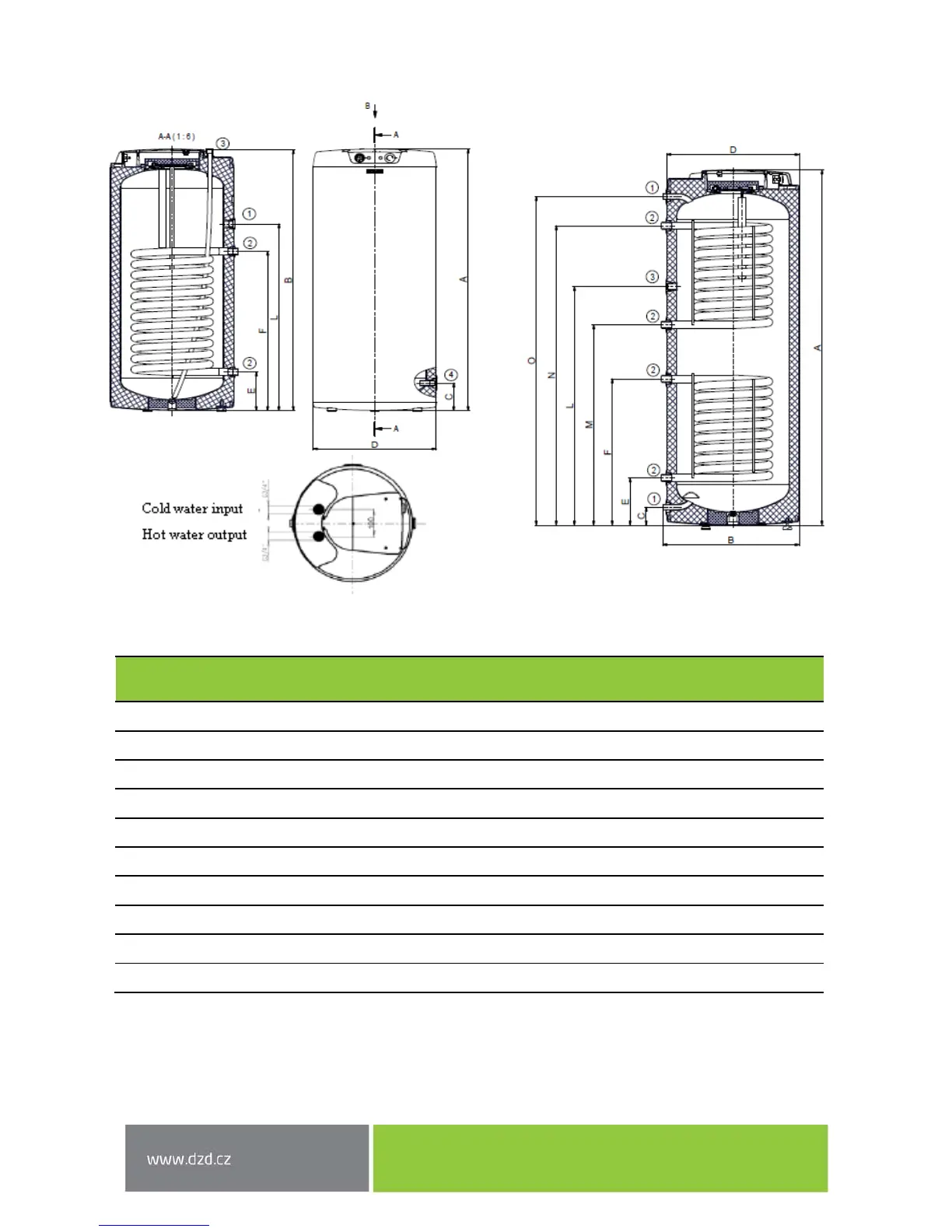

OKC 100 NTR, OKC 125 NTR, OKC 160 NTR OKC 200 NTR, OKC 250 NTR, OKC 200 NTRR,
OKC 250 NTRR
Figure 5
*Height from the upper heater's edge to the end of the water inlet and outlet tubes.
Table 2
OKC 100
NTR
OKC 125
NTR
OKC 160
NTR
OKC 200
NTR
OKC 200
NTRR
OKC 250
NTR
OKC 250
NTRR
A
902
1067
1255
1398
1398
1578
1578
B
891*
1058*
1249*
603
603
603
603
C
147
147
147
80
80
80
80
D
524
524
524
585
585
585
585
E
197
197
197
210
210
210
210
F
637
767
767
780
650
780
650
L
537
637
897
950
950
1060
1060
M
-
-
-
-
710
-
890
N
-
-
-
-
1150
-
1330
O
-
-
-
1280
1280
1460
1460
