Dreame F9 User Manual

21
vacuum-mop is too far from the charging dock, it
might not be able to automatically return on its
own, in which case you need to manually place the
vacuum-mop onto the charging dock.

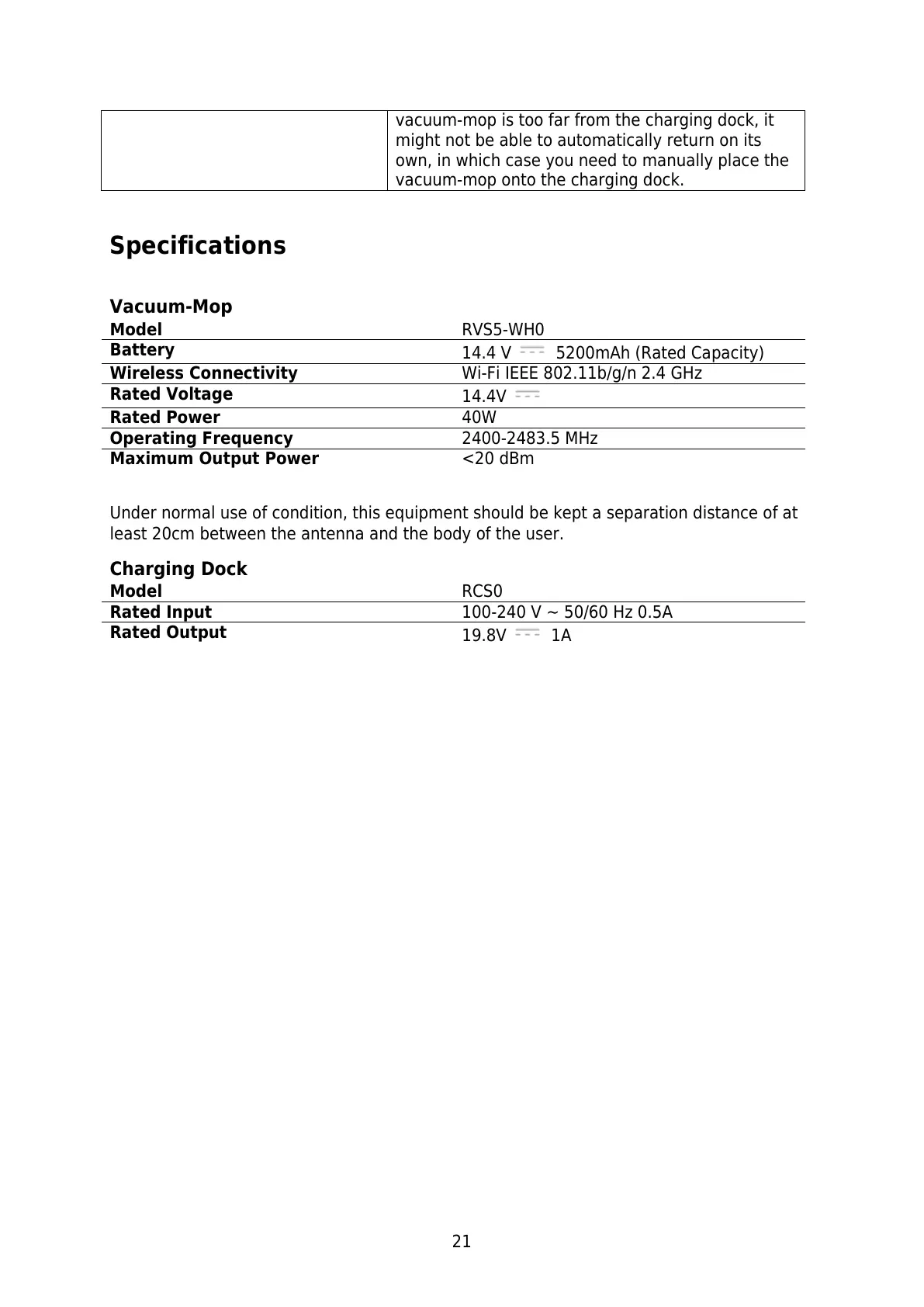

Specifications
Vacuum-Mop
Model
RVS5-WH0
Battery
14.4 V 5200mAh (Rated Capacity)
Wireless Connectivity
Wi-Fi IEEE 802.11b/g/n 2.4 GHz
Rated Voltage
14.4V
Rated Power
40W
Operating Frequency
2400-2483.5 MHz
Maximum Output Power
<20 dBm
Under normal use of condition, this equipment should be kept a separation distance of at
least 20cm between the antenna and the body of the user.
Charging Dock
Model
RCS0
Rated Input
100-240 V ~ 50/60 Hz 0.5A
Rated Output
19.8V 1A

Dreame F9 Specifications

General

Suction Power	2500 Pa
Battery Capacity	5200 mAh
Dustbin Capacity	600 ml
Noise Level	65 dB
Dimensions	350 x 350 x 80 mm
Weight	3.6 kg
Wi-Fi Connectivity	Yes
Water Tank Capacity	200 ml
Connectivity	Wi-Fi
Filter Type	High-efficiency filter
Runtime	150 minutes
