Dreamline PRISM PLUS - Shower Door Components and Parts List

Parts List

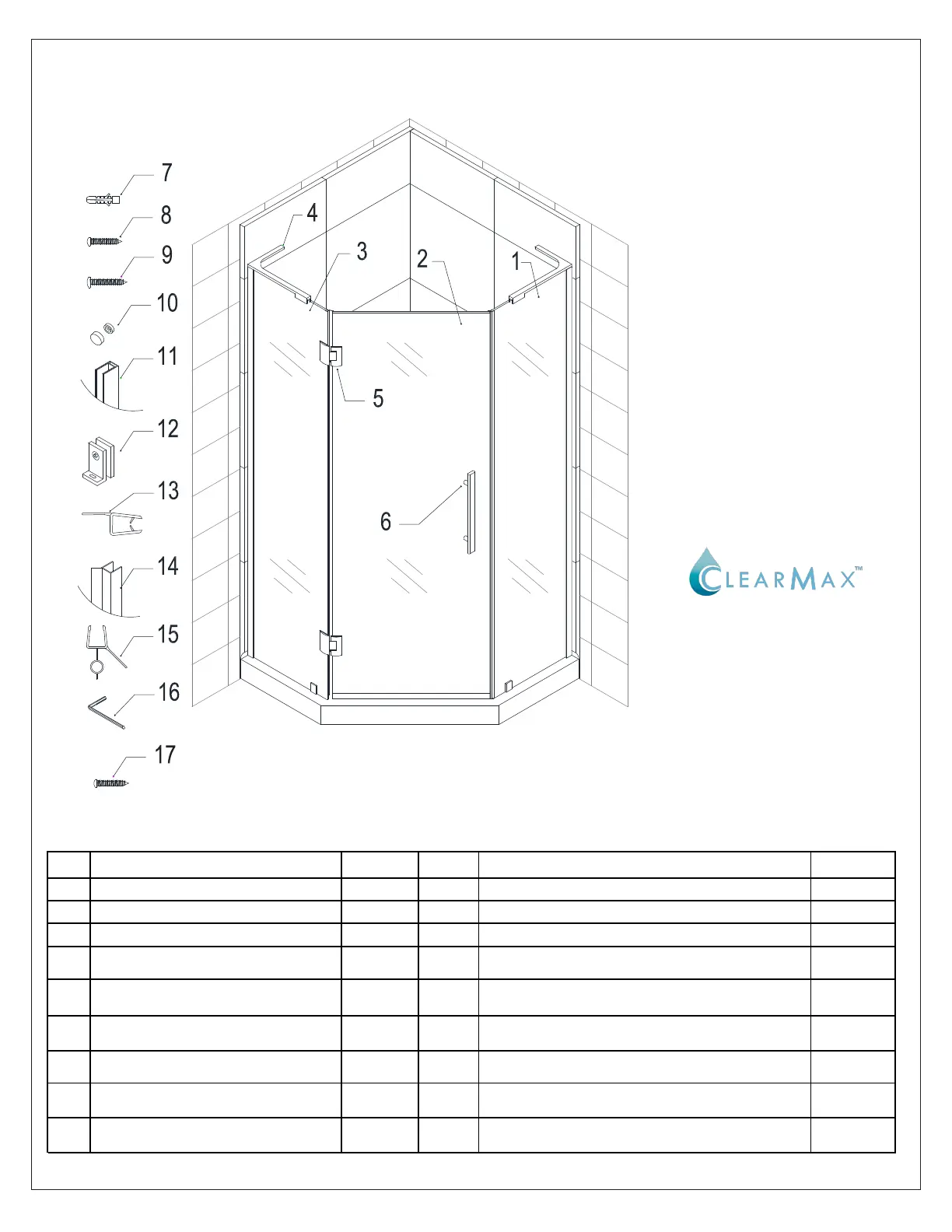

Detailed Diagram of shower door components
# ITEM QTY # ITEM QTY
1
Stationary Glass 1 1pc
10
Decorative Cover and washers 2sets
2
Door Glass 1pc
11
Stainless Steel U-channel
2pcs
3
Stationary Glass 2 (hinge panel) 1pc
12
Bottom Bracket 2pcs
4
L- shape brackets (Left & Right)
1set
13
Anti-water side strip
(hinge side) -3 pcs
1set
5
130° Adjustable Hinge
2pcs
14
Anti-water side strip (strike vinyl seal)
1pc
6
Handle
1pc
15
Anti-water bottom strip (sweep vinyl)
1pc
7
Φ8 (5/16”) Wall Anchor 14pcs
16
3mm/4mm Hex Key 1 each
8
2pcs
17
8pcs
9
4pcs
Round Head Screw ST4.2×25
Round Head Screw ST4.2×40
Truss Head Screw ST4.2×40
5PRISM PLUS manual Ver 1 Rev 2 11/2016
The glass surface
with the ClearMax™
label must be
installed to face
inside of the shower
