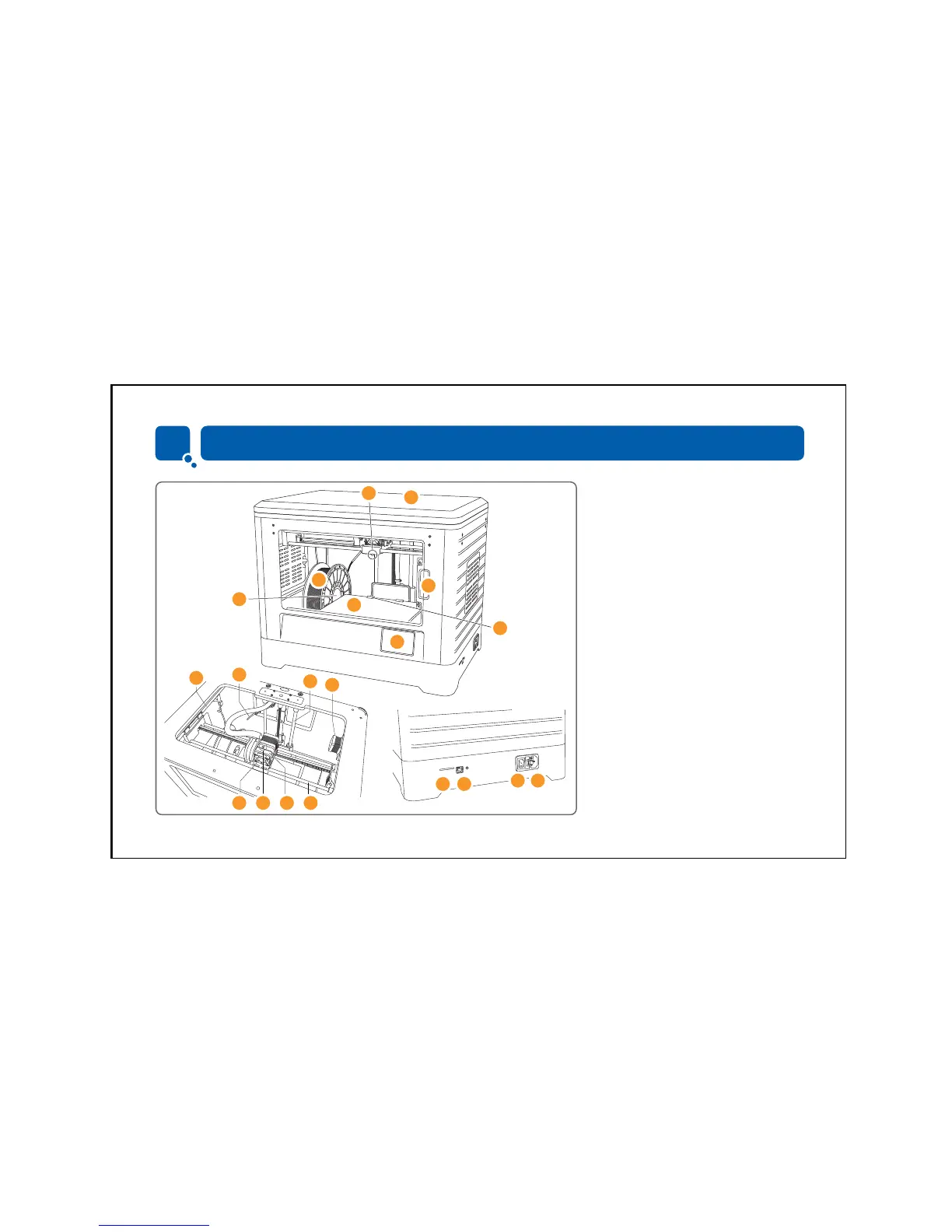

Getting to Know Your Dremel 3D20
3
Getting Ready to Build
4
1. Lid
2. Door
3. Touch Screen
4. Build Platform
5. Build Platform Clips
6. Filament Spool
7. Filament Spool Holder/Lock
8. Extruder Tip
9. Extruder Fan
10. Extruder
11. Extruder Intake
12. X-Axis Guide Rails
13. Stepper motor (1 of 3)
14. Z-Axis Guide rail
15. Filament Guide Tube
16. Y-Axis Guide Rails
17. SD card Input
18. USB Input
19. Power Switch
20. Power Input
1
2
3
4
5
6
7
8
9 1011 12
13
14
15
16
17 18
19 20
WARNINGWARNING
OBSERVE ALL PROVIDED WARNINGS AND SAFETY
INSTRUCTIONS WHEN USING THE DREMEL 3D20.
FAILURE TO DO SO MAY RESULT IN FIRE, EQUIPMENT DAMAGE,
BACK
TURN LEFT TO RAISE
THE BUILD PLATFORM
TURN RIGHT TO LOWER
THE BUILD PLATFORM
STEP 2: RIGHT ADJUSTMENT
NEXT
WARM
BACK
TURN LEFT TO RAISE
THE BUILD PLATFORM
TURN RIGHT TO LOWER
THE BUILD PLATFORM
STEP 3: BACK ADJUSTMENT
NEXT
WARM
a) If the leveling sheet cannot slide between the extruder
and build platform, turn the knob counterclockwise until
you can slide the leveling sheet between the extruder and
build platform with some resistance.
b) If the leveling sheet can slide between the extruder and
build platform too easily, turn the knob clockwise until you
can slide the leveling sheet between the extruder and build
platform with some resistance.
4. Tap “Next” to move the build platform toward the right knob
and repeat step above.
5 Tap “Next” to move the build platform toward the rear knob
and repeat step above.
6. Tap “Finish” to complete the leveling process.
Building
6
BUILDING OUT OF THE BOX
1. Go back to the main screen on your touch screen and insert
SD card included with your Dremel 3D20.
2. Tap “Build” on the touch screen, tap the SD card option, and
use the up/down arrows to scroll.
3. Tap on the model file you would like to build and tap "Build".
4. Your Dremel 3D20 will align the extruder with the build
platform and will begin heating the extruder.
5. Once the build temperature is reached, your model will
begin to build.
6. Touch screen will display “Object Finished”. Tap the check
box to confirm. Wait until the touch screen indicates that
the extruder temperature is “COOL”.
