Dremel DIGILAB LC40 User Manual

52
and the other end to the louvered duct
outlet with included hose clamps.
Minimize the number of 90-degree bends.
You should be able to limit the number of
bends to two. If replacing a windowpane,
use a wooden board or similar with a 4”
diameter cut out to place in the window
opening. Use foil tape to close any gaps
between the outer diameter of the duct
and the board and between the board
and the window frame, doorframe, or
opening that was chosen. See fig. 13.
Use Case 2: The LC40 will use the
supplied ducting and an in-line exhaust
duct booster fan to vent the LC40
outside of the building.
Choose a well-ventilated area to set-up
the Digilab Laser.
Securely connect one end of the flexible
exhaust hose to laser exhaust manifold
and the other end to the blower air inlet
side with included hose clamps. Take the
second hose and securely connect one
end – using supplied clamps - to the
blower’s air outlet side and route the
other end to the outlet vent. Total
combined length for the two ducts must
not exceed 20 feet. Minimize the number
of 90-degree bends. Set up should never
have more than four bends.
Use a wooden board or similar with a 4”
diameter cut out to place in the window
opening or the chosen opening to block
air from coming in. Use foil tape to close
any gaps between the outer diameter of
the hose and the board and between the
board and the window frame, doorframe,
or opening that was chosen. See fig. B.
Booster Fan
Outside
Window
Clamp
Clamp
SETUP

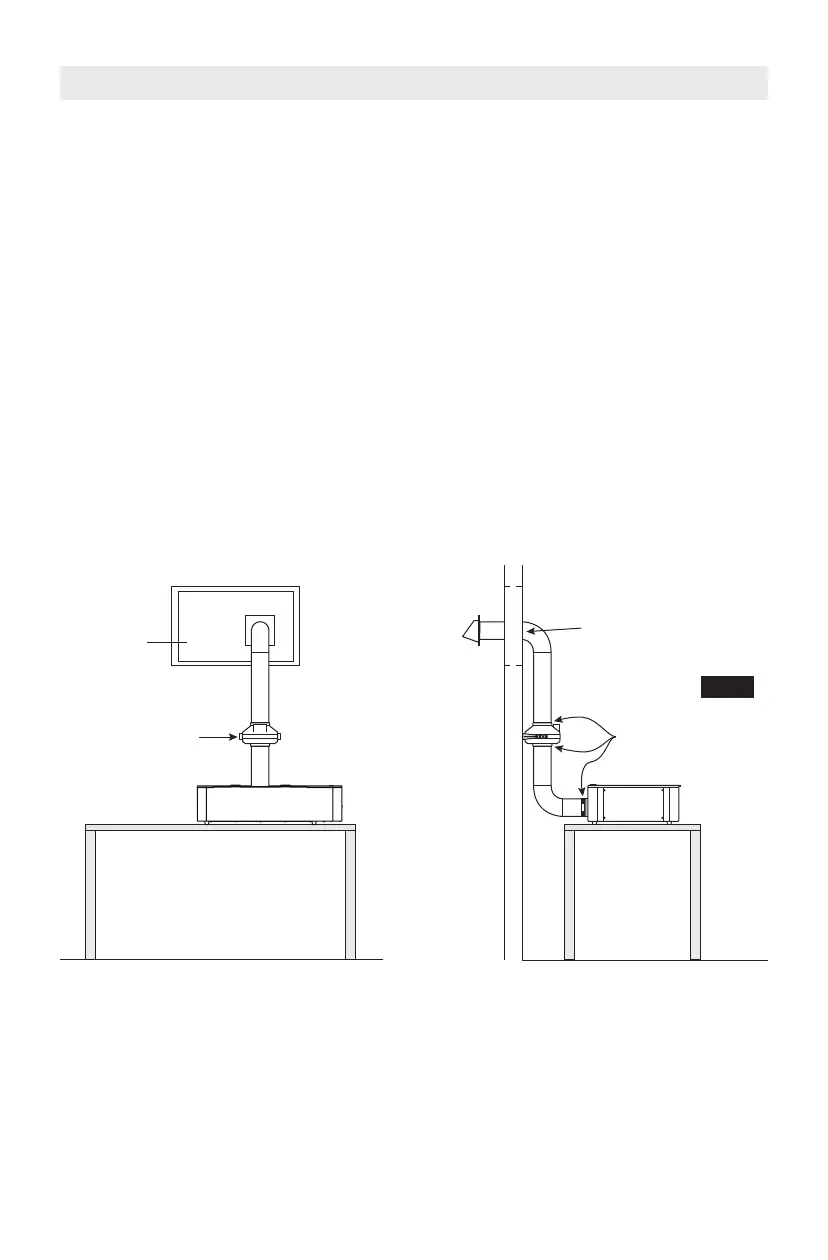

Exhaust system configuration example using an external in-line duct exhaust fan. When
using an external exhaust fan be sure to choose correct ventilation option on the LCD
during the laser startup sequence.
Attach the flexible duct to the laser exhaust manifold with the hose clamp provided. Extend
the flexible duct the required length to reach the exhaust fan. Secure the duct with the
provided hose clamp. Mounting the fan to the wall keeps the duct length to a minimum.
However, other configurations are possible depending on the location of the outlet vent
hood. Keep the duct length short and straight and cut off the excess with wire cutters.
Attach the duct to the exhaust fan and outlet vent with the hose clamps provided.
Fig. 18
