Installation and use
 Important note:
The suction cups hold the bathlift firmly in place on
the bottom of the bath. Therefore, the suction
cups at the underside of the AquaJoy VALU£ must
be clean and dry. The bath itself must also be clean
and dry. We recommend cleaning the suction cups
and bathtub regularly with commercial cleaning
agents, so as to achieve highest possible suction.
1. Make sure that the bottom of the bath is empty
and clean (remove anti-slip mats or similar, if
necessary).
2. Place the seat unit with the suction cups
attached to the baseplate into the empty bath.
Make sure that the rear suction cups are
located close to the bevelled edge of the bath.

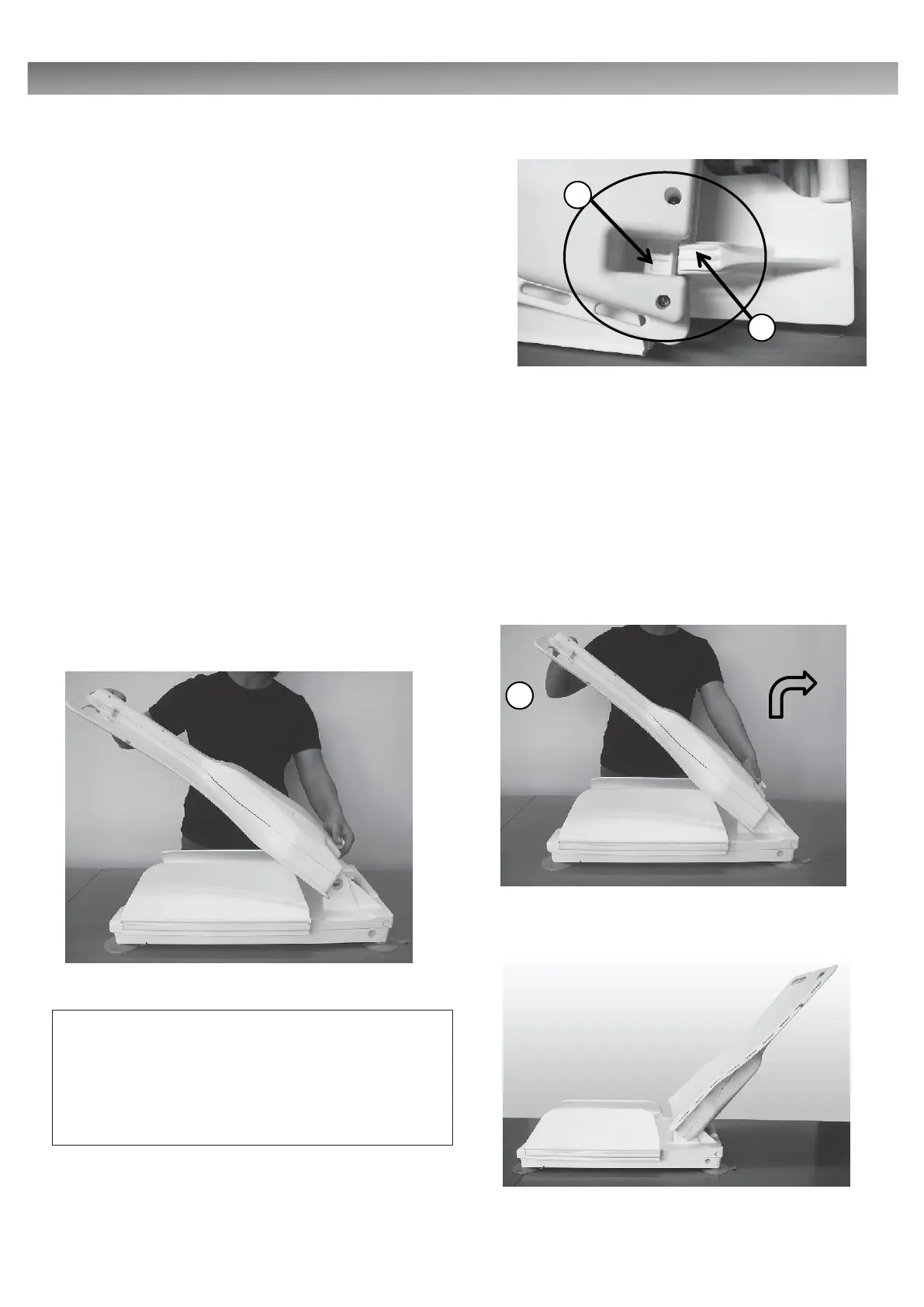

3. Now insert the drive unit with integrated back
rest into the bearing blocks of the seat unit (see
illustration).
 Attention! It is very important
that both guide pins are inserted
into the bearing blocks!
2
1
1 –Bearing Block – 2 – Guide Pin
Please make sure that the red stop lever is in the
correct position.
4. Now hold the backrest at the hand grips and
using the other hand tilt it backwards (see
illustration) until the drive unit rests against the
baseplate.
1 –Hand Grip
1
