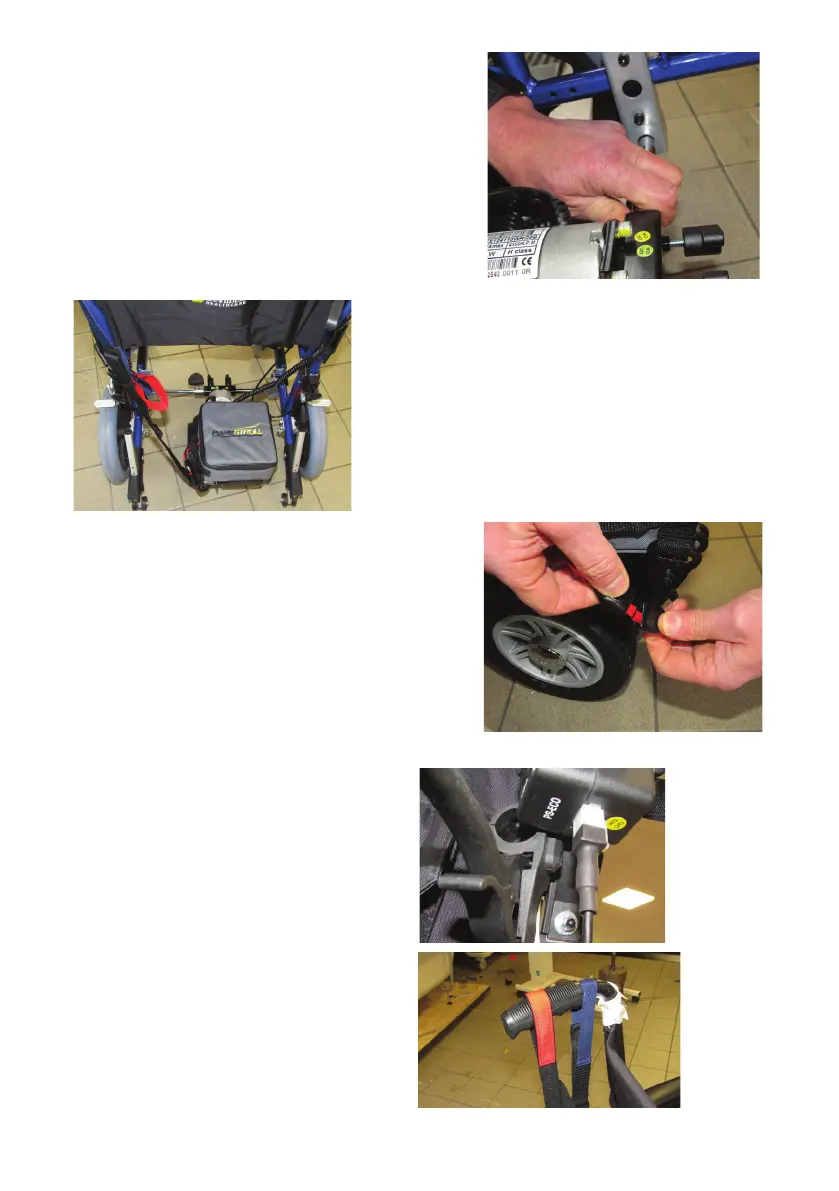

Powerpack Installation
Feed the telescopic bar through the front
end of the powerpack. Slacken the tristar
knob on the bar and insert one end of the
bar in to the bracket on one side of the
wheelchair (as shown right).
Position the powerpack centrally
between the wheelchair. Tighten the
tristar knob and the two tightening
handles, to secure the installation.
Slide the telescopic section out until the
other end of the bar locates fully in the
hole of the bracket on the opposite side
of the wheelchair.
Handset Connection
Connect the cable from the
powerpack into the connector on
the underneath of the handset.
Lift-up Strap Installation
Place the top loop of the lift-up
strap around the opposite push
handle to the handset.
Battery Pack Installation
Place the battery pack into the tray on top of
the powerpack, ensuring the pack handle is on
the left hand side of the powerpack (as shown
above)
Connect the red and black connector on the
battery pack to the red and black connector on
the powerpack (as shown right)
