9

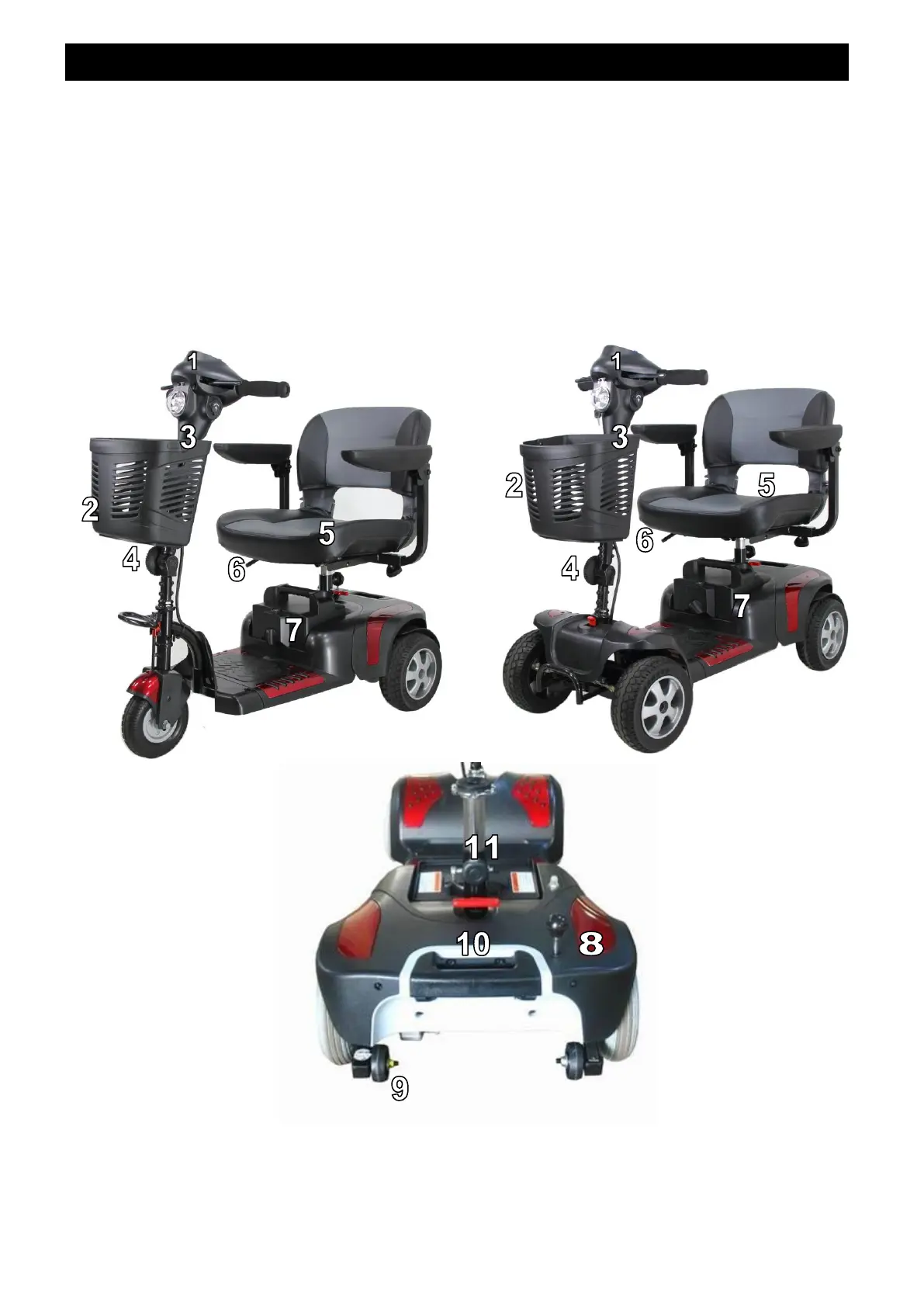

3 . PA R T S I N T R O D U C T I O N
PARTS DESCRIPTION
1. Control panel
2. Basket
3. Charger Socket
4. Tiller Adjustment Knob
5. Seat
6. Seat Rotation Lever
7. Battery Pack
8. Freewheel Lever
9. Anti-tip wheels
10. Seat Post Knob
11. Seat Height Adjustment
Pin
