DROPSA SMART3 - Electrical Connections - Manual Versions (Type 2, Optical;Pressure Switch); Type 2 (Optical N & Pressure Switch Series); Type 2 (Optical P & Pressure Switch Series)

10

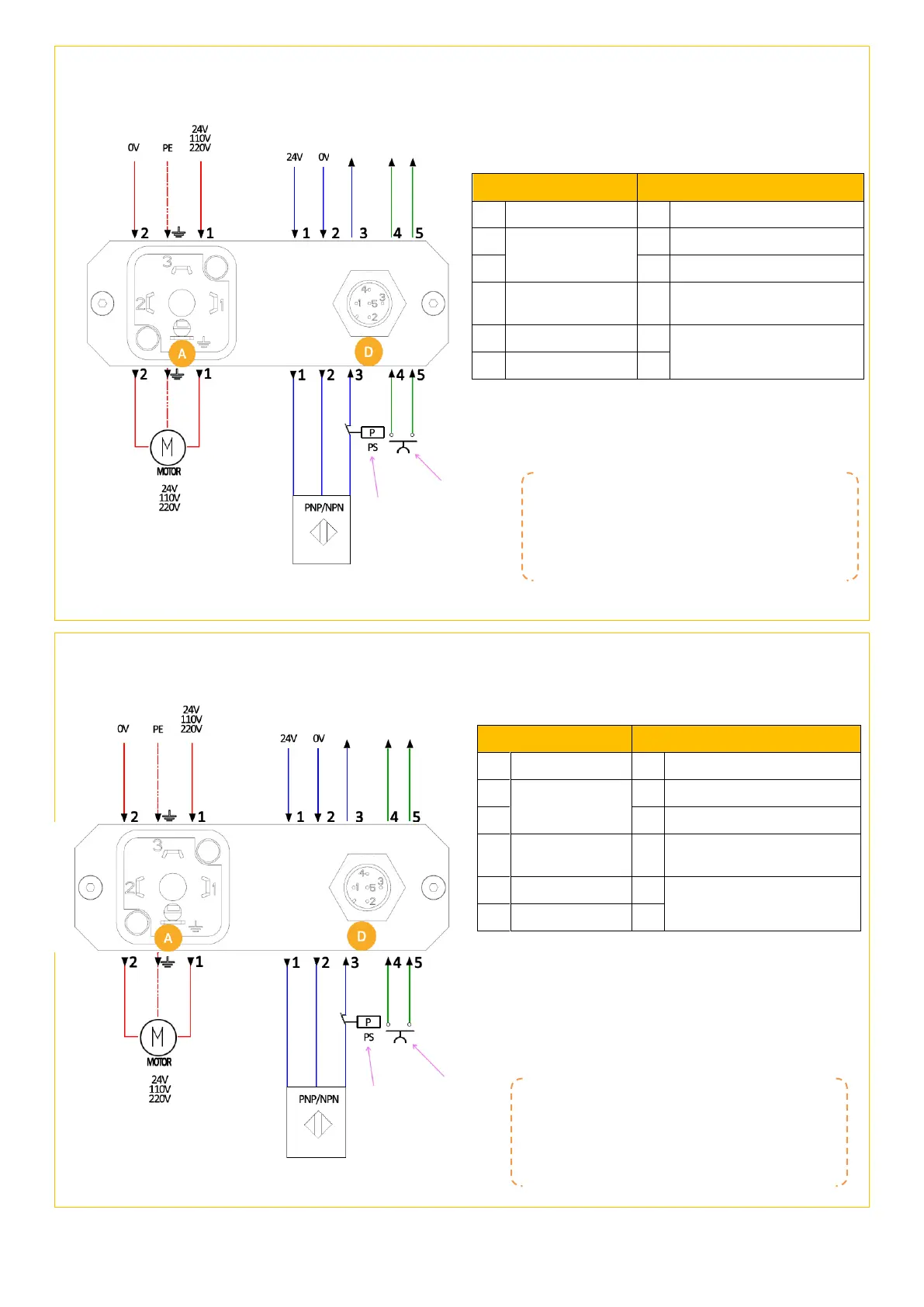

- FOR MANUAL VERSIONS WITH OPTICAL LEVEL (N) AND PRESSURE SWITCH IN SERIES*- 3133802
- FOR MANUAL VERSIONS WITH OPTICAL LEVEL (P) AND PRESSURE SWITCH IN SERIES*- 3133804
A (DIN43650)
D (M12X1)
PIN
DESCRIPTION
PIN
DESCRIPTION
1
AC / DC POWER
INPUT
1
Level Sensor Power supply +
2
2
Level Sensor Power supply -
3
NOT USED
3
NPN Alarm Output.
Level and Pressure switch
in series
4
Earth
4
Push Button Contact
(Voltage Free)
5
REMOTE
BUTTON
CONTACT
Button
push
to made
Open on
pressure
A (DIN43650)
D (M12X1)
PIN
DESCRIPTION
PIN
DESCRIPTION
1
AC / DC POWER
INPUT
1
Level Sensor Power supply +
2
2
Level Sensor Power supply -
3
NOT USED
3
PNP Alarm Output
Level and pressure switch
in series
4
Earth
4
Push Button Contact
(Voltage Free)
5
*APPLICABLE TO PUMP CODES:
4010012/4010112/4010212/4010612/4010312/
4010412/4010512/4010712
*APPLICABLE TO PUMP CODES:
4010014/4010114/4010214/4010314/4010414/
4010514/4010614/4010714
Button
push
to made
Open on
pressure
Optilev
level
sensor
REMOTE
BUTTON
CONTACT
OPTIC LEVEL N
AND
PRESSURE
SWITCH
NC SERIE
Optilev
level
sensor
OPTIC LEVEL
AND
PRESSURE
SWITCH
NC SERIE
