DROPSA SMART3 User Manual

15

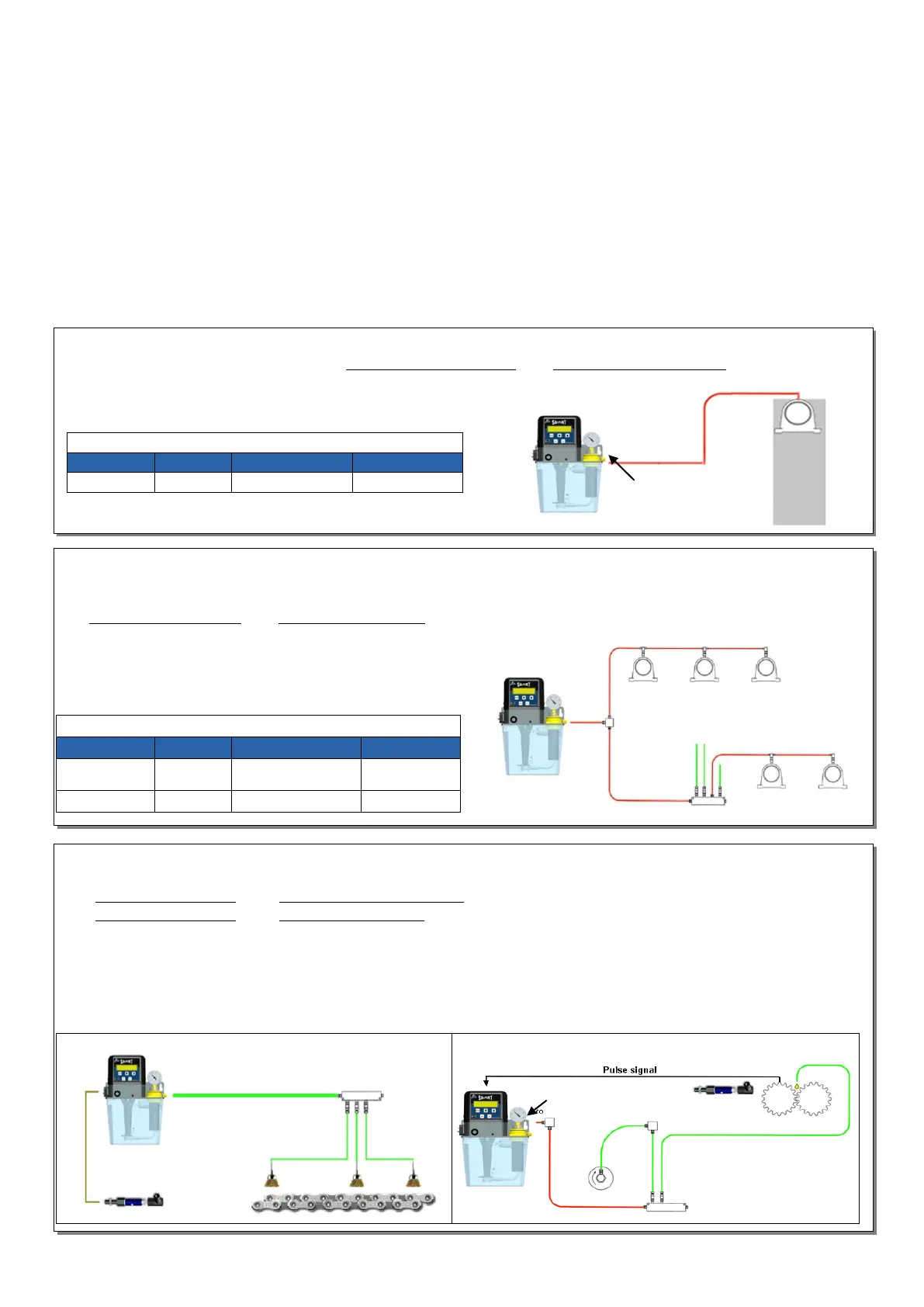

8.7PROGRAMMING THE SMART3 AUTOMATIC VERSION
When switching on the SMART 3 you are automatically in the BASIC MENU. This allows you to run simple lubrication systems
with only the main parameters settable such as pause and on time.
If you have more complex requirements - such as multiple monitored cycles or prelube cycles, the user should enter the
extended menu. For details on extended menu please refer to section 8.7.1.
The main parameters to set are CYCLE END and LUBE TYPE.
CYCLE ENDis settable as 'cycle' or 'pulse'. If CYCLE is selected it means that the lube cycle is completed with a signal from a
sensor. Pulse means that both the standby time and run time is completed by sensor.
LUBE TYPEis settable as 'TIMER' or 'no control' or '33vps'.
If CYCLE END is set to 'CYCLE' then you can only choose between 'TIMER'(cycle ends on timed basis) or'33vps'(cycle ends on ps
signal).
If CYCLE END is set to 'PULSE' you can choose between 'NO control'(no ps switch needed to finish cycle) or '33vps'(pressure
switch signal must be received to finish cycle).
 SMART3 PUMP DEFAULT IS SET with "CYCLE END" in "CYCLE" and "LUBE TYPE" IN "33V/PS":
BASIC MENUallowssetting pause time betweenlubrication and the
next one.
BASIC PARAMETERS
PARAMETER
DEFAULT
DESCRIPTION
RANGE
Standby
6m 00s
Standby time
5s – 99h00m
To allow the user to select the other main parameters in EXTENDED MENU, hold "MODE" button for 5 seconds as described in
previous section and select following parameters you need.
 "CYCLE END" in "CYCLE" and "LUBE TYPE" in "TIMER"
With these parameters you can set BASIC MENUthe duration of a
lubrication cycle. So, in this case, the pump will lubricate the
system every 6 minutes for 30 seconds.
If you need that the pump manages cycle lubrication with an external signal you can set two parameters:
 "CYCLE END" in "PULSE" and "LUBE TYPE" in "NO CONTROL"
 "CYCLE END" in "PULSE" and "LUBE TYPE" in "33V/PS"
BothcasesBASIC MENUallow setting timeout time for pulses received. Default pause is set
to1,therefore,eachlubricationpumpwill pausefor a tot.SECset toleave again. Second case("CYCLE END" in "PULSE" and "LUBE
TYPE" in "33V/PS")pumpis controlled by thesetting pressure.
"CYCLE END" in "PULSE" and "LUBE TYPE" in "NO CONTROL"
"CYCLE END" in "PULSE" and "LUBE TYPE" in "33V/PS"
BASIC PARAMETERS
PARAMETER
DEFAULT
DESCRIPTION
RANGE
Lube Timer
30 sec
How long the
pump will run
1s – 2 min
Standby
6m 00s
Standby time
5s – 99h00m
Pressure switch
Pressure switch
