DROPSA SMART3 User Manual

17

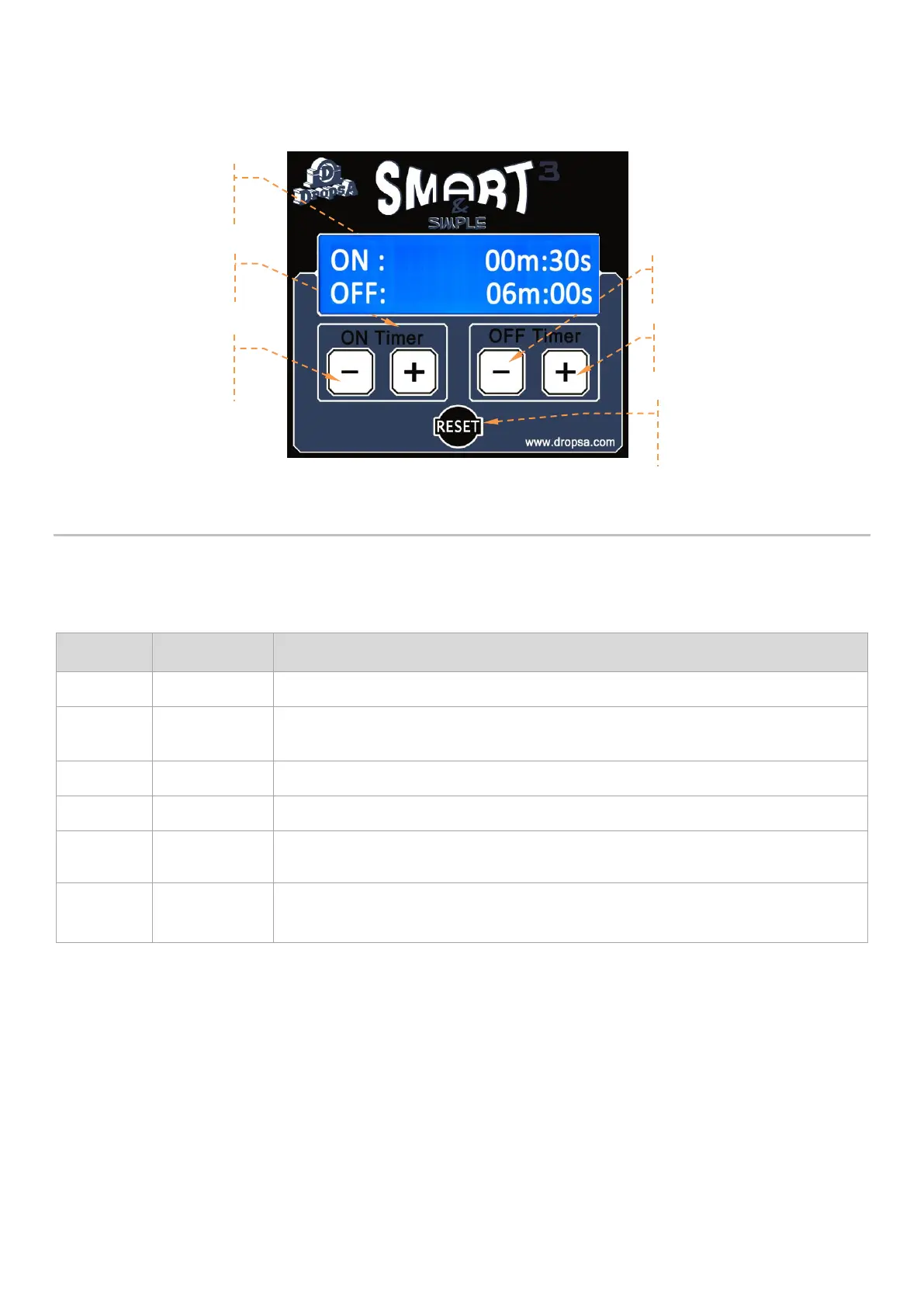

8.8SMART&SIMPLE – SIMPLIFIED AUTOMATIC VERSION PROGRAMMING
In this version the pump operates only in TIMER mode.Using 4 buttons placed on the panel you can set times and pause of
lubrication.To change ON and OFF timing press related buttons for 3s.
9. PROBLEMS AND SOLUTIONS
9.1 ALARM TABLE for AUTOMATIC VERSION
The following is a list of possible alarms generated by the SMART3 AUTOMATIC VERSION with information for troubleshooting
purposes.
9.2 REMOTE CODED ALARM FUNCTION
The SMART3 AUTOMATIC VERSION has the ability to use a remote pulsed coded alarm contact.
Every time the SMART3 AUTOMATIC VERSION enters an alarm condition, the remote alarm relay contact is activated.
Most alarm contacts are simply a NC or NO contact that gives a remote system indication that the local controller is in a fault
condition.
Additionally, the SMART3 AUTOMATIC VERSION can trigger the alarm according to the alarm code being generated and allow a
remote PLC (or even a remote LAMP signal) to read the number of the alarm being generated.
This is done by pulsing the alarm relay in 500ms bursts with a 2000ms gap between each signal burst.
ALARM
CODE
DESCRIPTION
NOTES/CHECKS/SOLUTIONS
ALARM 01
LOW LEVEL
The Low level sensor has triggered.
Replenish the oil reservoir.
ALARM 05
PS ALREADY ON
The pressure switch has not been detected in the specified time. Make sure that you have
set the timer to a value that allows the cycle to complete and check for leaks.
ALARM 06
PS AFTER WAIT
The P2 input has been activated and the Boost Function has increased the number of
Lubrication Cycles in the Lubrication Phase.
ALARM 07
NOT IN PRESS.
The Thermal relay trip signal has been detected.
Verify and repair.
ALARM 08
PAUSE TIMEOUT
In PS Cycle mode, the pressure switch was already active before the pump was switched
on.
Check to ensure the venting system is operating correctly.
ALARM 15
UNCODED FAIL
An unknown Internal error has occurred.
Try resetting the unit. If the error re-occurs, the unit must be returned to Dropsa for
inspection.
DISPLAY
Status and description
(default value shown)
ON TIMER (-)
Decreases time of
lubrication
ON TIMER (+)
Increases time of lubrication
OFF TIMER (-)
Decreases pause time
OFF TIMER (+)
Increases pause time
RESET
Reset the lube cycle and remove
errors
