137M7122 DPI 705E / DPI 705E IS User Manual–English | i
Introduction
This user manual covers the DPI 705E / DPI 705E-IS measurement instrument and its associated
remote probes, PM 700E / PM 700E-IS for pressure measurement and RTD-INTERFACE /
RTD-INTERFACE-IS for temperature measurement.
Unless specifically stated in a section all references to DPI 705E cover both DPI 705E (non-
Intrinsically Safe) and DPI 705E-IS (Intrinsically Safe). This also applies to PM 700E, PM 700E-IS and
RTD-INTERFACE, RTD-INTERFACE-IS.
DPI 705E Series Digital Pressure Indicator
The Druck DPI 705E pressure indicator uses a silicon transducer to produce a pressure reading in
various pressure measurement units. These user instructions include the operations for all DPI 705E
Pressure Indicators, safety instructions and the requirements for intrinsically safe instruments.
The PM 700E provide a remote pressure sensor function for the DPI 705E to allow more convenient
connection when direct connection of the handheld instrument would be inconvenient. The PM 700E
is a “plug and play” device holding its own calibration data, so it can be used to have multiple
pressure range sensors available for immediate use with a single DPI 705E instrument.
The RTD-INTERFACE is a remote interface for use with the DPI 705E or the DPI 620G to allow
connection of a PT 100 RTD probe to the instrument for the purpose of measuring temperature.
For all accuracy specifications etc refer to the relevant product datasheet, available for download
from Druck.com/essential.

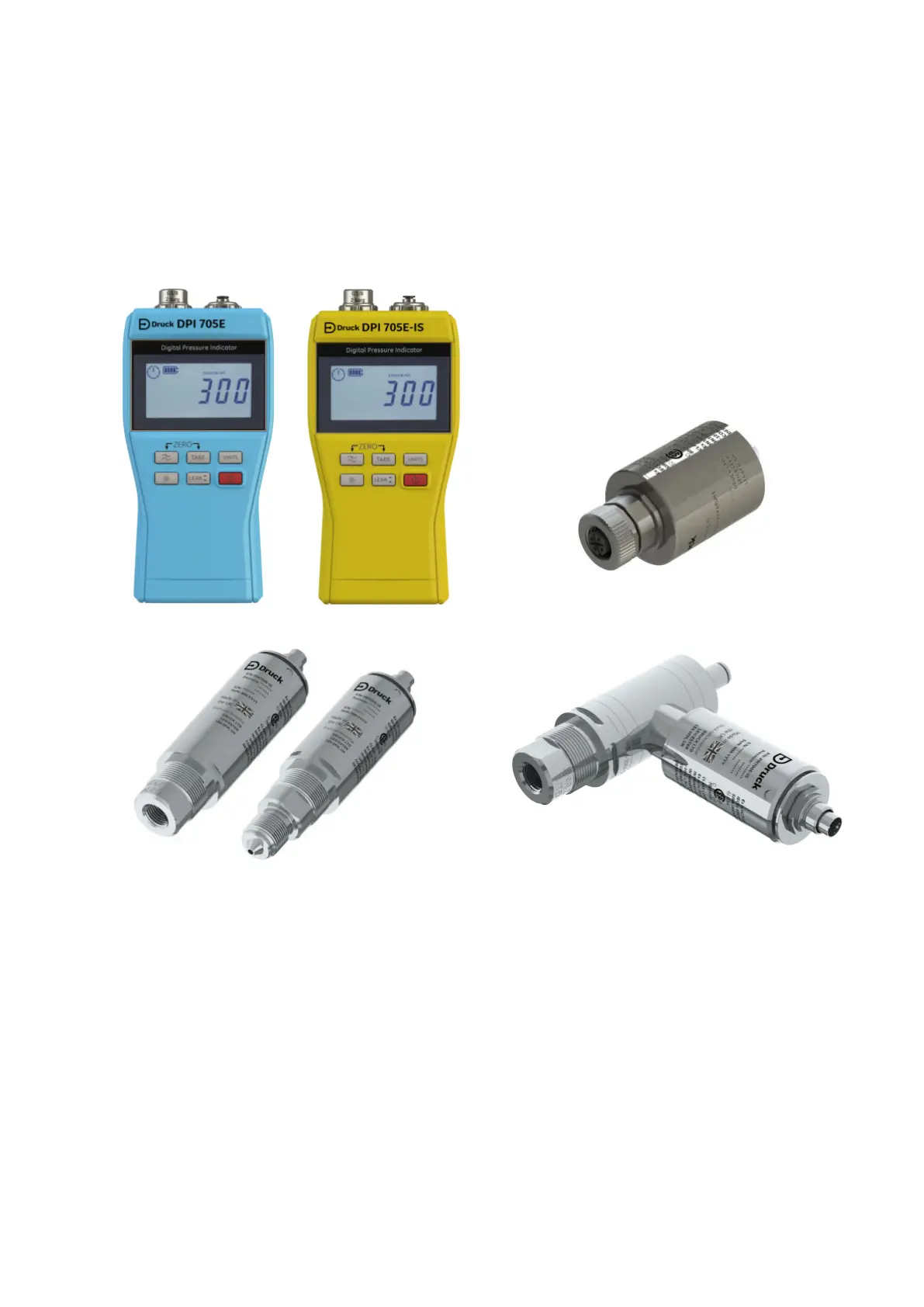

DPI 705E
DPI 705E-IS
RTD-INTERFACE
PM 700E (Differential)
PM 700E (Absolute, Gauge)
