ii | 137M7122 DPI 705E / DPI 705E IS User Manual–English
Commercial and Intrinsically Safe Product versions
The DPI 705E is available as either non-Intrinsically Safe (blue in color) or Intrinsically safe (yellow in
color) versions, with case coloring used as well as labeling to indicate the version.
The remote pressure sensor PM 700E and the remote RTD interface RTD-INTERFACE are available as
either non-Intrinsically Safe or Intrinsically safe versions. The outer metal body of the product is
marked with its part number and relevant approvals.
Safety
For all safety information on both commercial and Intrinsically Safe versions refer to the Quick Start
and Safety Manual provided with the unit and also available for download on Druck.com/essential.
Pressure Connectors and Adaptors
The DPI 705E and PM 700E are fitted with female G1/8 pressure connectors for the main pressure
port P1 for ranges 25 mbar - 200 bar(0.36 psi - 2900 psi). For pressures 350 bar-1400 bar(5000 psi -

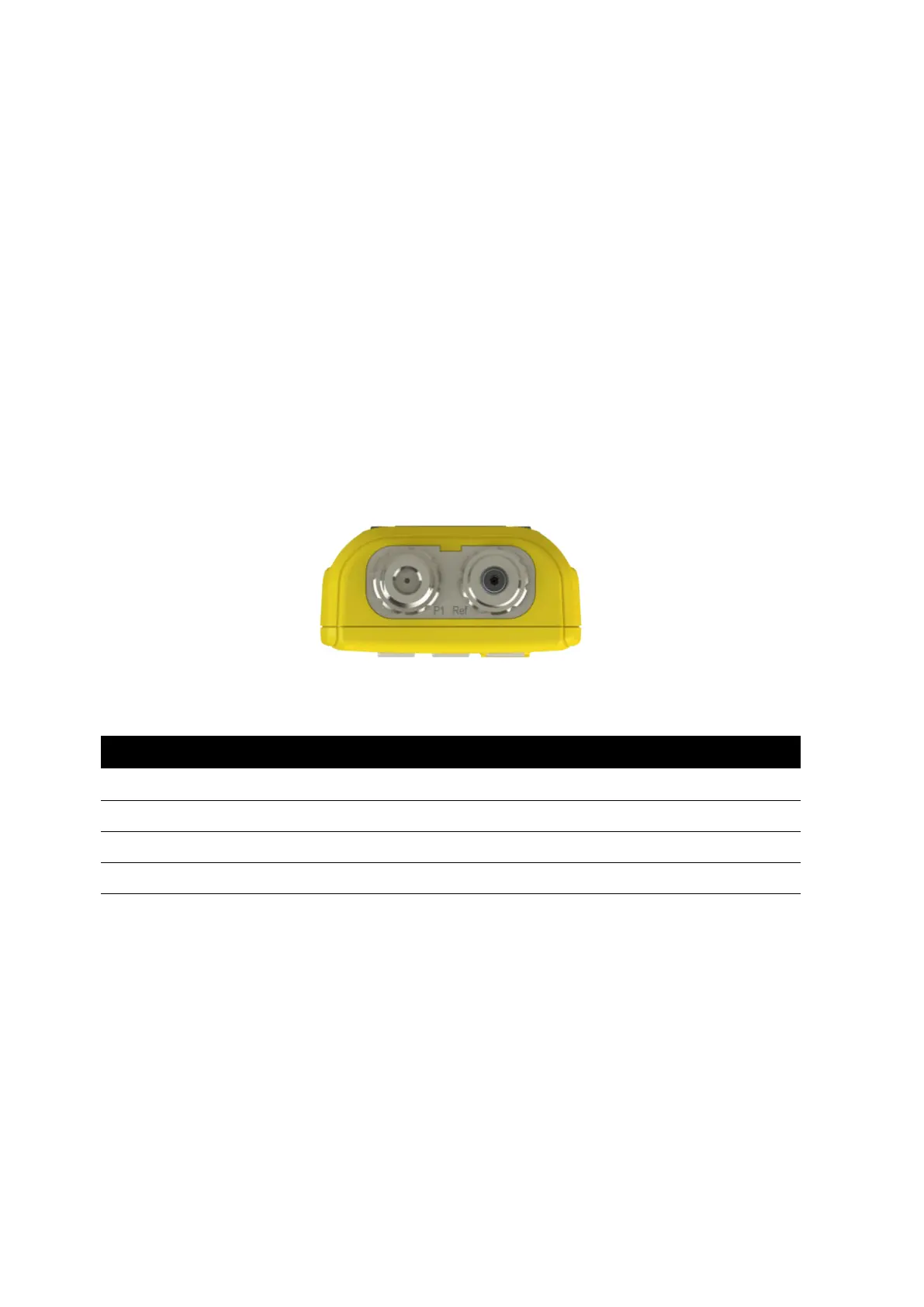

20000 psi) Autoclave male pressure connectors are used. The main pressure port P1 is shown on the
left in the picture below.
For differential units/sensors fitted with a reference port a Legris adaptor is fitted giving a 4mm
tubing fitting. This is shown as the Ref port on the right in the image below.
Various adaptors are available (either as accessories or configured when ordering) for the G1/8
connection to convert to other standards. Please see datasheet for full details.
Part Code Description
IO-ADAPT-G1/4 G1/4 female adaptor
IO-ADAPT-1/4NPT 1/4 NPT adaptor
IO-ADAPT-1/8NPT 1/8 NPT adaptor
IO-ADAPT-QF Quick-fit hose adaptor
