137M7122 DPI 705E / DPI 705E IS User Manual–English | iii

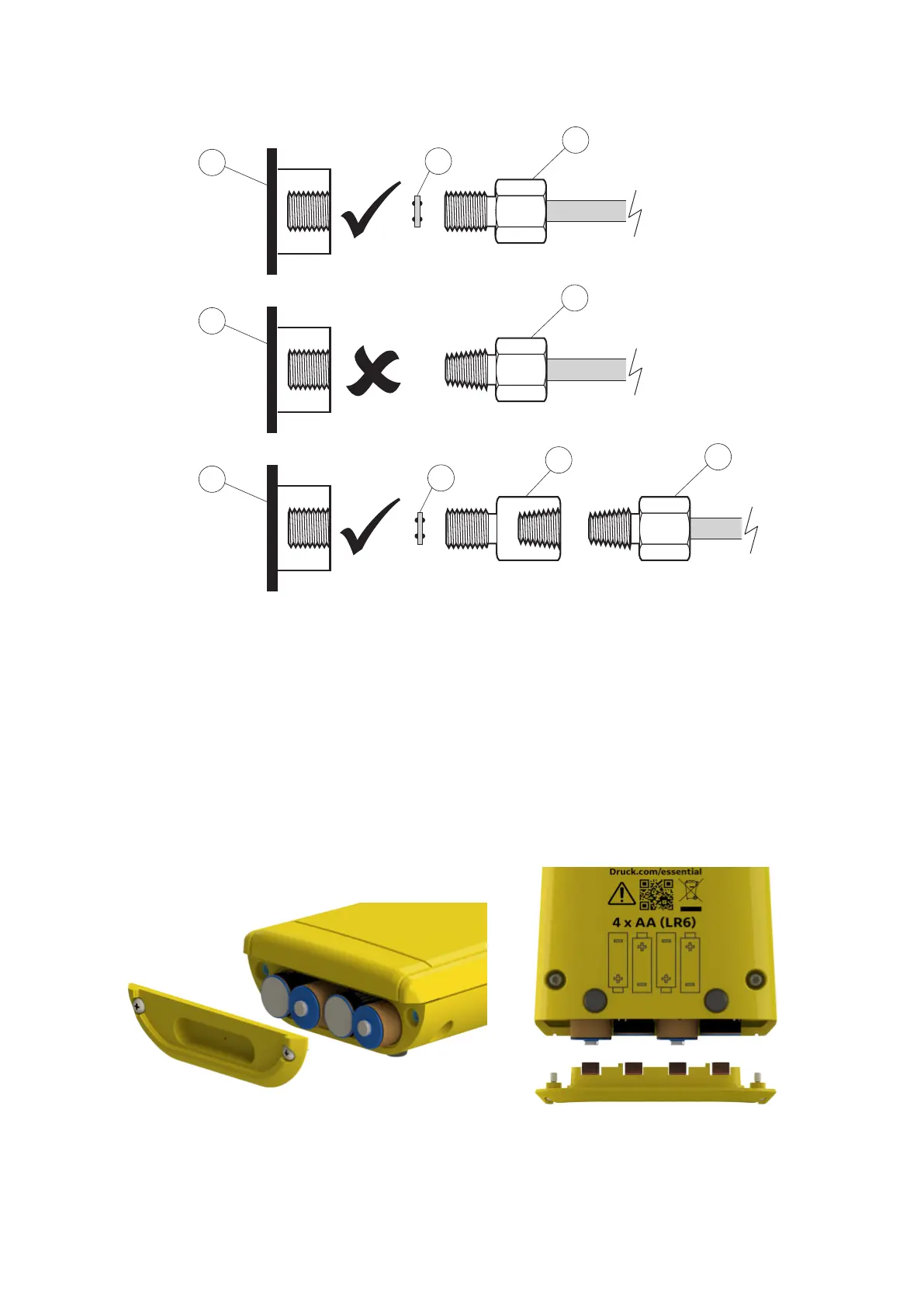

See below for cautions on adaptor and connector fitting:
Batteries
For compatible battery types refer to Quick Start and Safety Manual provided with the unit and also
available for download on Druck.com/essential
The instrument requires 4 x AA/LR6 batteries, fitted as per below image. Use a small Posidrive
screwdriver to loosen the screws in the battery compartment cover and fit as per the battery
orientation shown on the back of the instrument as illustrated below:
1 DPI 705E or PM 700E G1/8 port
2 Bonded seal 110N3018
3 ISO 228/1 G1/8
4 NPT thread pressure connector IO-ADAPT-1/4NPT or IO-ADAPT-1/8NPT
5 NPT female to G1/8 male adapter part number IO-ADAPT-1/4NPT
τ;>Xq
0;;:mrpf1
:
:
:
;
>
4
4
;
3
