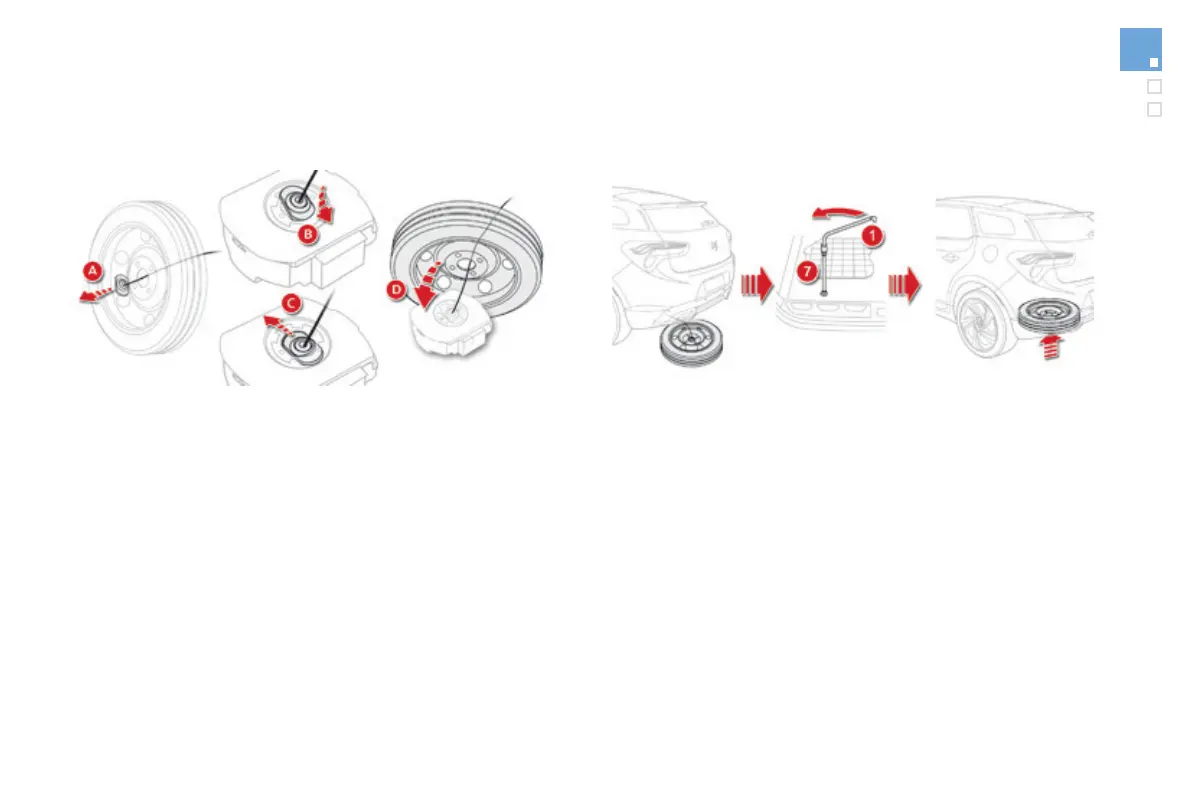

Putting the winch carrier and
spare wheel back in place
This procedure is to be carried out whether
the spare wheel is present or not. Without the
spare wheel, skip steps A and D.
Only a "space-saver" type spare wheel can
be secured under the vehicle using the winch
carrier.
F Stow the jack in the box and refit the lid.
F Place the closed box flat on the ground,
close to the rear of the vehicle.
F Straighten the spare wheel and pass the
link piece through the middle of the wheel.
F Insert the link piece in the tool box
aperture.
F Centre the spare wheel on the tool box.
F Place the assembly of wheel and tool box
under the rear of the vehicle.
F Raise the assembly of wheel and tool box
under the vehicle by turning the winch drive
nut anticlockwise using the wheelbrace 1
and the extension 7.
F Tighten fully and check that the wheel is
horizontally flush against the floor.
