213
Practical information
DS5_en_Chap08_info-pratiques_ed02-2015

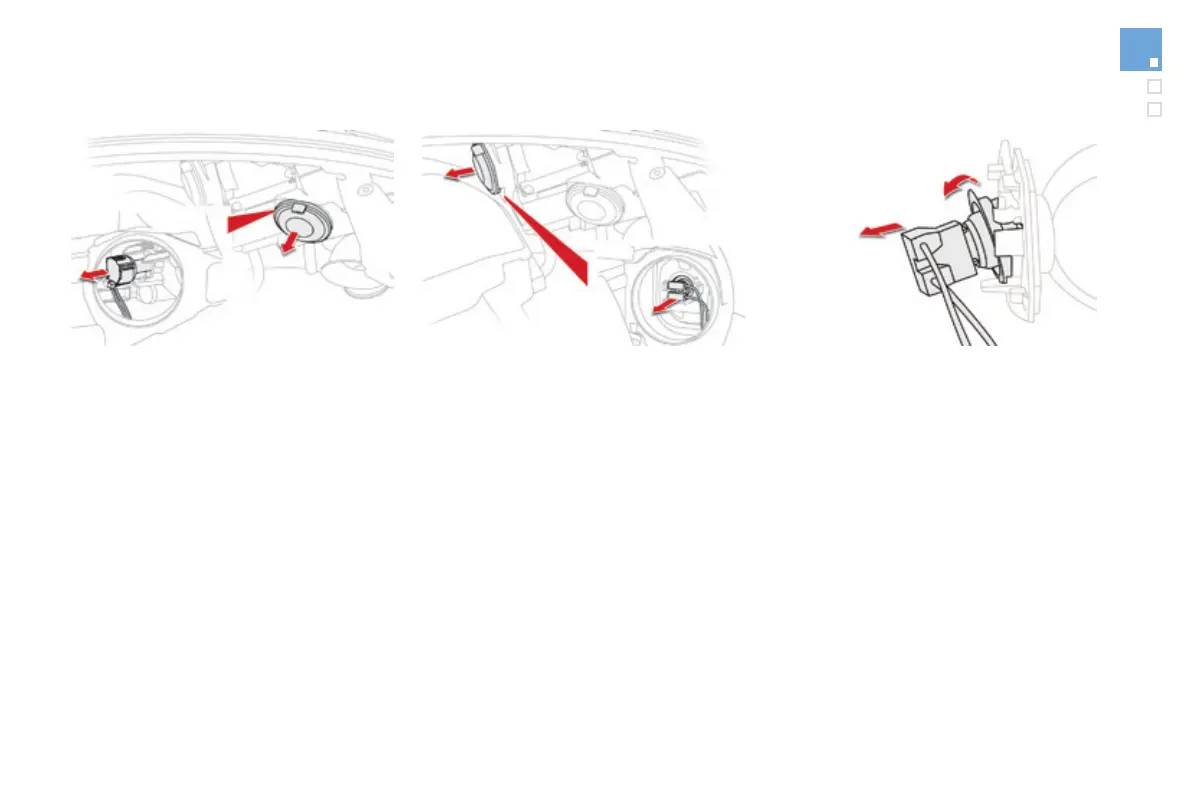

Dipped beam headlamps
(halogen model)
Main beam headlamps
(halogen model)
F Press on the top of the connector then
pivot the assembly downwards.
F Remove the connector with the bulb.
F Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order, but engaging the bottom of the
bulb first.
F Remove the protective plastic cover by
pulling on the tab.
F Remove the protective plastic cover by
pulling on the tab.
F Remove the connector with the bulb by
pressing on the lug at the bottom.
F Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order.
