Display of energy fl ows

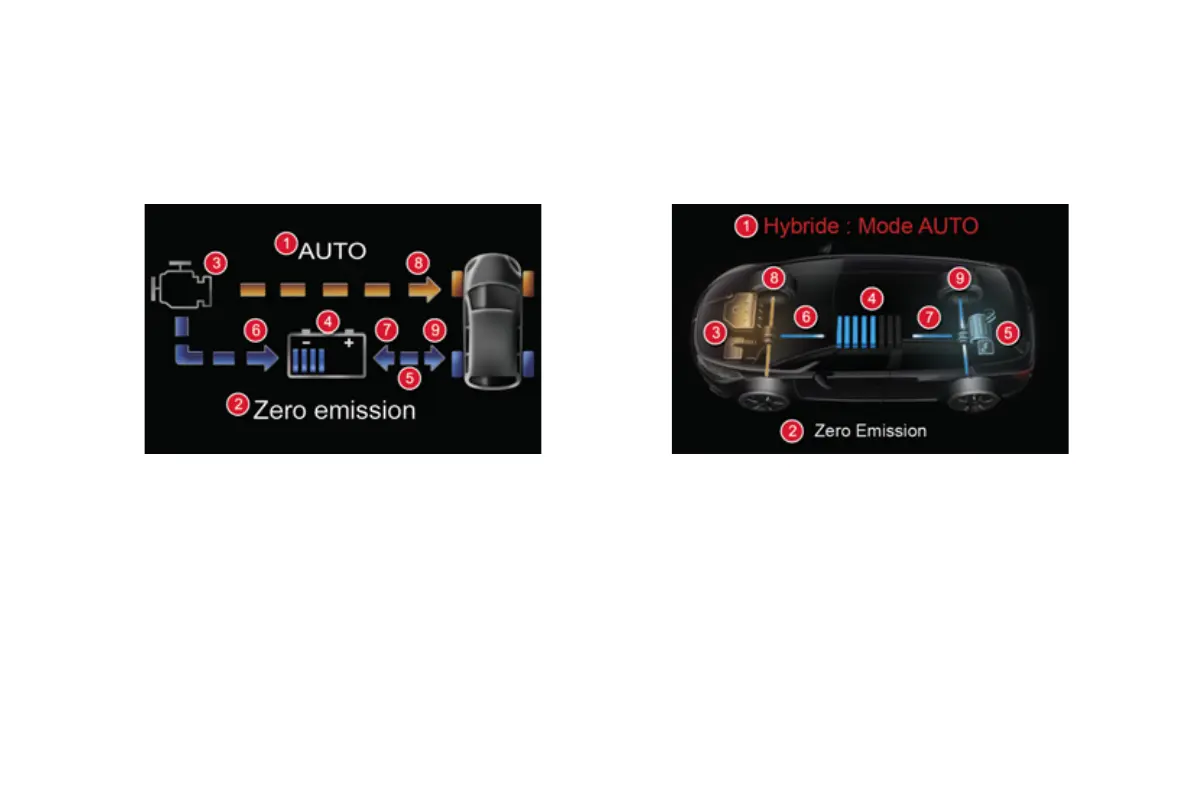

Display of fl ows in the instrument panel
Hybrid4 modes
1. Hybrid4 mode selected ( AUTO , ZEV , SPORT or 4WD ).
2. "Zero Emission" messages if the HDi Diesel engine is stopped
(0 g/km CO
2
).
Display of fl ows in the touch screen
Information on the Hybrid4 mode selected ( 1, 2 ), arrows for energy flows ( 6 to 9 ) and the state of charge of the high voltage battery ( 4 ), is displayed in
real time in the instrument panel screen or the touch screen.
See the "Trip computer" section.
Vehicle infrastructure
3. HDi Diesel engine.
4. State of charge of the high voltage battery.
5. Electric Motor/Generator.
Operation / Energy flows
6. The HDi Diesel engine supplies the battery (as needed).
7. Arrow from left to right: the battery powers the electric motor (when
the electric motor is operating).
Arrow from right to left: the electric motor/generator recharges the
battery (energy recovery phases).
8. The HDi Diesel engine drives the front wheels.
9. The electric motor drives the rear wheels.
