Series PC Manual V 1.0 - Rev. 3 – 03/01/01 DS Europe
7
3.3. INSTALLATION IN CYLINDERS

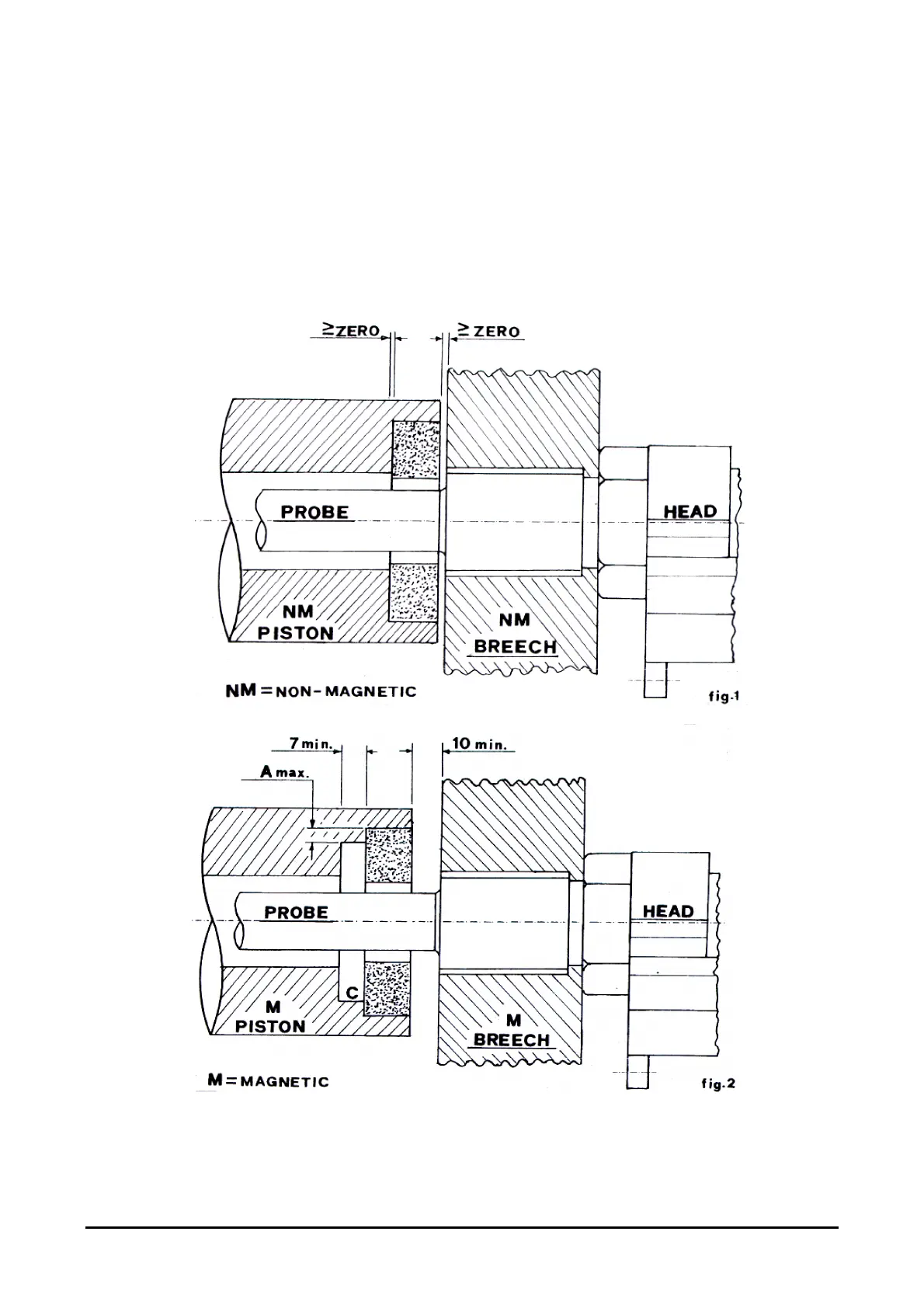

Installation inside cylinders (Fig. 1 - 2). You are advised to use system shown in Figure 1.
The one given in Fig. 2, where the surrounding parts are made of magnetic material (= M:
soft metal, usually steel), should be considered very carefully and possibly avoided if we
want to respect all the aforementioned conditions (section. 3.2).
The recommended distances (= limit) are indicated in Fig. 2 (mm).
A max. = 1/8 of the diameter (outside ) of the cursor
