8

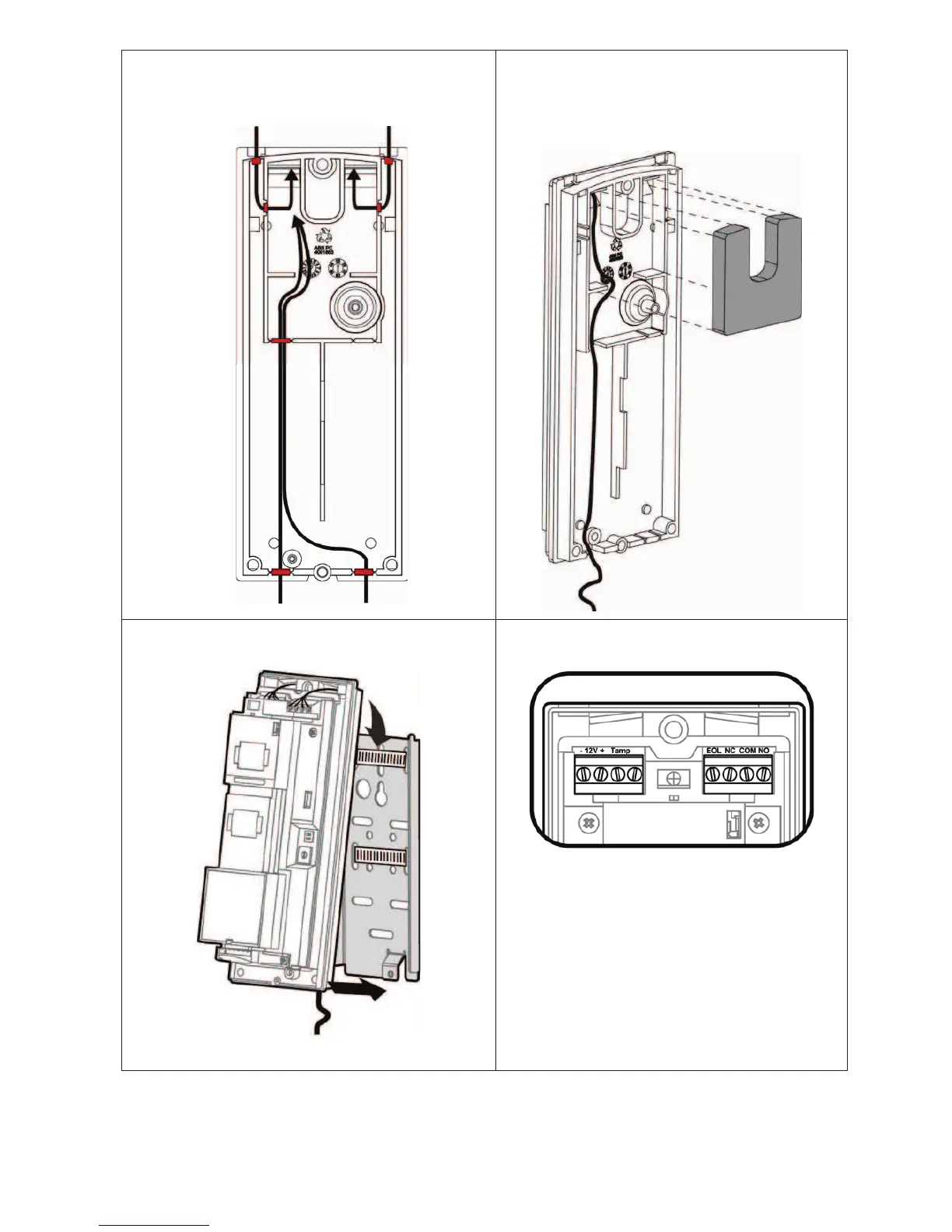

9. Break the relevant knockouts on the rear side of the
plastic base and slide the wires from the outside via the
paths and knockout to the internal side of the detector.
10. Attach the sealing “U” shaped Sponge Pad to the
wire opening from the rear side after the wires have
been connected and prior to final product affixing to
the mounted bracket.
11. Place the detector on the mounting bracket from top
side down and then lock the screw at the bottom.
12. Connect the wires to the terminal blocks
according to the following chapter.
