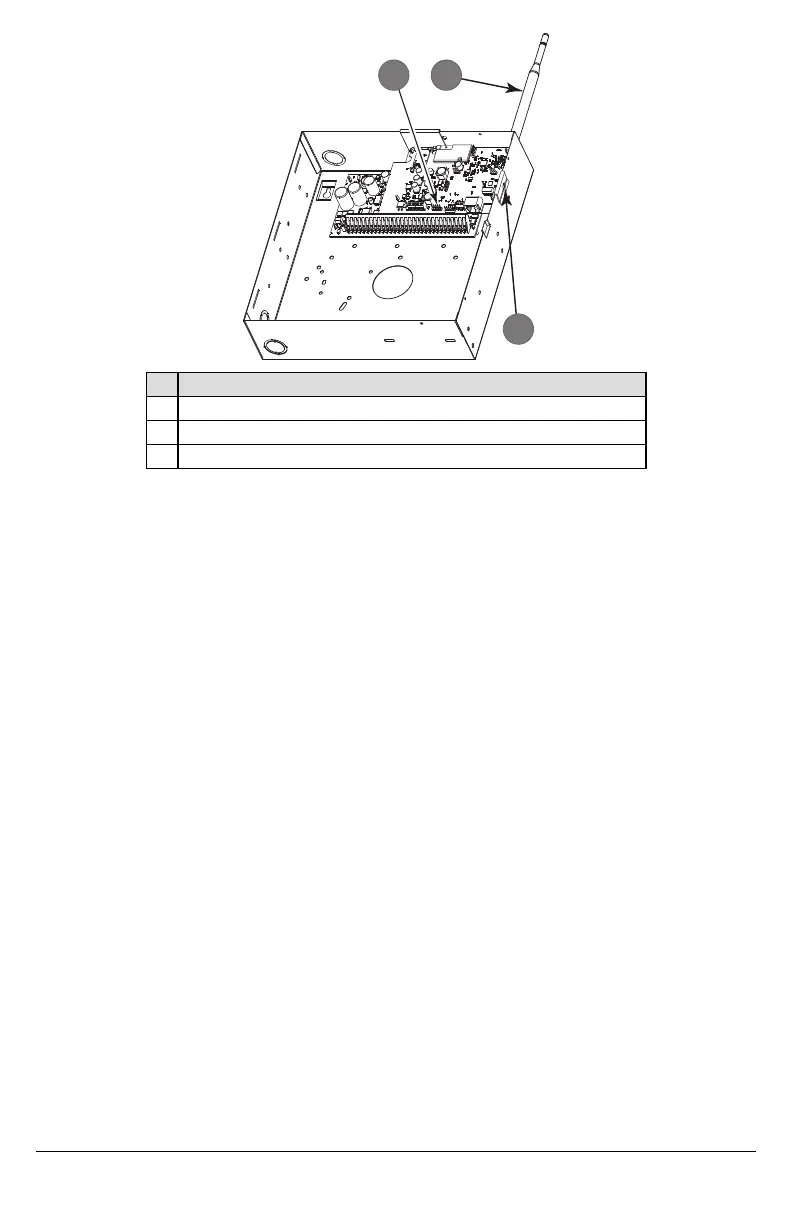

Figure 2: HS2016/2032/2064/2128 Control Panel
HS2016/2032/2064/2128
1 2
3
Item Description
1 PC-Link Cable Connector
2
Quad Band Whip Antenna - Use light pressure to attach antenna finger tight only
3 Screw
WARNING! - 3G2080(R)E/TL2803G(R) E modules are power limited. Do not route any wiring over the circuit board. Main-
tain at least 1in. (25.4mm) separation between circuit board and wiring. A minimum of ¼ in. (7mm) separation must be
maintained at all points between non-power limited wiring and power limited wiring.
3.
To electrically connect the communicator to the panel, perform the following steps (See Figure 3).
a. Disconnect both AC power and battery connections from the panel, and disconnect telephone line.
b. Confirm that the SIM card is inserted in the holder and locked.
4. Install Network Cable (TL2803G(R)E only). Route the CAT 5 Ethernet cable through back of the panel and plug it into
the communicator’s RJ45 jack.
NOTE: Before leaving the premises the Ethernet communication lines must first be connected to an approved (acceptable to
local authorities) type NID.All wiring shall be performed according to the local electrical codes.
