3. WP8010 INSTALLATION

D-306233 CUSDOC PM-10/30 V18 DSC TRIPLE EN INST 9

3.2 Connecting to the Telephone Line

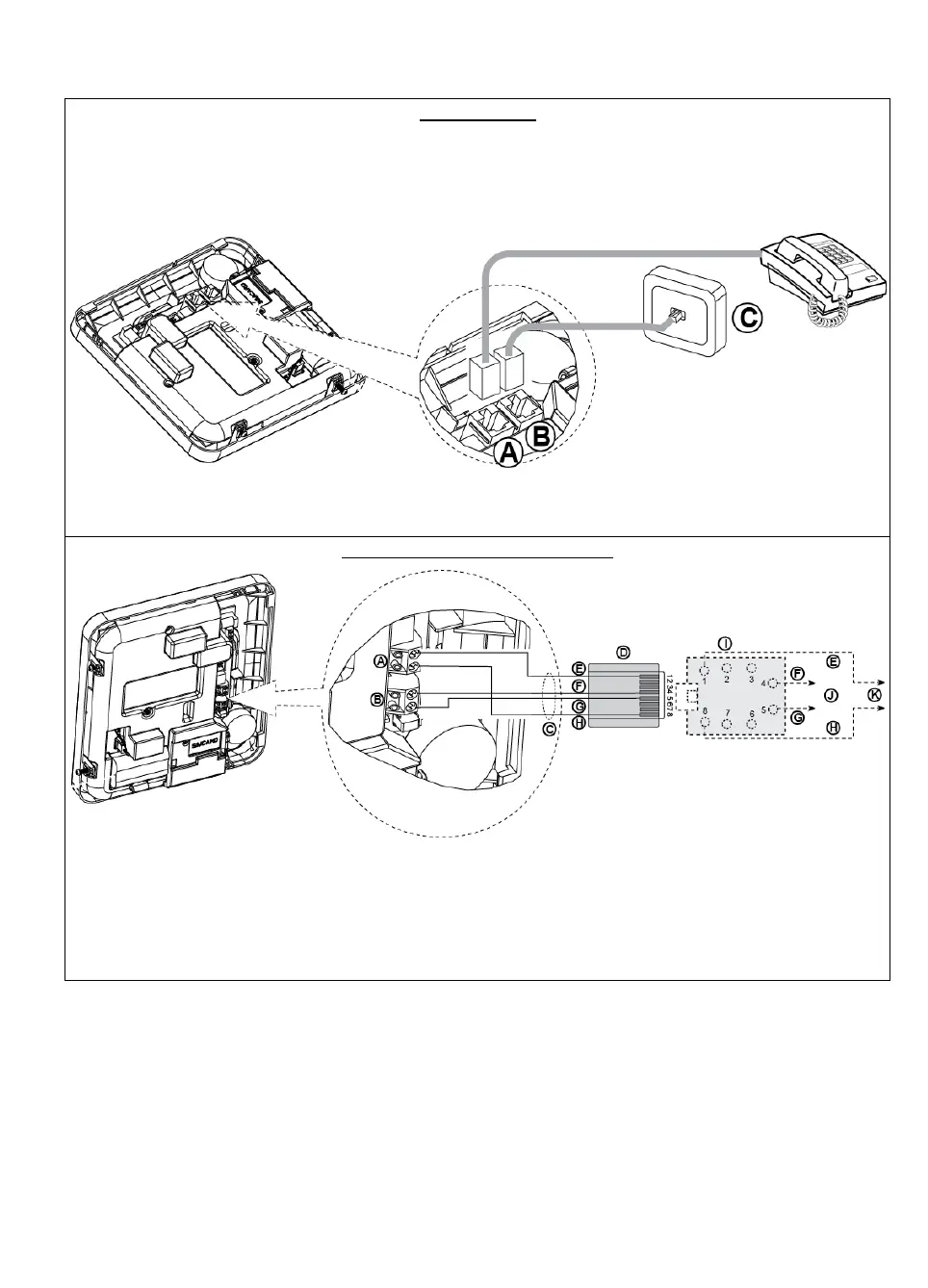

PHONE WIRING

Connect the telephone cable to the SET connector and connect the telephone line cable to the LINE connector

(through the desired wiring cable entry).

Notes:

1. The telephone cable should be no longer than 3 meters.

2. For UL installations, the telephone cable must be no less than 26 AWG.

A. SET

B. LINE

C. Tel line wall jack

PHONE WIRING IN NORTH AMERICA

A. SET

G. Green

B. LINE

H. Brown

C. RJ-31X cord

I. RJ-31X jack

D. 8-position RJ-31X plug

J. Line from street

E. Gray

K. House phones

F. Red

Figure 3.2 –Phone Wiring

This equipment is designed to be connected to the telephone network using an RJ11 connector which complies with

Part 68 rules and requirements adopted by ACTA and a properly installed RJ31X connector. See drawing above for

details.

In the case that RJ31X is not available (consult your telephone company or a qualified installer), the telephone line

should be connected to the WP8010unit first and then all other home equipment should be connected to the

WP8010"Phone" outlet.
