HD PVR Viewer’s Guide – UEC Page 10 of 62

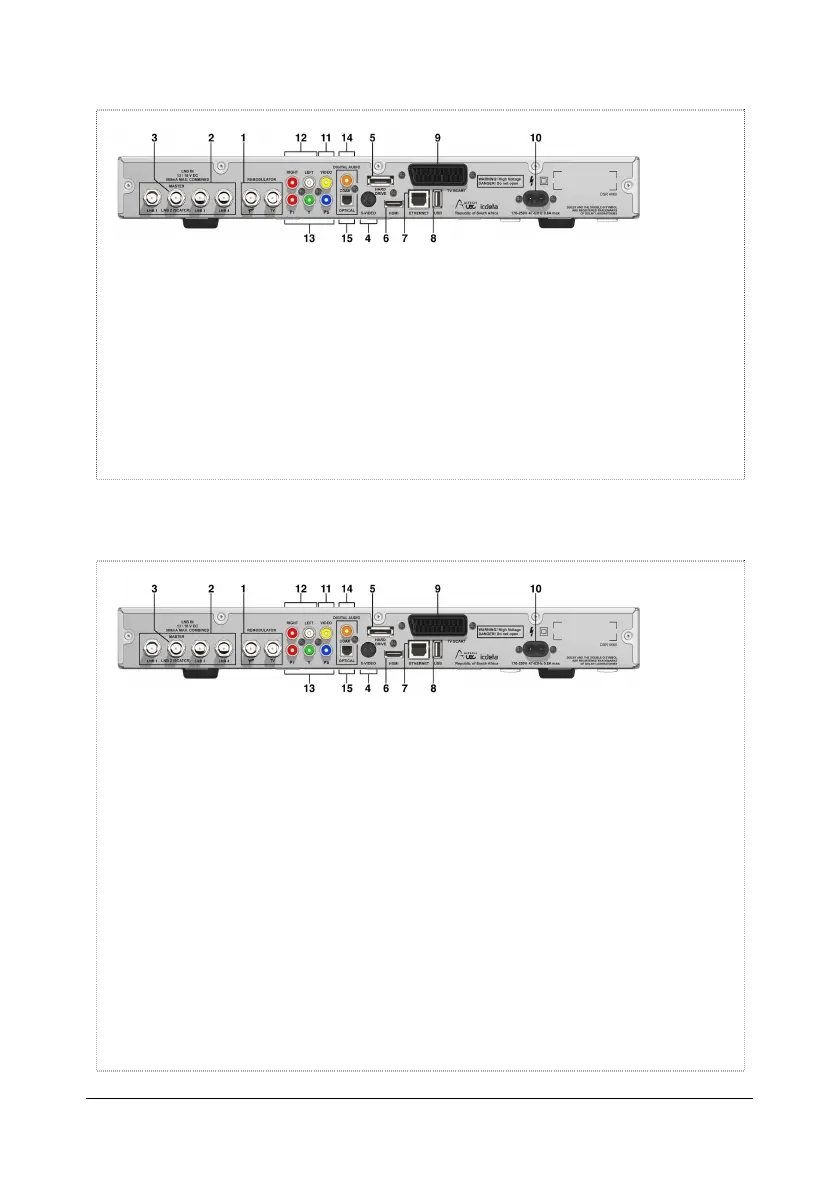

S ET - UP 1 : HD PVR AND 1 HD TV
➊
Connect the four satellite feeds to the four LNB inputs (#2) on the HD PVR. If using a
SatCR LNB feed, connect to LNB input 2 (#3).
➋
Connect the HDMI cable to the HDMI input on the HD TV and to the HDMI connector (#6)
on the HD PVR.
➌
Ensure that all connections are firm before you connect the power cable (#10) to the
power supply.
Note : The HDMI input on the HD TV must be HDCP compliant.
S ET - UP 2 : HD PVR, 1 HD TV AND A H OME T HEATRE S YSTEM
➊
Connect the four satellite feeds to the four LNB inputs (#2) on the HD PVR. If using a
SatCR LNB feed, connect to LNB input 2 (#3).
➋
Option A : Digital audio via HDMI
o Connect the HDMI cable to the HDMI input on the Home Theatre System and to the
HDMI connector (#6) on the HD PVR.
o Connect a second HDMI cable from the Home Theatre HDMI output, to the HD TV
HDMI input.
➌
Option B : Digital audio via Optical or Coaxial connectors
o Connect a S/PDIF optical cable from the digital audio connector (#15) on the HD PVR
to the Home Theatre’s optical input.
o Alternatively, connect a single phono-cable from the coaxial connector (#14) on the
HD PVR to the Home Theatre’s coaxial input.
➍
Ensure that all connections are firm before you connect the power cable (#10) to the
power supply
