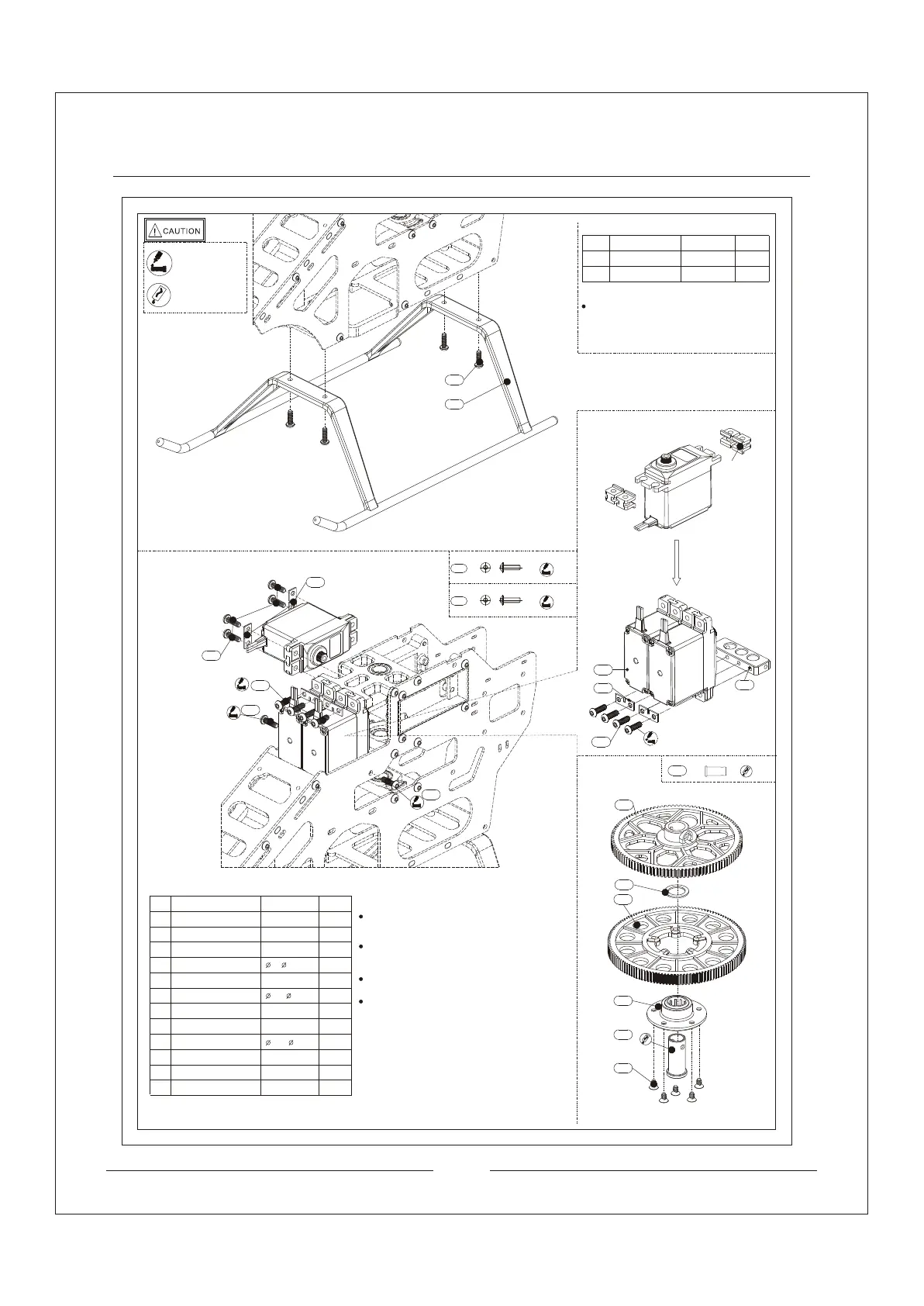

Use two M3*8 screws to lock the servo mo-
unting rod to the mainframe. Paste necessary
amount of thread-locking fiuld during the
installation.
Use pen head philips screw install the final
servo to the right frame servo hub.
Install the servos with the servo mounting rod
into the servo hub. Paste necessary amount
of thread-locking fiuld during the installation.
Install the rubber pads to all the servos first.
Then use pen head philips screw to fix the
servos into the servo mounting rod.
Lock the landing skid by pen head philips
screw.
Spacer
6pcs
120
048
6pcs
M3*12
Pen Head Philips Screw
119
2pcs
Pen Head Philips Screw
M3*8
119
048
Rubber pad
Hexagon Flat Head Screw
ST2.6*5
One Way Bearing Shaft
Gear Hub
133T
Main Gear
10* 14*0.8
Washer
ST3*10
Pen Head Philips Screw
Servo Mounting Rod
108T
Main Tail Drive Gear
1pcs
5* 10*4
045
4pcs
037
Servo: S48P
038
055
048
044
120
037
119
119
055
056
5pcs
054
052
044
050
4.5* 10*5
3pcs
1pcs
10pcs
1pcs
1pcs
1pcs
056
055
054
050
052
064
037
064
037
4pcs
1pcs
Pen Head Philips
Screw
ST3*10
Landing Skid
Apply amount
of T43 thread-
locking fiuld
Apply little am-
ount lubricants
