9

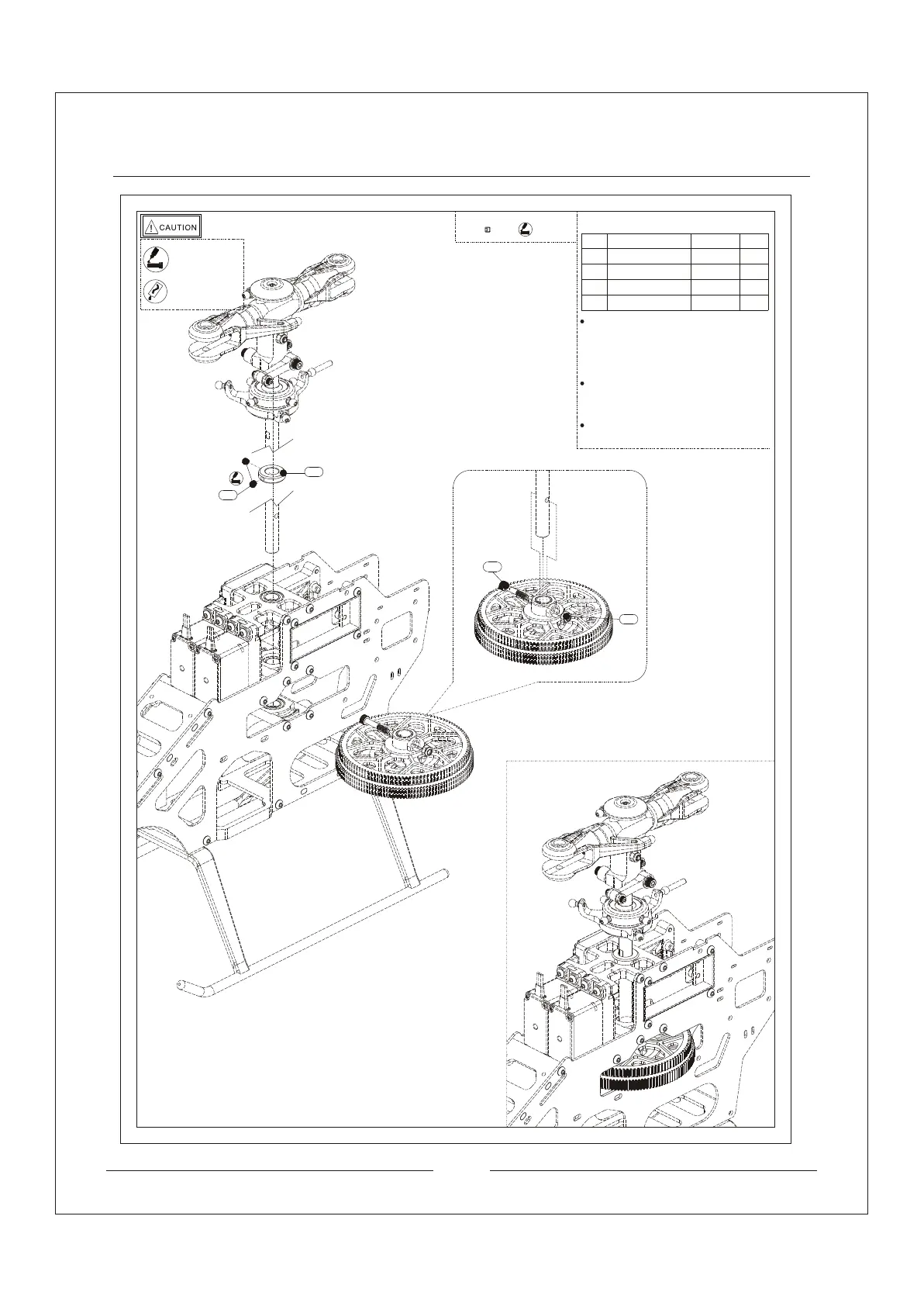

Install the main shaft retaining collar into the
main shaft. Align the holes from main shaft
and gear and fix them by the M3*18 screw.
Don't apply too much force when fastening
the screws or they will be damaged as well
as the parts.
Pull up the rotor housing tightly. Fasten the
retaining collar to the main shaft retaining
collar surface. Use M3*3 kimi screw to lock
them and pasted with thread-locking fiuld.
After the complete installation, make sure
the rotor housing moves smoothly.
032
031
2pcs
1pcs
011
1pcs
032
031
011
051
051
1pcs
Main Shaft Retaining
Collar
M3*3mm
Kimi Screw
Nylon Lock Nut
M3
Pen Head Philips
Screw
M3*18
Complete setup diagram
Apply amount
of T43 thread-
locking fiuld
Apply little am-
ount lubricants
No
Description
Qty
need
Specification
To Next Page
