Terminals and Connections.

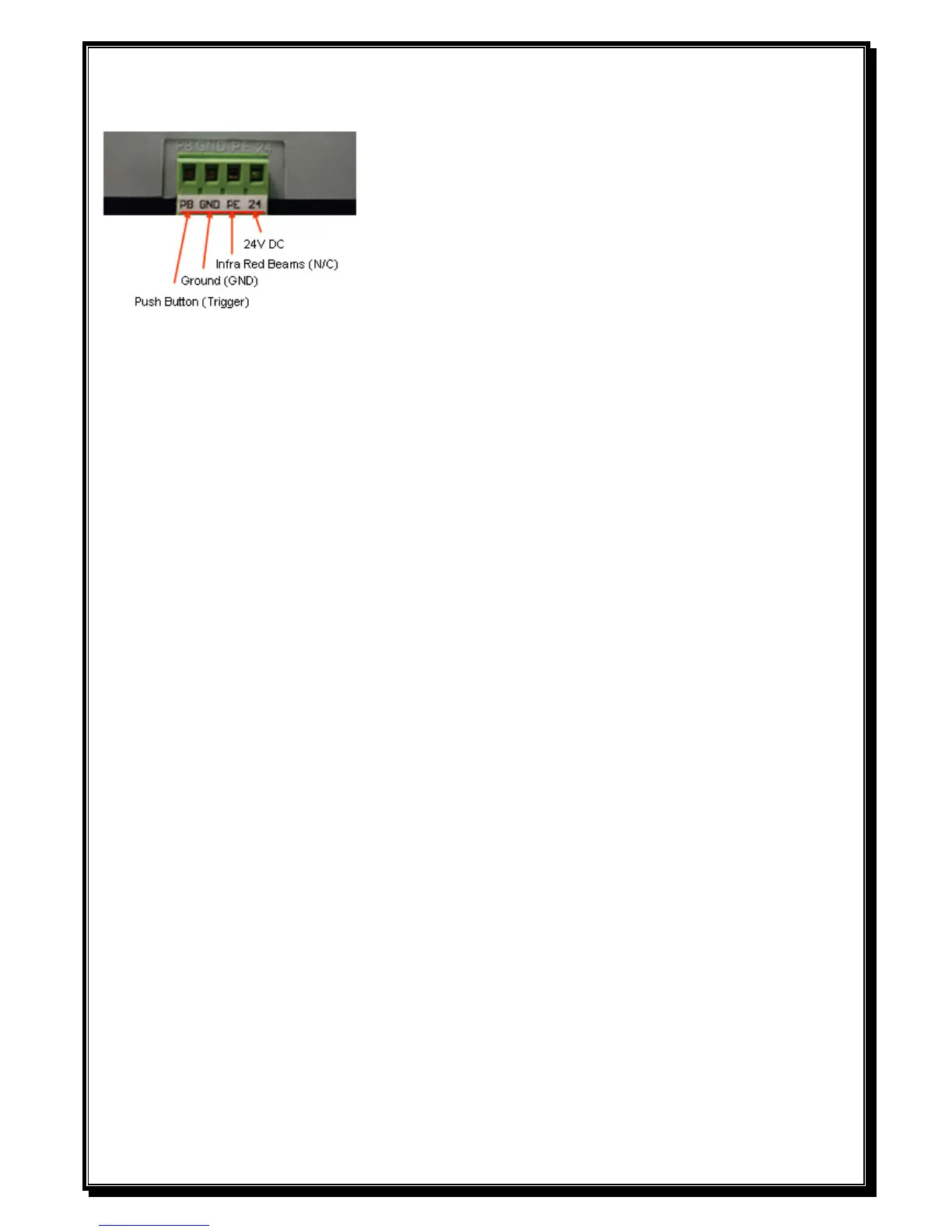

1) GND & PB = Push Button terminals. Step by step command input (open, stop, close) same as the step by step button on the
transmitter.
2) GND & PE = Photo beam terminals.
3) 24V & GND & PB = Plug in receiver terminals.
To safeguard the operator and avoid damaging components while wiring, disconnect the unit from all power when working on
it.
Remember that there are specific strict standards that must be complied with in regards to both the safety of the electrical
systems and the automatic doors.
Only qualified, trained personnel may carry out the installation and subsequent maintenance.
Whoever installs and uses the DTS600/800 door opener will be held responsible for any damage caused.
NOTE: Contact DTS Security Products technical department for the wiring diagram for the above connections if uncertain of
the correct procedures.
Programming the Unit.
The system must be checked and tested when connections are completed.
4.1) Check that the chain support is halfway so that movement is problem free both in opening and closing.
Make sure that all the standards relative to the automatic gates and doors category have been observed.
4.2) Now carry out a test with the door disconnected from the motor and open and close the door to verify that the mechanical
parts are all in good working order and the door does not bind or jam in its tracks.
4.3) Power the unit. As soon as the unit is powered, the system displays a 7 segment LED number from 0 – 9 and the lamp will
turn on for 2 seconds.
4.3.1) If the LED display is upside down, press the SET (K1) button once, then the LED will display the number in the correct
direction.
The system will remember the display direction. It will display correctly the next time the power is turned back on.
4.3.2) If this is not the case, switch the power off immediately and check connections carefully.
4.4) Check that all the safety devices on the unit are working properly (emergency stop, photo beam, etc.). This is one of the
most important checks and must be done with great care, in fact, the active safety of the automatic door depends on the
correct functioning of the safety devices. The reversing sensitivity device is of great help in minimizing damage but only
the correct installation of the safety devices will make it possible to stop the door before it can cause any damage or injury
to person and/or property.
4.5) It is now time to set the opening and closing position.
