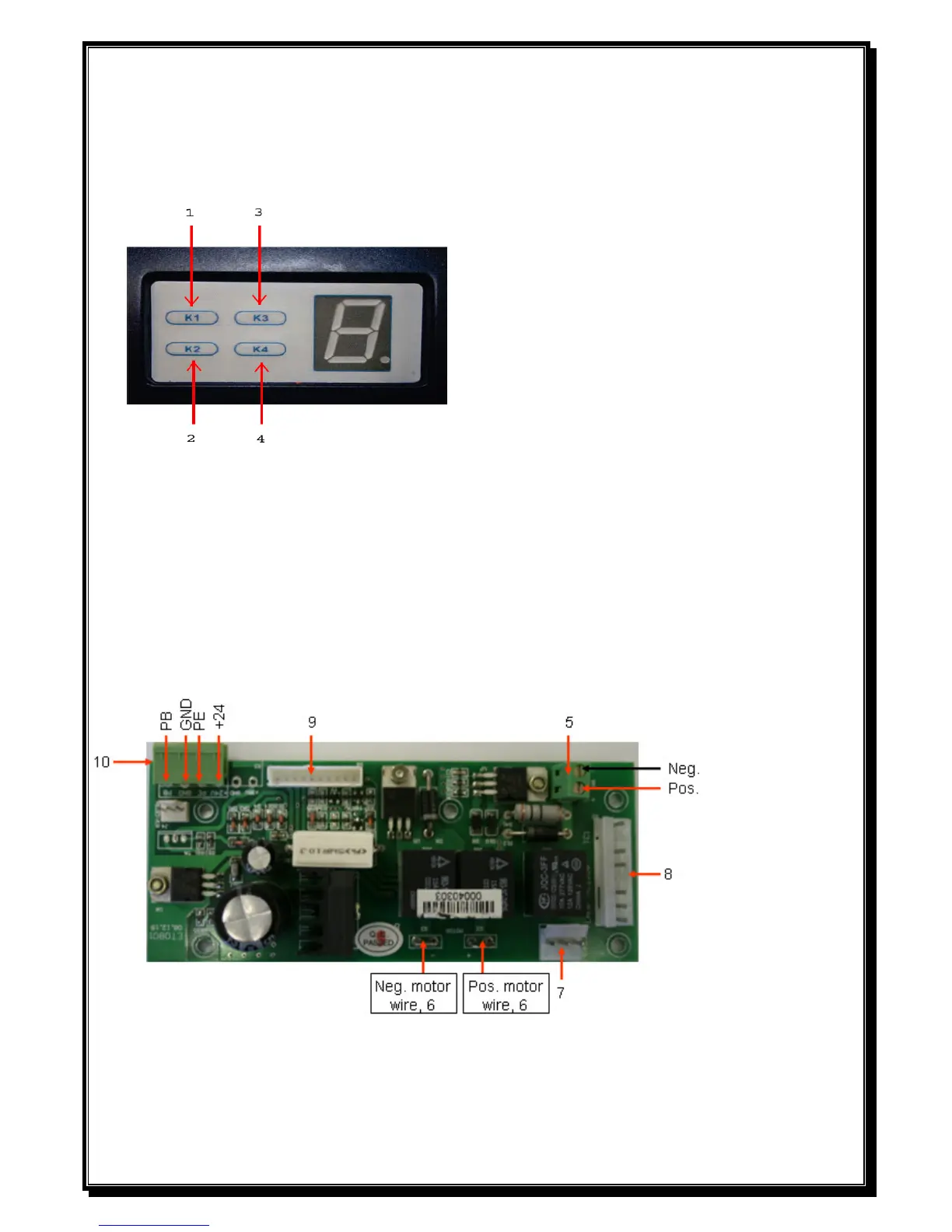

Operating Controls.

1 SET Button (K1) - Confirm set and Reversing sensitivity.

2 CODE Button (K2) - Transmitter code set.

3 UP Button (K3) - Limit mode set.

4 DOWN Button (K4) - Limit mode set

Circuit Board Connections.

5 Coupling for connecting the backup battery.

6 Coupling for connecting the motor.

7 Coupling for the power transformer.

8 Terminal for connecting of power input, run lamp and transformer.

9 Terminal connector to the control board.

10 Terminal connections for photo beam and push button.

PB = Push button, GND = Common & Neg., PE = Beams, +24 = 24VDC.
