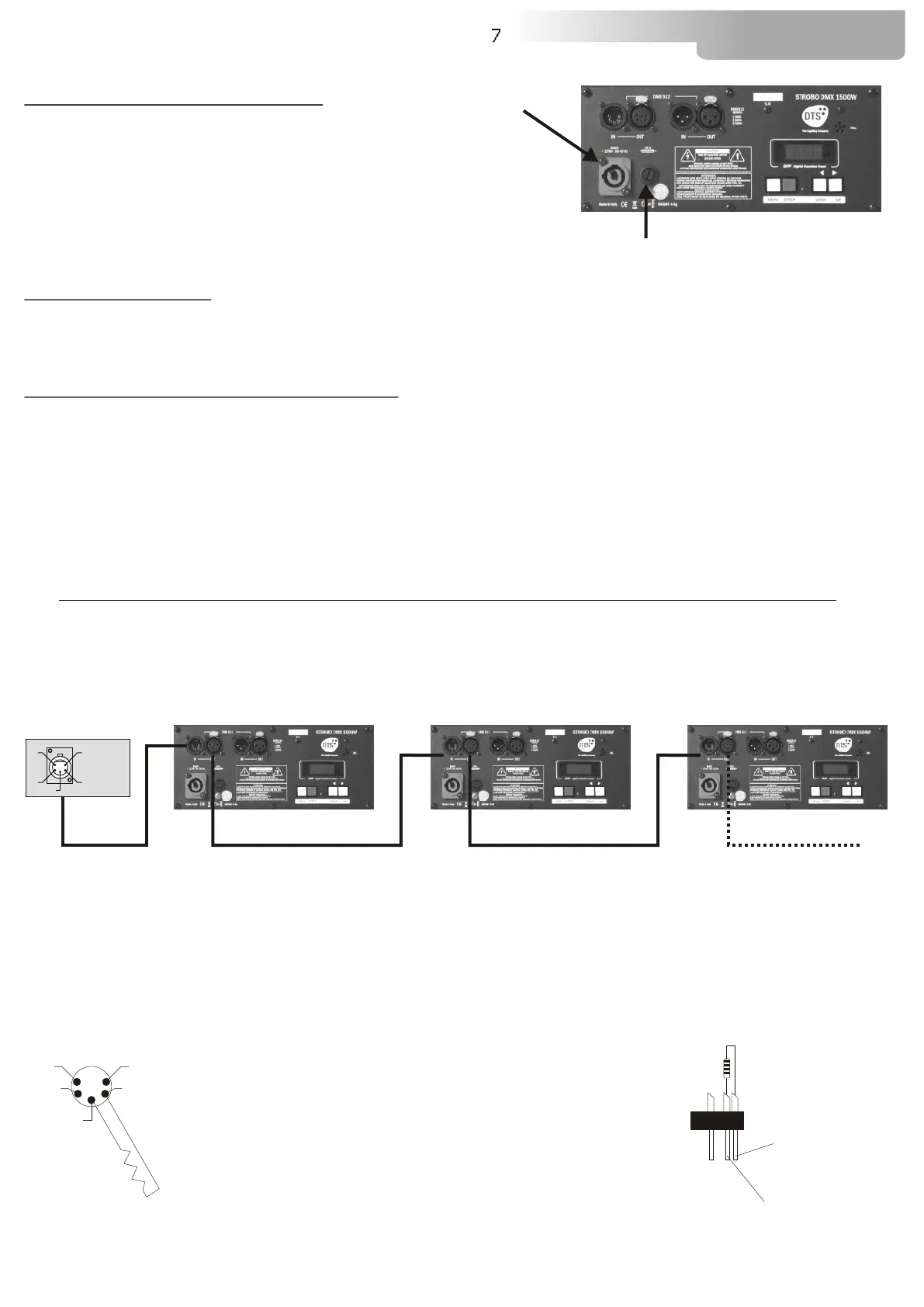

5- MAINS CONNECTION
DMX STROBE operate at 230 VOLT 50-60 Hz.
Prior to connecting the unit to your mains supply,
ensure that the model in your possession correctly matches
the mains supply available. For connection purposes,
ensure that your plug is capable of supporting 16 amps at 230V,
Strict adherence to regulatory norms is strongly recommended.
5.1- Protection
The use of a thermal magnetic circuit breaker is recommended for each DMX STROBE.
A good earth connection is essential for the correct operation of the projector.
6- DMX SIGNAL CONNECTION
The unit operates using the digital DMX 512 (1990) signal. Connection between the mixer and the unit or
between units must be carried out using a two pair screened ø 0.5 mm cable and a CANNON XLR 5 or 3
pins connector.Ensure that the conductors do not touch each other.Do not connect the cable ground to
the XLR chassy
The plug housing must be isolated. Connect the mixer signal to the DMX IN projector plug and connect
it to the next projector by connecting the DMX OUT plug on the first projector to the DMX IN plug of the
second one.
In this way, all the projectors are cascade connected.
NB. If the display showing the DMX address flashes, then one of the following errors has occurred:
- DMX signal not present
- DMX address not valid
- DMX reception problem
For Installations where long distance DMX cable connections are needed,we suggest to use a Dmx
terminator.
The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor between pin 2 and 3.
The DMX terminator must be plugged into the last unit (DMX out panel connector) of the DMX line.
5
3
4 2
1
1=GND
2=DATA-
3=DATA+
CONTROLLER
S TA N D A R D
D M X 5 1 2
15
PLACE A 120 OHM RESISTOR BETWEEN PIN 2
AND 3 OF A MALE XRL CONNECTOR AND PLUG IT
INTO THE DMX OUT PANEL CONNECTOR OF THE
LAST UNIT CONNECTED TO THE DMX LINE
2
4
OUT
3
PIN 3
120 ohm
PIN 2
7
DMX STROBE
230 Volt 50/60 Hz
FUSE 16 A
