7- DISPLAY FUNCTIONS
DISPLAY FUNCTIONS

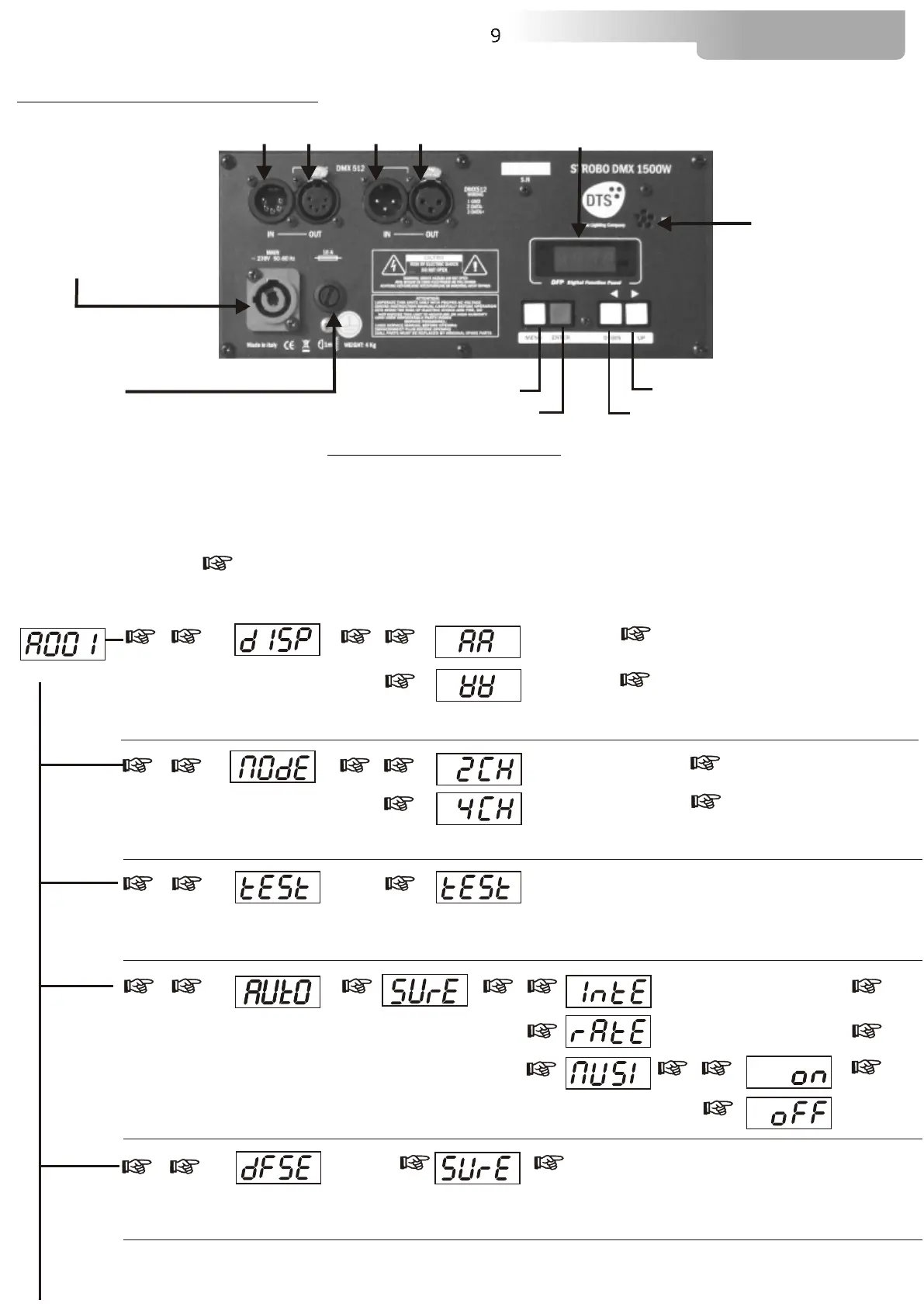

The DMX STROBE display panel shows all the available functions . Using these functions, it is
possible to change some of the parameters and add some functions. Changing the DTS setting
can vary the functions of the unit so that it does not respond to the DMX 512 used to control it.
Carefully follow the instructions below before carrying out any variations or selections.
NOTE: the symbol shows which key has to be pushed to obtain the desired function.
Up-DownMENU ENTER
DMX MODE
To select DMX mode : 2-4 channels
2 CHANNELS
4 CHANNELS
Up-Down
Up-Down
ENTER
ENTER
Up-Down
MENU
ENTERUp-Down
REVERSE DISPLAY
Reverses display's reading depending on
the mounting position
(On the ground or suspended).
Floor
position
Suspension
position
ENTER
ENTER
9
DMX STROBE
Up-Down
TEST MODE
Unit test.
ENTER
MENU
Up-Down
MENU ENTER
AUTOMATIC MODE
Automatic game without DMX controller
Up-Down
Intensity (0-255)
Strobe rate (0-255)
Up-DownENTER ENTER
Up-Down
Up-Down
ENTER
Up-DownENTER
ENTER
Up-Down
Musical strobe function
Unit test with strobe at different frquencies
DEFAULT
To restore default setting
MENU
Up-Down
ENTER ENTER
DMX IN DMX OUT
DISPLAY
MENU
ENTER
DOWN
UP
MAINS
230V 50 / 60Hz
FUSE
16 A
DMX IN DMX OUT
MICROPHONE
