7- IMPORTANT SAFETY INFORMATION
7.1 Fire prevention:
Never locate the fixture on any flammable surface.
Minimum distance from flammable materials: 10 cm.
Minimum distance from the closest illuminable surface: 30 cm.
Replace any blown or damaged fuses only with those of identical value (3,15 AT).
7.2 Prevention from electric shock:
High voltage is present inside the unit.
Unplug the unit prior to performing any operation which involves touching the inside of
the unit.
This equipment must be grounded, do not connect to non-grounded supplies.
The use of a thermal magnetic circuit breaker is recommended for each SCENA LED
150 unit.
Use only AC supplies 90-260V, 50 / 60 Hz.
SCENA LED 150 should never be located in position exposed to rain or in areas of
extreme humidity.
A good air ventilation is essential for proper equipment work.
7.3 Safety:
The external surface of the unit may exeed 50°C; never handle the unit until at least 5
minutes have elapsed since the unit was turned off.
Never install the unit in an enclosed area lacking sufficient air flow.
The ambient temperature should not exeed 40°C and should not be lower than -10°C.

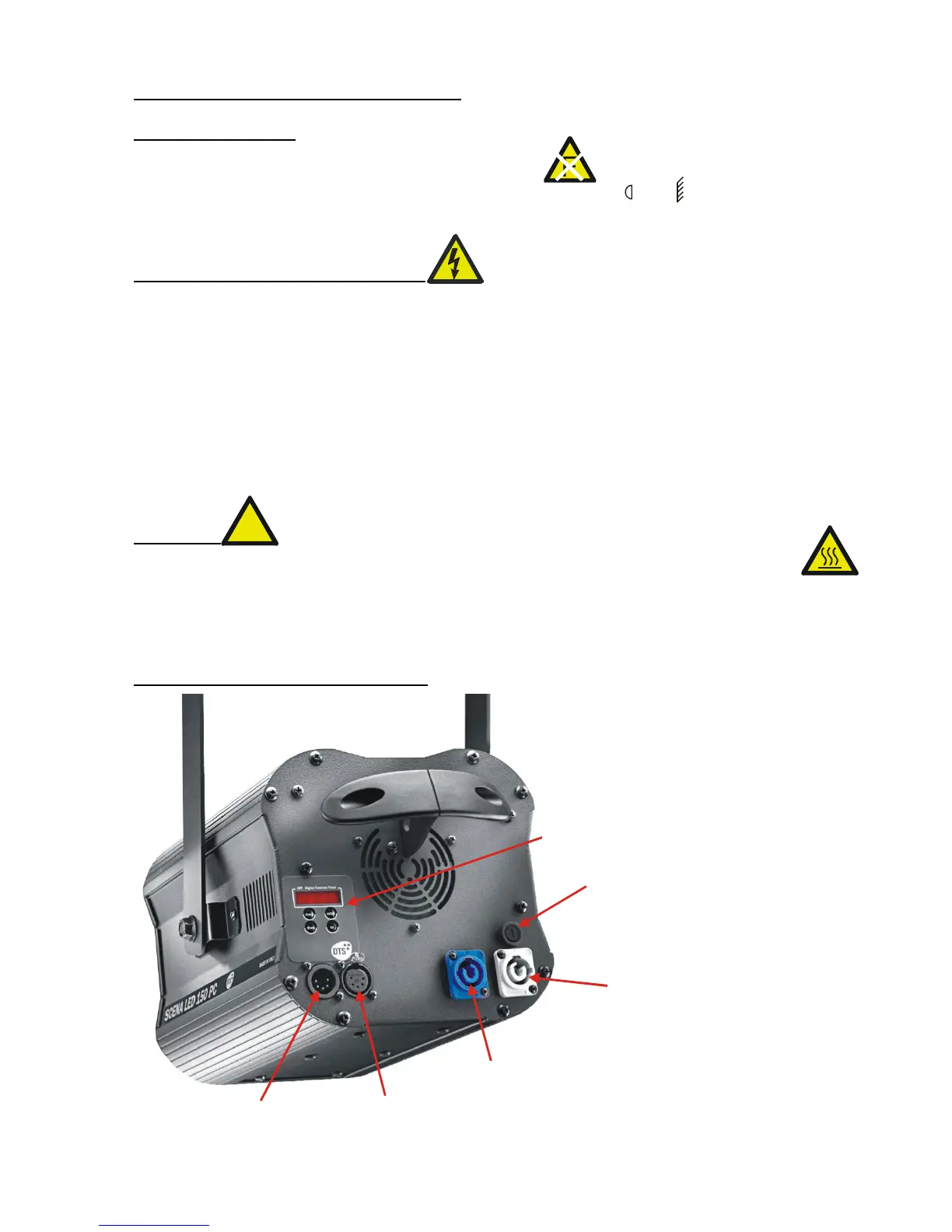

8- INPUT / OUTPUT CONNECTIONS
FUSE 3,15 AT
DMX OUT
XLR 5 Pins Male
Panel Connector
MAINS AC INPUT
90-260V 50/60 Hz
DMX IN
XLR 5 Pins Female
Panel Connector
DISPLAY PANEL
MAINS AC OUTPUT
90-260V 50/60 Hz
(MAX 14 SCENA LED 150 UNITS
@ 230V ;
MAX 7 SCENA LED 150 UNITS
@ 120V)
F
!
30cm
