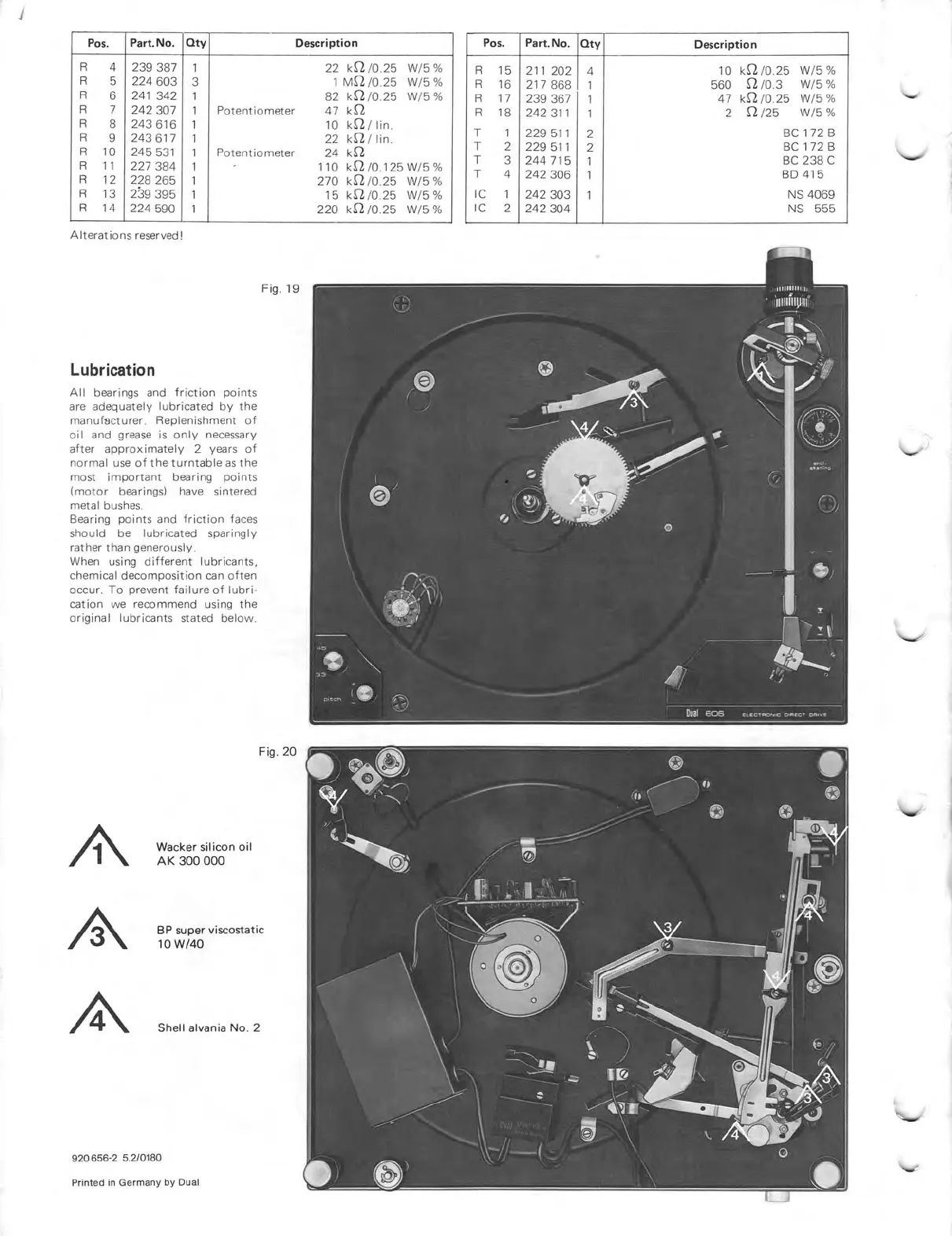

Dual 606 - Lubrication

Pos. Part.No. Qty Description
R
4
239 387
1
22 kS2 /0.25 W/5 %
R
5
224
603
3 1
MS2/0.25 W/5%
R
6
241
342 1
82
k2/025 W/5%
R 7 242
307 1
Potentiometer
47 kS2
R
8
243
616 1
10 k2/ l in.
R
9
243
617 1
22 k2/ l in.
R
10
245 531
1 Potentiometer 24 I<S2
R
11
227
384 1
110
kS - 2 /0.125
W/5 %
R
12
228
265
1
270
k2/0.25 W/5%
R
13
239395
1
15
k2/0.25 W/5%
R
14
224
590
1
220 k2
/0.25 W/5%
Alterations
reserved!
Fig. 19
Lubrication
All bearings and friction points
are adequately
lubricated by the
manufacturer.
Replenishment of
oi l
and grease is only necessary
after approximately
2 years of
normal use of the turntable as the
most important bearing points
(motor
bearings) have sintered
metal
bushes.
Bearing points and friction faces
should be lubricated sparingly
rather than generously.
When using different lubricants,
chemical decomposition can often
occur. To prevent failure of lubri-
cation vve recommend using the
original lubricants stated below.
Fig. 20
Wacker silicon oil
AK 300 000
BP
super viscostatic
10 W/40
Shell
alvania No. 2
920656-2
5.2/0180
