Dual 606 - Table of Contents

Contents
Page
1
Technical data
2 Audio
connection diagram
3
Wiring
diagram
4
Dual EDS 500
electronic direct drive system
4
Replacement
of motor electronics
4
Replacement of motor mechanic
5 Adjustment of nominal speeds
5 Setting 78 rpm nominal speed
5
Stroboscope
5
Pitch
control
5
Tonearm and tonearm suspension
6
Removal of tonearm or spring housing
6
Removal of tonearm compl
. with tonearm suspension
6
Adjustment of tonearm suspension
6
Fitting a
1/2 inch cartrige
6
Antiscating
control
7
Cue control
7 Replacement of cue control assembly
7
Tonearm control
7
Adjustment point
7 Muting
switch
8
Start
ing and shut-off
8
Adjustment points: Segment
8
Power switch
8— 12
Replacement with exploded views
12
Lubrication

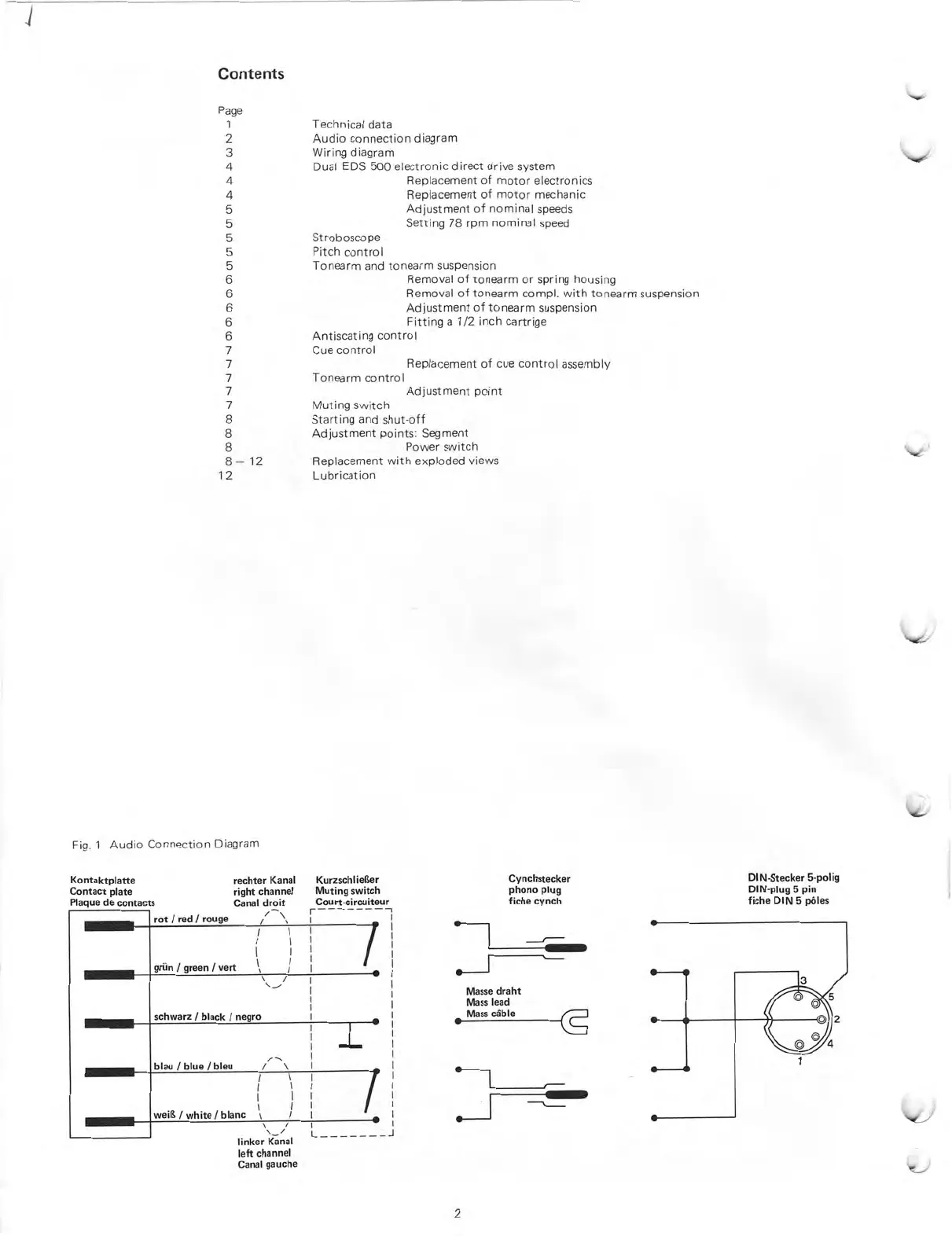

Fig. 1
Audio
Connection
Diagram
Kontaktplatte
Contact plate
Plaque
de contacts
rechter Kanal
Kurzschließer
Cynchstecker
DIN-Stecker
5-polig
right
channel
Muting
switch
phono plug
DIN-plug 5 pin
Canal droit
Court-circuiteur
fiche cynch
fiche DIN
5 pöles
rot / red /
rouge
1
I
I I
I I
grün / green / vert
I
schwarz / black / negro
blau / blue / bleu / \
•
/ \
I
weiß / white /
blanc /
•—/ L
linker Kanal
left
channel
Canal gauche
•
Masse draht
Mass lead
Mass cäble
•
•
2
