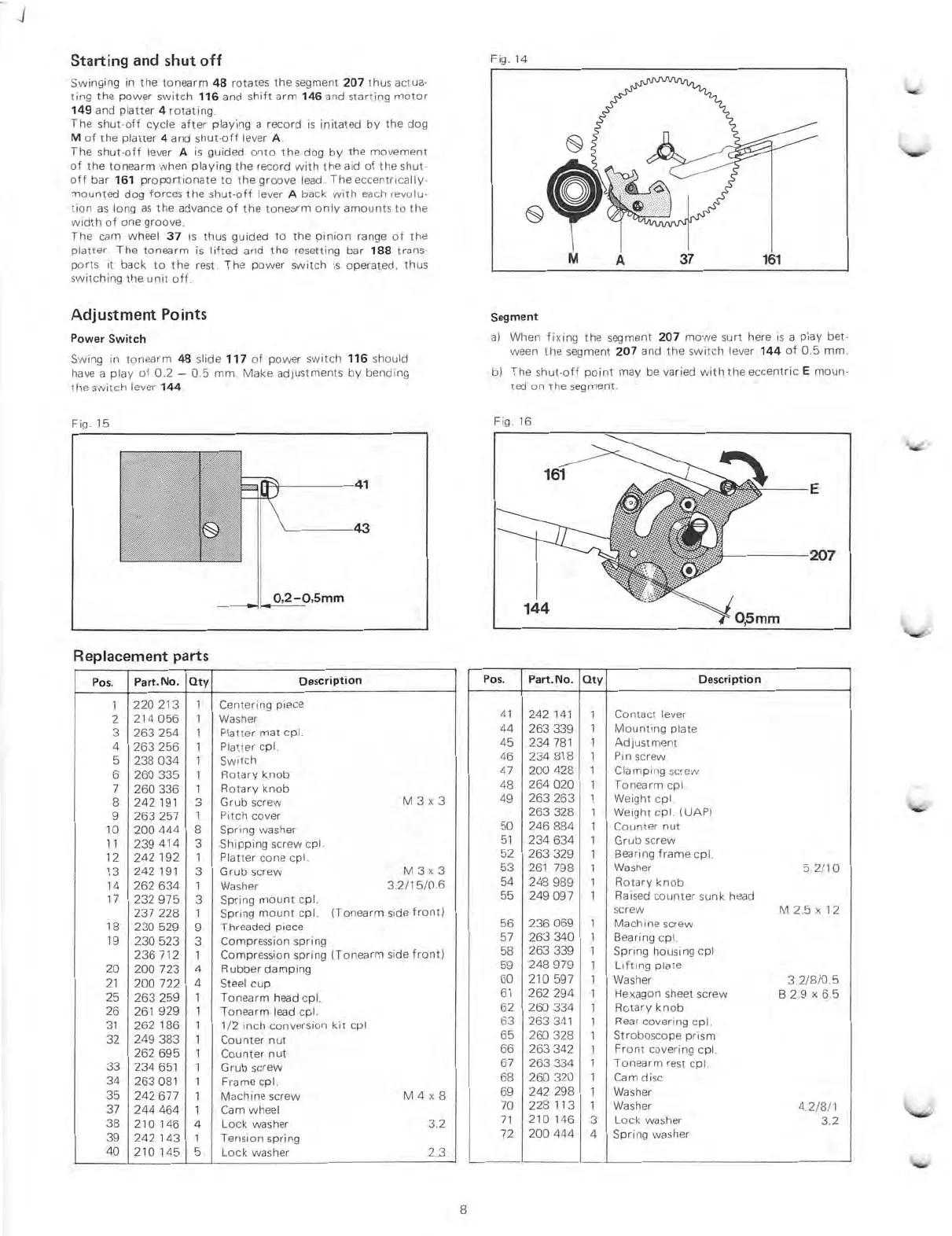

Dual 606 - Starting and shut off; Power Switch

.1
Start ing
and shut off
Swinging in the tonearm 48 rotates the segment 207 thus actua-
ting the power switch 116 and shift arm 146 and starting motor
149 and platter 4 rotat
ing.
The shut-off cycle after playing a record is initated by the dog
M of the platter 4 and shut-off lever A.
The shut-off lever
A is
guided onto the dog
by the movement
of the tonearm when
playing the record with the aid of the shut-
off bar
161 proportionate to the groove lead.
The eccentrically-
mounted dog forces the shut-off lever A back with each revolu-
tion as long as the advance of the tonearm only amounts to the
width of one groove.
The cam
wheel '37 is thus guided to the pinion
range of the
platter.
The tonearm is lifted and the resetting bar 188 trans-
ports it back to the rest. The power switch is operated, thus
switching the unit
off.
Adjustment
Points
Power
Switch
Swing in tonearm
48 slide 117 of power switch 116 should
have a play of 0.2 —
0.5 mm. Make adjustments by bending
the switch lever 144.
Fig.
15
Replacement parts
Pos. Part.No. Qty
Description
1
220 213
1 Centering
piece
2 214 056 1
Washer
3 263 254
1 Platter
mat cpl.
4 263 256
1 Platter
cpl.
5 238 034
1 Switch
6 260 335 1
Rotary knob
7
260 336 1 Rotary
knob
8 242 191 3 Grub screw
M
3 x 3
9 263
257 1 Pitch cover
10 200 444 8 Spring
washer
11 239
414 3 Shipping
screw cpl.
12 242 192 1 Platter cone cpl.
13 242 191 3 Grub screw
M 3 x 3
14
262 634 1
Washer
3.2/15/0.6
17
232 975 3
Spring
mount cpl.
237 228 1 Spring mount cpl.
(Tonearm side
front)
18 230 529 9
Threaded piece
19 230 523 3 Compression spring
236 712 1 Compression spring
(Tonearm side
front)
20 200 723 4
Rubber damping
21
200 722 4 Steel
cup
25 263 259 1 Tonearm head cpl.
26 261 929 1 Tonearm lead cpl.
31
262
186 1 1/2 inch
conversion
kit cpl.
32 249 383
1 Counter nut
262 695 1 Counter nut
33 234 651 1 Grub screw
34
263 081 1 Frame cpl.
35 242 677
1 Machine screw
M 4 x 8
37 244 464 1 Cam wheel
38 210 146
4 Lock
washer
3.2
39
242 143
1 .
Tension spring
40
210
145 5
Lock
washer 2.3
Fig. 14
Segment
a)
When fixing the
segment 207 mowe surt
here is a play bet-
ween the
segment 207 and the
switch lever 144 of 0.5
mm.
b) The
shut-off point may be varied
with the eccentric E moun-
ted on the segment.
Fig.
16
Pos. Part.No. Qty
Description
41 242 141 1 Contact lever
44 263 339 1 Mounting plate
45 234
781 1 Adjust ment
46 234 818 1 Pin
screw
47 200 428 1 Clamping screw
48
264 020 1 Tonearm cpl.
49 263 263 1
Weight cpl.
263 328
1 Weight cpl. (UAP)
50
246 884 1 Counter nut
51
234 634 1 Grub screw
52 263 329 1 Bearing
frame cpl.
53 261 798 1 Washer
5.2/10
54
248 989 1 Rotary knob
55 249 097 1
Raised counter sunk head
screw
M 2.5 x 12
56 236 069 1 Machine screw
57 263 340 1 Bearing cpl.
58 263 339 1
Spring housing cpl.
59 248 979
1 Lifting plate
60 210 597 1 Washer
3.2/8/0.5
61 262 294 1
Hexagon sheet screw
B 2.9 x 6.5
62 260 334 1 Rotary knob
63 263 341 1
Rear covering cpl.
i 65 260 328 1
Stroboscope prism
66 263 342 1 Front covering cpl.
67 263 334 1
Tonearm rest cpl.
68 260 320 1
Cam disc
69 242
298 1 Washer
70 228
113 1 Washer
4.2/8/1
71 210
146 3 Lock
washer
3.2
72
200 444 4
Spring washer
8
