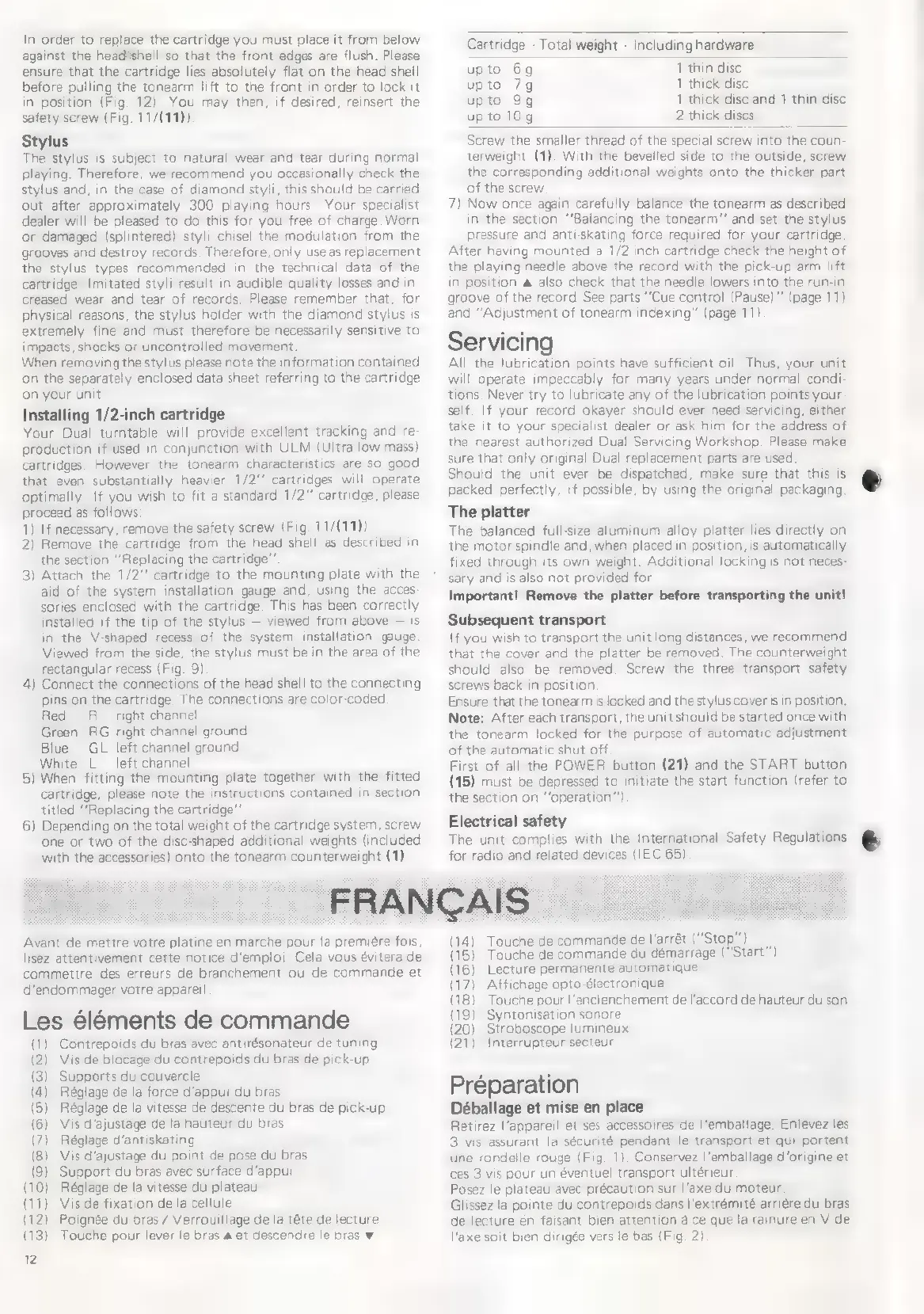

Page #12 background imageLoading...
Page #12 background image
In
order
to
replace
the
cartridge
you
must
place
it
from
below
against
the
head'shell
so
that
the
front
edges
are
flush.
Please
ensure
that
the
cartridge
lies
absolutely
flat
on
the
head
shell
before
pulling
the
tonearm
lift
to
the
front
in
order
to
lock
it
in
position
(Fig.
12).
You
may
then,
if
desired,
reinsert
the
safety
screw
(Fig.
11/(11))
Stylus
The
stylus
is
subject
to
natural
wear
and
tear
during
normal
playing.
Therefore,
we
recommend
you
occasionally
check
the
stylus
and,
in
the
case
of
diamond
styli,
this
should
be
carried
out
after
approximately
300
playing
hours,
Your
specialist
dealer
will
be
pleased
to
do
this
for
you
free
of
charge.
Worn
or
damaged
(splintered)
styli
chisel
the
modulation
from
the
grooves
and
destroy
records.
Therefore,
only
use
as
replacement
the
stylus
types
recommended
in
the
technical
data
of
the
cartridge.
Imitated
styli
result
in
audible
quality
losses
and
in
creased
wear
and
tear
of
records.
Please
remember
that,
for
physical
reasons,
the
stylus
holder
with
the
diamond
stylus
is
extremely
fine
and
must
therefore
be
necessarily
sensitive
to
impacts,
shocks
or
uncontrolled
movement.
When
removing
the
stylus
please
note
the
information
contained
on
the
separately
enclosed
data
sheet
referring
to
the
cartridge
on
your
unit
Installing
1/2-inch
cartridge
Your
Dual
turntable
will
provide
excellent
tracking
and
re-
production
if
used
in
conjunction
with
ULM
(Ultra
low
mass)
cartridges.
However
the
tonearm
characteristics
are
so
good
that
even
substantially
heavier
1/2‘
cartridges
will
operate
optimally.
If
you
wish
to
fit
a
standard
1/2"
cartridge,
please
proceed
as
follows:
1)
If
necessary,
remove
the
safety
screw
(Fig.
11/(11))
2)
Remove
the
cartridge
from
the
head
shell
as
described
in
the
section
"Replacing
the
cartridge””.
Attach
the
1/2”
cartridge
to
the
mounting
plate
with
the
aid
of
the
system
installation
gauge
and,
using
the
acces-
sories
enclosed
with
the
cartridge.
This
has
been
correctly
installed
if
the
tip
of
the
stylus
viewed
from
above
is
in
the
V-shaped
recess
of
the
system
installation
gauge.
Viewed
from
the
side,
the
stylus
must
be
in
the
area
of
the
rectangular
recess
(Fig.
9)
4)
Connect
the
connections
of
the
head
shell
to
the
connecting
pins
on
the
cartridge,
The
connections
are
color-coded
Red
R
right
channel
Green
RG
right
channel
ground
Blue
GL
left
channel
ground
White
L
left
channel
5)
When
fitting
the
mounting
plate
together
with
the
fitted
cartridge,
please
note
the
instructions
contained
in
section
titled
‘Replacing
the
cartridge”
6)
Depending
on
the
total
weight
of
the
cartridge
system,
screw
one
or
two
of
the
disc-shaped
additional
weights
(included
with
the
accessories)
onto
the
tonearm
counterweight
(1)
3
Avant
de
mettre
votre
platine
en
marche
pour
la
premiere
fois,
lisez
attentivement
cette
notice
d'emploi.
Cela
vous
évitera
de
commettre
des
erreurs
de
branchement
ou
de
commande
et
d'endommager
votre
appareil.
Les
éléments
de
commande
(1)
Contrepoids
du
bras
avec
antirésonateur
de
tuning
(2)
Vis
de
blocage
du
contrepoids
du
bras
de
pick-up
(3)
Supports
du
couvercle
(4)
Réglage
de
la
force
d'appui
du
bras
(5)
Réglage
de
la
vitesse
de
descente
du
bras
de
pick-up
(6)
Vis
d'ajustage
de
la
hauteur
du
bras
(7)
Réglage
d'antiskating
(8)
Vis
d'ajustage
du
point
de
pose
du
bras
(9)
Support
du
bras
avec
surface
d'appui
(10)
Réglage
de
la
vitesse
du
plateau
(11)
Vis
de
fixation
de
la
cellule
(12)
Poignée
du
bras
/
Verrouillage
de
la
tête
de
lecture
(13)
Touche
pour
lever
le
bras
4
et
descendre
le
bras
w
12
FRANCAIS
(|
O
Cartridge
:
Total
weight
«
Including
hardware
upto
6g
1
thin
disc
upto
7g
1
thick
disc
upto
9g
1
thick
disc
and
1
thin
disc
up
to
10g
2
thick
discs
Screw
the
smaller
thread
of
the
special
screw
into
the
coun-
terweight
(1).
With
the
bevelled
side
to
the
outside,
screw
the
corresponding
additional
weights
onto
the
thicker
part
of
the
screw.
Now
once
again
carefully
balance
the
tonearm
as
described
in
the
section
“Balancing
the
tonearm”
and
set
the
stylus
pressure
and
anti-skating
force
required
for
your
cartridge.
After
having
mounted
a
1/2
inch
cartridge
check
the
height
of
the
playing
needle
above
the
record
with
the
pick-up
arm
lift
in
position
a
also
check
that
the
needle
lowers
into
the
run-in
groove
of
the
record.
See
parts
"Cue
control
(Pause)”
(page
11)
and
‘Adjustment
of
tonearm
indexing”
(page
11)
Servicing
All
the
lubrication
points
have
sufficient
oil,
Thus,
your
unit
will
operate
impeccably
for
many
years
under
normal
condi-
tions,
Never
try
to
lubricate
any
of
the
lubrication
points
your.
self.
If
your
record
okayer
should
ever
need
servicing,
either
take
it
to
your
specialist
dealer
or
ask
him
for
the
address
of
the
nearest
authorized
Dual
Servicing
Workshop.
Please
make
sure
that
only
original
Dual
replacement
parts
are
used,
Should
the
unit
ever
be
dispatched,
make
sure
that
this
is
packed
perfectly,
if
possible,
by
using
the
original
packaging.
The
platter
The
balanced
full-size
aluminum
alloy
platter
lies
directly
on
the
motor
spindle
and,
when
placed
in
position,
is
automatically
fixed
through
its
own
weight.
Additional
locking
is
not
neces-
sary
and
is
also
not
provided
for
Important!
Remove
the
platter
before
transporting
the
unit!
Subsequent
transport
If
you
wish
to
transport
the
unit
long
distances,
we
recommend
that
the
cover
and
the
platter
be
removed.
The
counterweight
should
also
be
removed.
Screw
the
three
transport
safety
screws
back
in
position.
Ensure
that
the
tonearm
is
locked
and
the
stylus
cover
is
in
position.
Note:
After
each
transport,
the
unit
should
be
started
once
with
the
tonearm
locked
for
the
purpose
of
automatic
adjustment
of
the
automatic
shut
off
First
of
all
the
POWER
button
(21)
and
the
START
button
(15)
must
be
depressed
to
initiate
the
start
function
(refer
to
the
section
on
“operation’’)
Electrical
safety
The
unit
complies
with
the
International
Safety
Regulations
for
radio
and
related
devices
(IEC
65)
7
(14)
Touche
de
commande
de
l'arrêt
("Stop")
(15)
Touche
de
commande
du
démarrage
(“Start”)
(16)
Lecture
permanente
automatique
(17)
Affichage
opto-électronique
(18)
Touche
pour
l'enclenchement
de
l'accord
de
hauteur
du
son
(19)
Syntonisation
sonore
(20)
Stroboscope
lumineux
(21)
Interrupteur
secteur
Préparation
Déballage
et
mise
en
place
Retirez
l'appareil
et
ses
accessoires
de
l'emballage.
Enlevez
les
3
vis
assurant
la
sécurité
pendant
le
transport
et
qui
portent
une
rondelle
rouge
(Fig.
1).
Conservez
l'emballage
d'origine
et
ces
3
vis
pour
un
éventuel
transport
ultérieur
Posez
le
plateau
avec
précaution
sur
l'axe
du
moteur.
Glissez
la
pointe
du
contrepoids
dans
l'extrémité
arrière
du
bras
de
lecture
én
faisant
bien
attention
à
ce
que
la
rainure
en
V
de
l'axe
soit
bien
dirigée
vers
le
bas
(Fig.
2)
