6
INSTALLATION

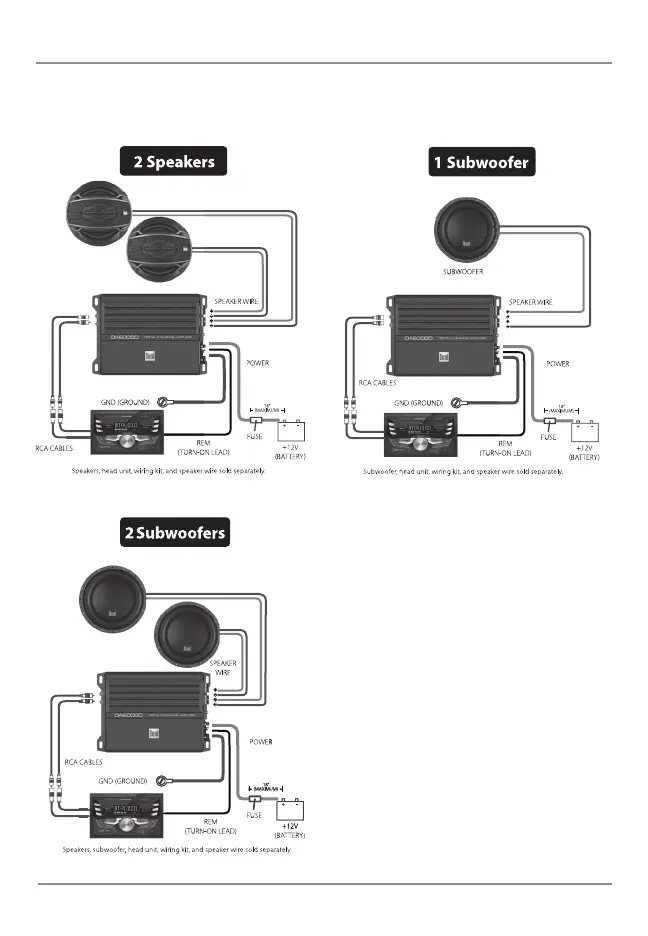

Typical Wire Routing
DA6002D
Main Power Connections
The illustrations on pages 6 and 7
demonstrate three different wiring
options for each unit. Once desired
configuration has been selected,
connect the +12V, GND and REM
wires accordingly. A suitable fuse
MUST be installed on the +12V lead
within 18" of the battery for protection
of the vehicle’s electrical system.
