8
Power supply
Maximum load current
Thermostat power consumption
Weight
Dimensions
IP rate
Protection class
Floor temperature sensor (TST02)
Sensor cold lead length
Ambient air temperature range
Maximum humidity
Temperature setting range
Color
230VAC, 60Hz
16A
450 mW
150 g
86x86x35 mm
IP21/IP31
II
NTC 6,8 kOhm
2 m
from +5°Ñ to +40°Ñ
80%
from +5°Ñ to +35°Ñ
White
TECHNICAL DATA
MENU STRUCTURE

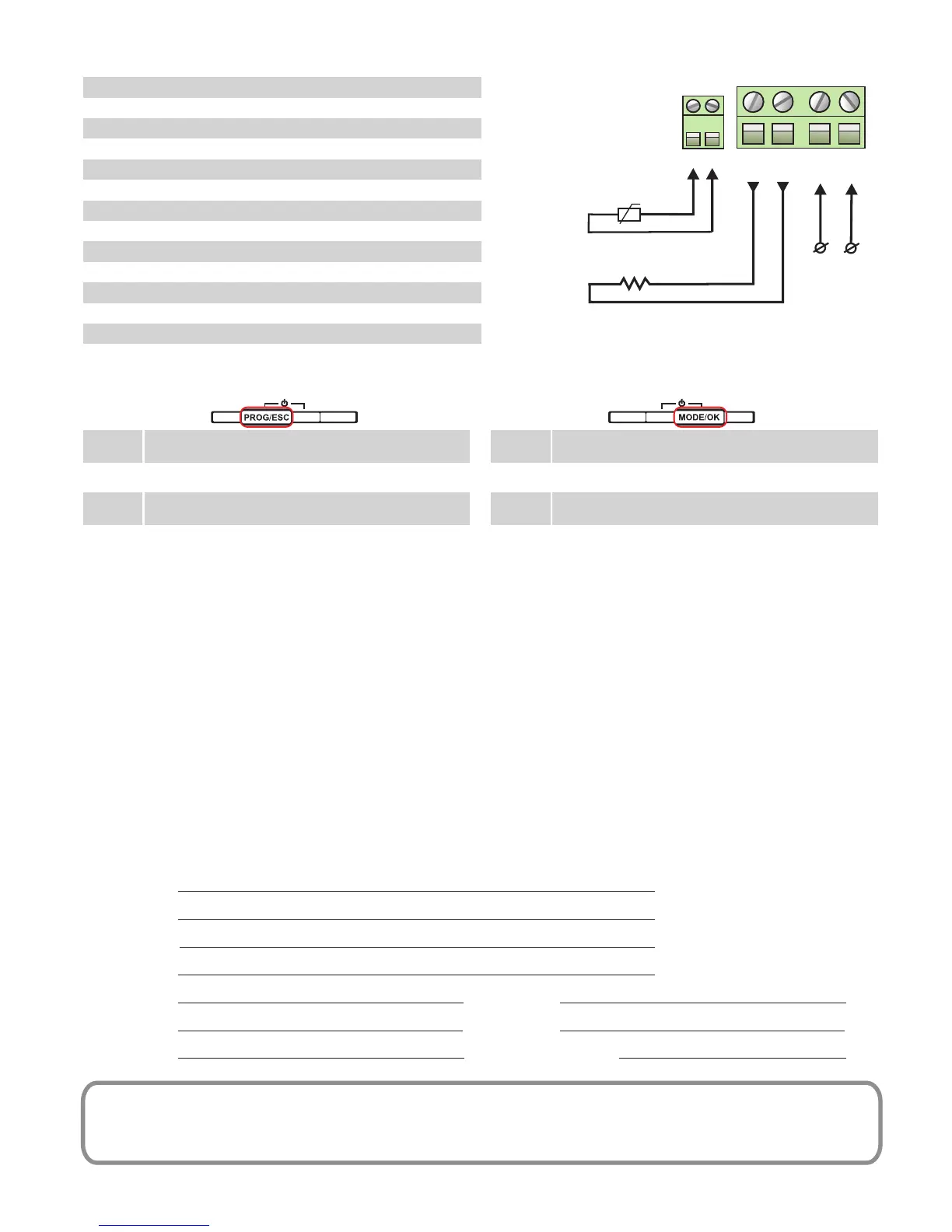

LINE DIAGRAM
PROG/ESC
MODE/OK
+
-
PROG/ESC
MODE/OK
+
-
1x
4 sec
8 sec
Exit without saving
Event time programming
Set date
1x
2 sec
4 sec
8 sec
Confirm settings
Screensaver selection
Operation mode selection
Set temperature
Sensor
t
230 VAC
1
3
L
2
4
N
5
N
6
L
Load (Heating)
The thermostat TP520 passed the test.
Name:
Street:
ZIP code, city:
Country:
Phone: E-Mail:
Date of purchase: Installer:
Installation date: Signature
installer:
Switch off power from all wiring before installing, testing or replacing the thermostat. Only qualified electricians are allowed to work on electrical
connections and the electric supply of the device. Otherwise the warranty invalidates. Only use plastic wall mounting boxes for the thermostat
installation.
The producer guarantees that the thermostat TP520 is free from defects caused by manufacturing techniques or by using of poor materials.
Warranty period – 2 years from date of purchase.
In case of a failure during the warranty period because of faulty manufacturing despite correct executed installation (according to manual) the
customer has the right to get the product repaired or replaced. The warranty does not cover any damages due to inadequate handling, damages
through third party fault, wrong installation (not following the manual) or its consequential damages. Please keep your receipt.
For any warranty claims you have to show your sales receipt.
In case of failure during the warranty period please contact the manufacturer service center or the regional authorized representative.
PRECAUTIONS
WARRANTY
CLAIMS
ACCEPTANCE TEST CERTIFICATE
