Ducati Panigale V4 R User Manual

Engine rpm indication
The instrument panel receives the engine rpm
information and displays it using a needle rev
counter.

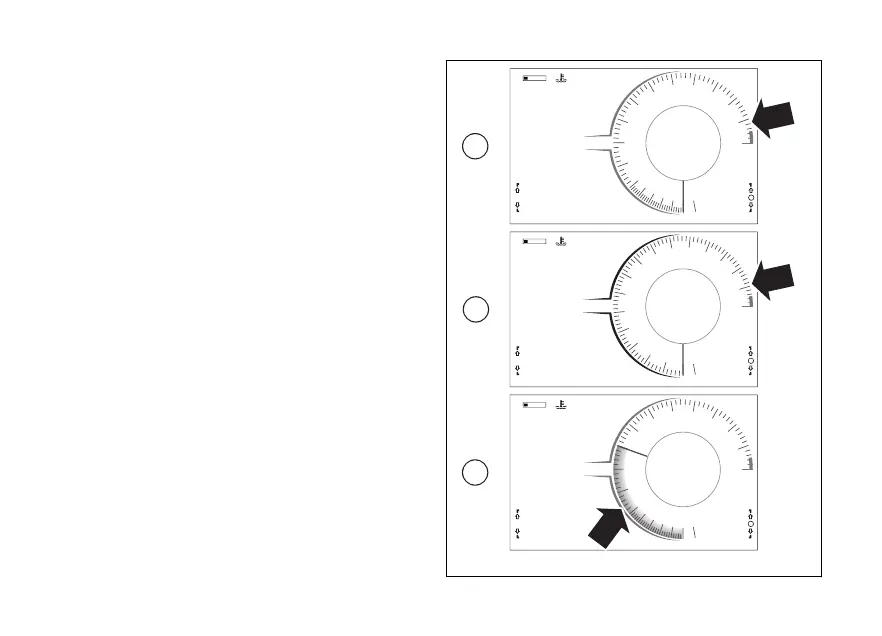

The rev counter is displayed in mode (A) in TRACK
view and is displayed in mode (B) in ROAD view.
The needle movement is followed by a grey wake in
DAY mode (C) and by a white wake in NIGHT mode.
When the wake becomes amber yellow and 
blinking, the instrument panel is warning the rider to
 up.
When the first threshold of the limiter is reached
(Over-rev), the wake becomes red and the warning
light 15 ( turns on. The red wake flashes when the
limiter (Over-rev) activates.
If the number of rpm is lower than 1000, the needle
wake is not displayed.
During the first 1000 km (620 mi) of the odometer
(vehicle break-in period), or up to the first service, a
 engine rpm limiter is set.
 the break-in period or  the first inspection,
the  limiter indicates and advises the rider to
ride at lower revs when the engine is cold.
0
11:34
A.M.
SPORT
RPM X 1000
Gear
km/h
N
10
11
9
8
6
7
5
4
3
2
1
12
13
14
15
17
16
DTC 2
DQS OFF
DWC 8
SETTING MENU
TRIP 1
TOT km
1245
0.0 km
LO HI
0
11:34
A.M.
RACE
RPM X 1000
Gear
km/h
N
11
12
13
14
15
16
17
10
9
5
6
7
8
4
3
2
1
DTC 2
DQS OFF
DWC 8
SETTING MENU
TRIP 1
TOT km
1245
0.0 km
LO HI
190
01’35.27
11:34
A.M.
RACE
RPM X 1000
Gear
km/h
Session 1 - Lap 1/30
4
11
12
13
14
15
16
17
10
9
5
6
7
8
4
3
2
1
DTC 2
DQS OFF
DWC 8
SETTING MENU
TRIP 1
TOT km
1245
0.0 km
LO HI
Lap Off
A
B
C
Fig 12
43

Ducati Panigale V4 R Specifications

General

Power	221 hp (162 kW) @ 15, 250 rpm
Transmission	6-speed with Ducati Quick Shift (DQS) up/down EVO 2
Frame	Aluminum alloy Front Frame
Rear Brake	245 mm disc, 2-piston caliper
Front Tire	120/70 ZR17
Rear Tire	200/60 ZR17
Warranty	24 months unlimited mileage
Maintenance Service Intervals	12, 000 km (7, 500 miles) / 12 months
Valve Clearance Check	24, 000 km (15, 000 miles)
Engine Type	4 valves per cylinder
Torque	83 lb-ft (112 Nm) @ 11, 500 rpm
Fuel Capacity	4.23 US gal (16.0 l)
Brakes	245mm disc
Front Suspension	Ohlins NPX 25/30 pressurized fork with TiN treatment, fully adjustable
Rear Suspension	Ohlins TTX36 shock, fully adjustable
Front Brake	Dual 330mm semi-floating discs, radially mounted Brembo Monobloc Stylema® (M4.30) 4-piston calipers
Wheels	Forged aluminum wheels
Safety Equipment	Ducati Traction Control (DTC), Ducati Slide Control (DSC), Ducati Wheelie Control (DWC), Engine Brake Control (EBC), Cornering ABS EVO
Standard Equipment	Ducati Power Launch (DPL), Ducati Quick Shift (DQS) up/down
Instrumentation	TFT color display
