5. Operation
5.1 Folding down left-hand half of table plate (MG 56-2 frame only)
When the special sewing machine is fitted with the
MG 56-2
frame the table plate
consists of two parts. The left-hand half 3 can be folded down to permit the
unobstructed manipulation of large items round the free arm.

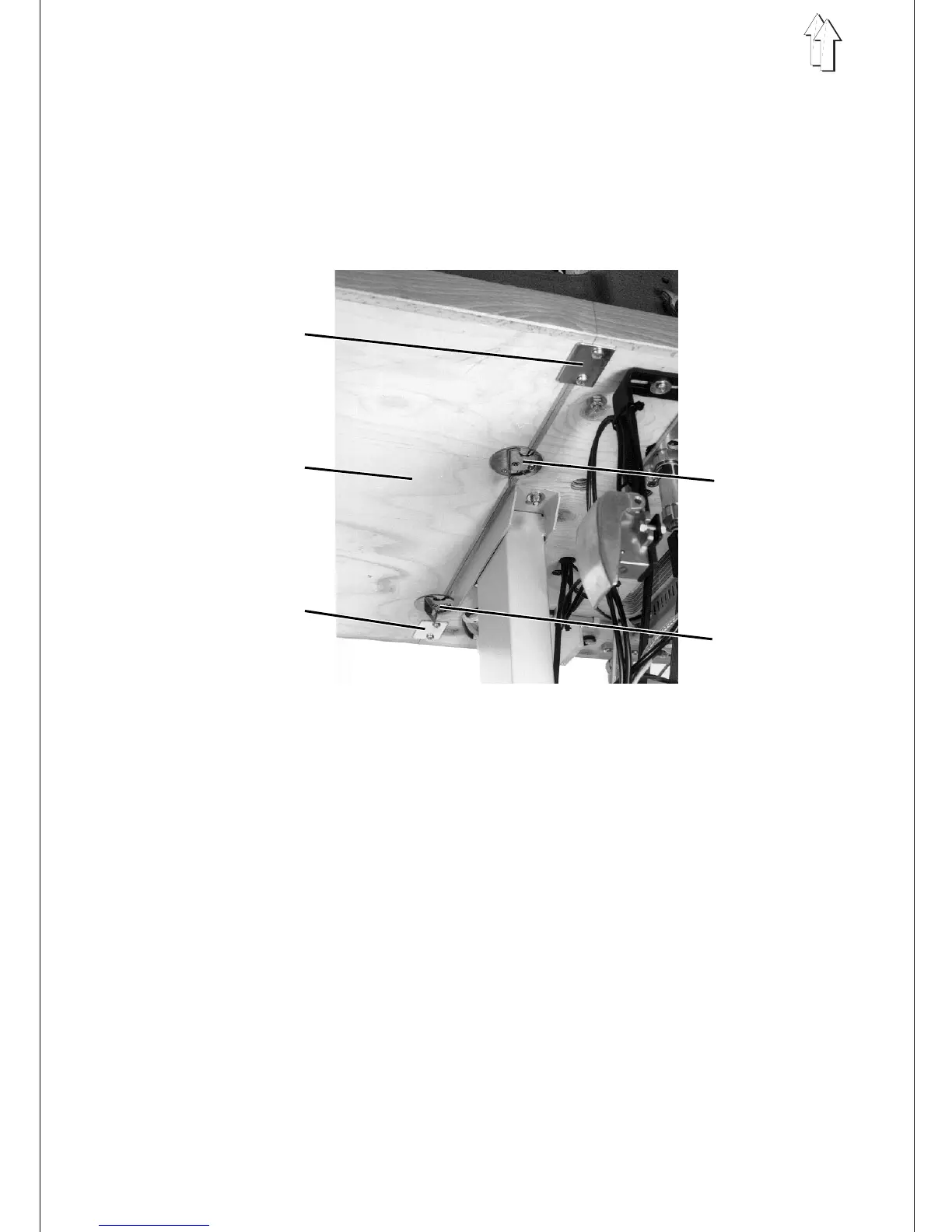

Folding down the left-hand half of the table plate
–
Turn fasteners 7 and 8 beneath the table plate anticlockwise to unlock the
left-hand half 3 of the table plate.
–
Fold the left-hand half 3 of the table plate down and to the left.
–
Hook shackle 1 onto the pin 2 of the left-hand frame upright.
Folding the left-hand half of the table plate back into place
–
Unhook shackle 1 from pin 2.
–
Lift the left-hand half 3 of the table plate, swivel it to the right and lower it onto
support plates 5 and 6.
The pins 4 in the right-hand half of the table plate must fit into the holes in the
left-hand half 3.
–
Turn fasteners 7 and 8 beneath the table plate clockwise to lock the left-hand
half 3 of the table plate.
7
8
5
3
6
9
