INSTALLATION
INSTALLING REMOTE RECEIVER
The remote receiver operates on four AA size
batteries (included). Use ALKALINE batteries
for longer battery life and maximum micropro-
cessor performance.
IMPORTANT: New or fully charged batter-
ies are essential for proper operation of
the remote receiver as the solenoid power
consumption is higher than standard remote
control systems.
Red and Black
Wires from
Receiver
Red and Black
Wires from
Solenoid
Valve
Receiver

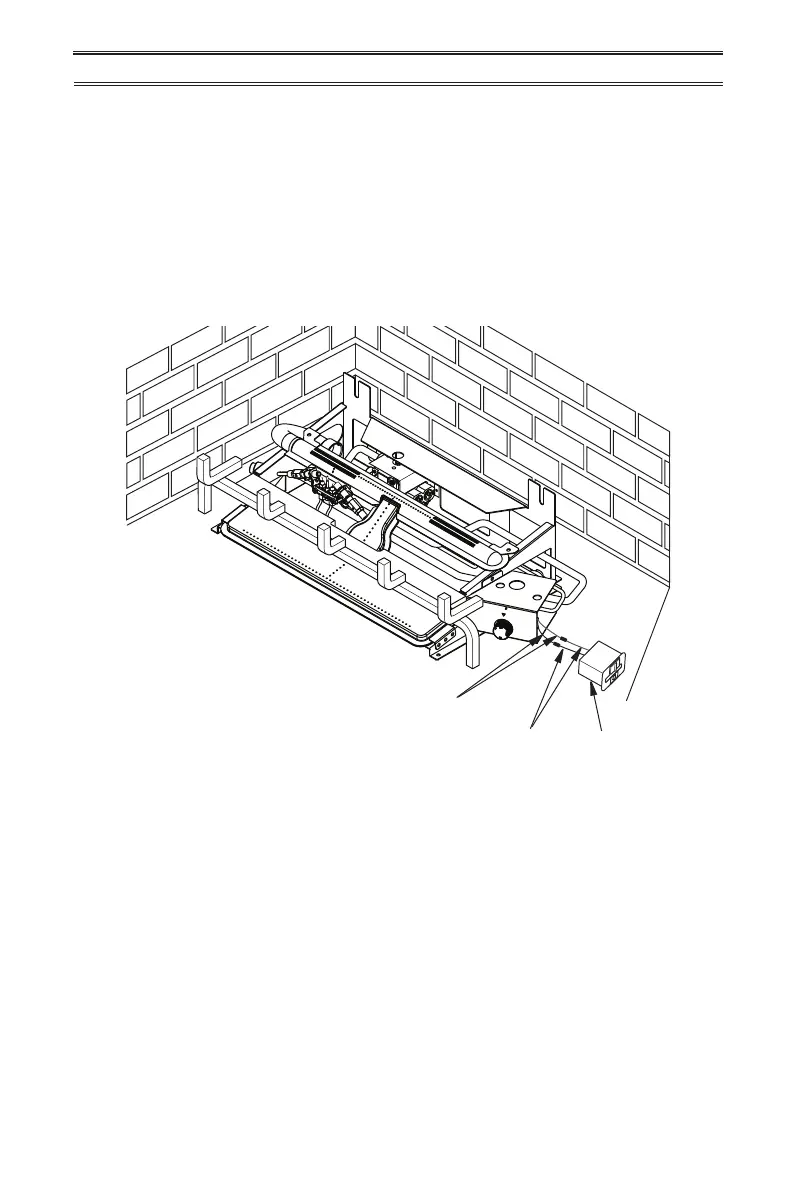

Figure 21 - Attaching Remote Receiver to Solenoid Valve
1. Remove battery cover on receiver as
shown on the box. Install four AA size
batteries into receiver, (see Figure 21).
2. Locate red and black wires from solenoid
valve on right side of heater. Connect
wires to receiver, red to red, black to black,
(see Figure 21).
3. Place receiver to the side of the log set,
(see Figure 21).
