PARTS
MODELS FDLR24/30-1
This list contains replaceable parts for your heater. When ordering replacement parts, follow
the instructions listed under Replacement Parts on page 31 of this manual.

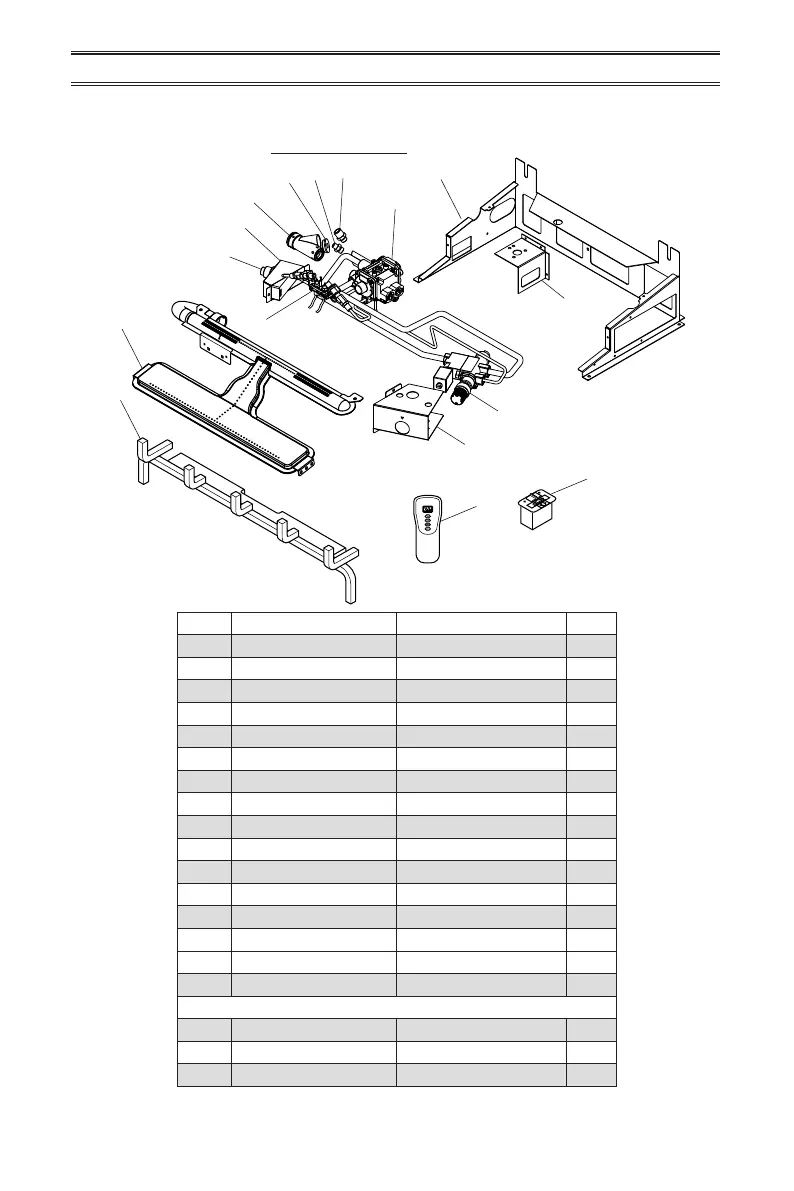

ITEM PART # DESCRIPTION QTY
1 ** Grate Assembly 1
2 ** Burner Assembly 1
3 PIMDN1-01 Ignitor 1
4 24EDC1002-01 Ignitor Bracket 1
5 RVD88-YJ “Y” Joint 1
6 QD250T133 Orice Retainer 1
7 NSNG-007 NG Orice 1
8 NSLP-007 LP Orice 1
9 ** Chassis Base 1
10 ** Regulator Bracket 1
11 RVD88-Y-4/9 Regulator 1
12 ND0310A-400-P-PU2 ODS Pilot 1
13 MRT-01 Control Valve 1
14 ** Control Valve Bracket 1
15 RG04-1M Receiver 1
16 RG04-1T Remote 1
PARTS AVAILABLE - NOT SHOWN
18UDC1013B-01 Hardware Packaging 1
GLEMB25 Embers 1
WZL039-01 Lava Rock 1
** Not a eld replaceable part.
REMOTE
OFF
ON
LEARN
TEMP
1
2
16
3
15
13
14
12
4
5
6
7
8
11
9
10
